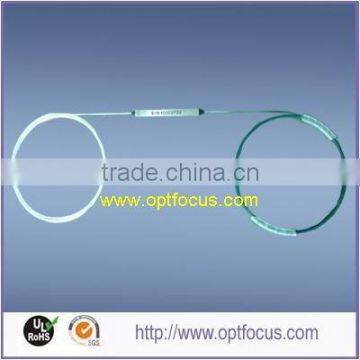

1*2PLC Fiber optical splitter
- 1000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OPTFOCUS | Model Number: | 1x2 PLC Fiber optical splitter |
Product Description
Specifications
1*2PLC Fiber optical splitter1.Low Insertionloss
2.Wide OperatingTemperature
3.Qualified Under Telcordia GR-1221 and GR-1209
Features
1.Low Insertionloss
2.Low PDL
3.HighReturnLoss
4.UniformPowerSplitting
5.CompactDesign
6.Wide Operating Wavelength
7.WideOperatingTemperature
8.ExcellentEnvironmental & Mechanical Stability
9.Qualified Under Telcordia GR-1221 and GR-1209
Applications
1.FTTX(FTTP,FTTH,FTTN,FTTC)
2.PassiveOpticalNetworks(PON)
3.LocalAreaNetworks(LAN)
4.CATV Systems
5.TestEquipments
Performance Specifications
Item | Unit | Parameter |
Operating Wavelength | nm | 1260~1650 |
Typ.InsertionLoss | dB | 4.0 |
Max.InsertionLoss | dB | 4.3 |
Max.Uniformity | dB | 0.5 |
Max.TDL | dB | 0.5 |
Max.PDL | dB | 0.2 |
Min.Return Loss | dB | 50 |
Min.Directivity | dB | 50 |
OperatingTemperature | °C | -40~+85 |
Storage Temperature | °C | -40~+85 |
Package Dimensions(L×W×H) | mm | 40×4×4 |
Note:All thedata above doesnotincludeconnectors.
1.Order Information
PLCS-Port-Fiber Type-Package Dimension-Input--Output-Pigtail Length-Connector Type
Port | 0101=1x1, 0102=1x2, ..., 0404=4x4, ..., 0132=1x32, 0232=2x32 |
Fiber Type | 1=G652D, 2=G 657A |
Package Dimension | A1, A2, …, F, K, U, X |
Input Fiber Type | L=900µm Loose tube, S=2.0mm, R=3.0mm, B=250µm Ribbon Fiber, 0=Adapter |
Output Fiber Type | L=900µm Loose tube, S=2.0mm, R=3.0mm, B=250µm Ribbon Fiber, 0=Adapter |
Pigtail Length | 05--20=0.5--2.0m, 0=Adapter, X=Others |
Connector Type | FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
2.Packaging Information
Items | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 |
Ribbon Fiber | A1 | A1 | A1 | A3 | A1 | A2 |
0.9 steel tube | A3 | A5 | A3 | A5 | A5 | A5 |
0.9 plastic case | D/E | E | ||||
2.0 plastic case | D/E | E | ||||
3.0 plastic case | D/E | E | ||||
19’’ Rack Mount | XU | |||||
Items | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 |
Ribbon Fiber | A3 | A5 | A4 | A7 | A6 | |
0.9 steel tube | A8 | A9 | A10 | A11 | ||
0.9 plastic case | K | F | ||||
2.0 plastic case | K | F | ||||
3.0 plastic case | F | / | ||||
19’’ Rack Mount | XU/XG |
3.Package Dimensions (mm)
A1 | 40x4x4 steel tube | A10 | 90x20x6 steel tube |
A2 | 45x4x4 steel tube | A11 | 100x40x6 steel tube |
A3 | 45x4.5x4 steel tube | D | 90x20x9.5 plastic case |
A4 | 50x7x4 steel tube | E | 100x80x10 plastic case |
A5 | 60x7x4 steel tube | F | 141x115x18 plastic case |
A6 | 60x12x4 steel tube | K | 120x80x18 plastic case |
A7 | 65x7x4 steel tube | XU | 1,2,3,4U 19’’ Rack Mount |
A8 | 80x12x4 steel tube | XG | 1,2,3,4U LGX’ Metal Rack Mount |
A9 | 80x20x6 steel tube | X | Custom Specifies |
