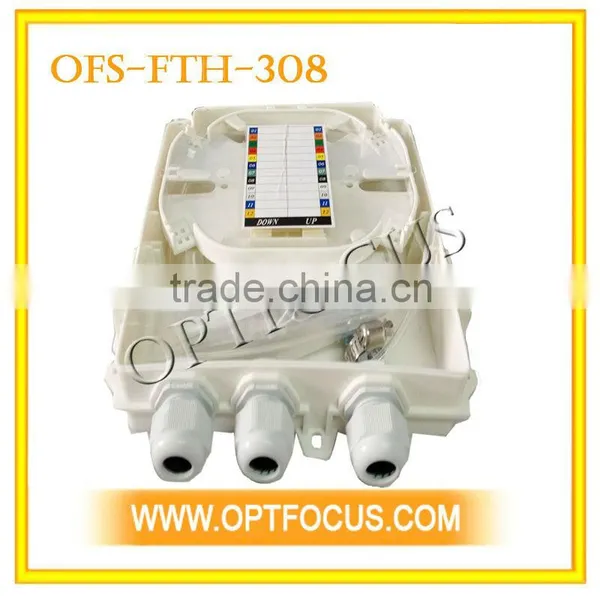

PLC Splitter-FDB Box

PLC Splitter-FDB Box thumbnail-1
PLC Splitter-FDB Box photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Optfocus
Model Number:
OFS-FTH-308
Contact Supplier Request Quote Chat Now
Shenzhen Optfocus Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Optfocus
Model Number OFS-FTH-308

Specifications

PLC splitter :
Optional Connectors: SC,LC,FC,with APC/UPC
Optional Fiber:G652,G657 with the OD:2.0/3.0 mm

Parameter

Specification

Operating Wavelength(nm)



Type

1×2

1×4

1×8

1×16

1×32

1×64

2×2

2×4

2×8

2×16

2×32

2×64

Insertion Loss(dB) Max*

<4.0

<7.3

<10.8

<14.0

<17.0

<21.5

<4.2

<7.6

<11.2

<14.5

<18.2

<22

Uniformity (dB) Max*

<0.6

<0.8

<1.0

<1.5

<2.0

<2.5

<0.8

<1.2

<1.5

<2.0

<2.5

<3.0

PDL(dB) Max*

<0.2

<0.2

<0.2

<0.3

<0.3

<0.4

<0.3

<0.3

<0.3

<0.4

<0.4

<0.4

Directivity(dB) Min*

55

Return Loss(dB) Min*

55(50)

Oprating Temperature(°C)

-40~+85

Storage Temperature(°C)

-40~+85

Fiber length

1m or custom length

Fiber Type

Corning SMF-28e fiber

Connetor Type

Custom specified

Power Handling(mW)

300





Specifications

1. optical splitter
2. 1260~1650nm wavelength
3. PLC Splitter
4. Wall mounted PLC splitter

wall mounted PLC Splitter termial box

the internal PLC Splitter part can take out seperate , easy operation.



Key Features

Low insertion loss and low PDL

Compact design

High reliability and excellent uniformity

High channel counts(1x2/1x4/1x8/1x16/1x32/1x64/2x4/2x8/2x16/2x32/2x64)

Wide wavelength range: 1260~1650nm

Corning SMF-28e or custom specified

Large operating temperature range: -40~85 ºC

Customized packaging and configuration



Applications

LAN, WAN and Metro Networks

Analog/Digital Passive Optical Networks (PON)

Cable Television (CATV)

Fiber to the Point Systems(FTTX)

Fiber to the Home(FTTH)

Test Equipment



Availabilities

1. Channel quantity: 1X2, 1X4, 1X8, 1X 16

 2. Input/output connector type: FC/UPC, SC/UPC, LC/UPC, SC/APC, FC/APC; customized; none

3. Input/output fiber type: φ0.9mm, loose tube

4. Input/output fiber length: 1m, 1.5m, or customized (no longer than 2m)



PLC Splitter Type:

Fan-out PLC splitter

Bare PLC splitter

Blockless PLC splitter

PLC Splitter Module/Box Type

19’’ Rack PLC splitter

Outdoor PLC Splitter
