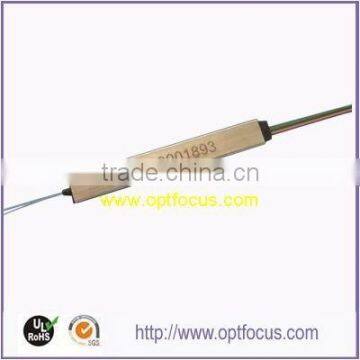

Help CenterPLC Splitter 2*8
Related Products
-
1*2 sm Single Window Fiber Optic CouplerUS$ 10 - 100MOQ: 10 Pieces -
SM Tree and Star CouplersNegotiableMOQ: 20 Pieces
-
1*8 sm Dual Window Fiber Optic Coulper/fiber Optic Splitter/plc SplitterUS$ 10 - 100MOQ: 50 Pieces
-
1*2 Multimode Standard Fiber Optic Coupler/coupler/optical SplitterUS$ 3 - 12MOQ: 10 Pieces
-
Hdmi Splitter to Coaxial in Optical FiberNegotiableMOQ: 1 Piece
Specifications
PLC Splitter 2*81.LowInsertionloss
2.Low PDL
3.HighReturnLoss
Features
1.LowInsertionloss
2.Low PDL
3.HighReturnLoss
4.UniformPowerSplitting
5.CompactDesign
6.Wide Operating Wavelength
7.WideOperatingTemperature
8.ExcellentEnvironmental & Mechanical Stability
9.Qualified Under Telcordia GR-1221 and GR-1209
Applications
1.FTTX(FTTP,FTTH,FTTN,FTTC)
2.PassiveOpticalNetworks(PON)
3.LocalAreaNetworks(LAN)
4.CATV Systems
5.TestEquipments
Performance Specifications
Item |
Unit |
Parameter |
Operating Wavelength |
nm |
1260~1650 |
Typ.InsertionLoss |
dB |
10.5 |
Max.InsertionLoss |
dB |
11.0 |
Max.Uniformity |
dB |
1.3 |
Max.TDL |
dB |
0.5 |
Max.PDL |
dB |
0.4 |
Min.Return Loss |
dB |
50 |
Min.Directivity |
dB |
50 |
OperatingTemperature |
°C |
-40~+85 |
Storage Temperature |
°C |
-40~+85 |
Package Dimensions(L×W×H) |
mm |
45×4×4 |
Note:All thedata above doesnotincludeconnectors.
1.Order Information
PLCS-Port-Fiber Type-Package Dimension-Input--Output-Pigtail Length-Connector Type
Port |
0101=1x1, 0102=1x2, ..., 0404=4x4, ..., 0132=1x32, 0232=2x32 |
Fiber Type |
1=G652D, 2=G 657A |
Package Dimension |
A1, A2, …, F, K, U, X |
Input Fiber Type |
L=900µm Loose tube, S=2.0mm, R=3.0mm, B=250µm Ribbon Fiber, 0=Adapter |
Output Fiber Type |
L=900µm Loose tube, S=2.0mm, R=3.0mm, B=250µm Ribbon Fiber, 0=Adapter |
Pigtail Length |
05--20=0.5--2.0m, 0=Adapter, X=Others |
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
2.Packaging Information
Items |
1x2 |
2x2 |
1x4 |
2x4 |
1x8 |
2x8 |
Ribbon Fiber |
A1 |
A1 |
A1 |
A3 |
A1 |
A2 |
0.9 steel tube |
A3 |
A5 |
A3 |
A5 |
A5 |
A5 |
0.9 plastic case |
D/E |
E |
||||
2.0 plastic case |
D/E |
E |
||||
3.0 plastic case |
D/E |
E |
||||
19’’ Rack Mount |
XU |
|||||
Items |
1x16 |
2x16 |
1x32 |
2x32 |
1x64 |
2x64 |
Ribbon Fiber |
A3 |
A5 |
A4 |
A7 |
A6 |
|
0.9 steel tube |
A8 |
A9 |
A10 |
A11 |
||
0.9 plastic case |
K |
F |
||||
2.0 plastic case |
K |
F |
||||
3.0 plastic case |
F |
/ |
||||
19’’ Rack Mount |
XU/XG |
|||||
3.Package Dimensions (mm)
A1 |
40x4x4 steel tube |
A10 |
90x20x6 steel tube |
A2 |
45x4x4 steel tube |
A11 |
100x40x6 steel tube |
A3 |
45x4.5x4 steel tube |
D |
90x20x9.5 plastic case |
A4 |
50x7x4 steel tube |
E |
100x80x10 plastic case |
A5 |
60x7x4 steel tube |
F |
141x115x18 plastic case |
A6 |
60x12x4 steel tube |
K |
120x80x18 plastic case |
A7 |
65x7x4 steel tube |
XU |
1,2,3,4U 19’’ Rack Mount |
A8 |
80x12x4 steel tube |
XG |
1,2,3,4U LGX’ Metal Rack Mount |
A9 |
80x20x6 steel tube |
X |
Custom Specifies |
