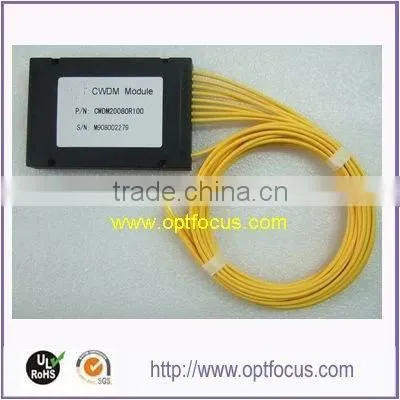

Help Center8CH CWDM Mux/demux
Related Products
Specifications
8 channel CWDM1.Low insertion loss
2.Wide pass band
3.High channel isolation
Features
1.Low insertion los
2.Wide pass band
3.High channel isolation
4.High stability and reliability
5.Epoxy free on optical path
Applications
1.Line monitoring
2.WDM network
3.Telecommunication
4.Cellular Application
5.Fiber optical amplifier
Performance Specifications
Parameter |
MUX |
DEMUX |
|||
Operating Wavelength (nm) |
1260 to 1620 |
||||
Center Wavelength Accuracy (nm) |
± 0.5 |
||||
Channel Spacing (GHz) |
20nm |
||||
Channel Passband (@-0.5dB bandwidth) Min.(nm) |
>13 |
||||
Insertion Loss (dB) |
< 2.5 |
||||
Channel Uniformity (dB) |
< 1.0 |
||||
Channel Ripple (dB) |
< 0.3 |
||||
Isolation (dB) |
Adjacent |
>30 |
|||
Non-adjacent |
>40 |
||||
Insertion Loss Temperature Sensitivity (dB/°C ) |
<0.003 |
||||
Wavelength Temperature Shifting (nm/ °C ) |
<0.002 |
||||
Polarization Dependent Loss (dB) |
<0.10 |
||||
Polarization Mode Dispersion (ps) |
<0.10 |
||||
Directivity (dB) |
>50 |
||||
Return Loss (dB) |
>45 |
||||
Maximum Power Handling (mW) |
300 |
||||
Operating Temperature (°C) |
-5 ~+65 |
||||
Storage Temperature (°C) |
-40 ~+85 |
||||
Package Dimension (mm) |
L120 x W80 x H18 or 19' 1U Rack Mount |
||||
Specifications may change without notice
1.Order Information
CWDM-Configuration-Transmission Characteristic-EXP Port-Channel-First Channel-Fiber Type -Package Dimension-Pigtail Type-Pigtail Length-Connector Type
Configuration |
M=Mux, D=DeMux, M&D=Mux&DeMux |
Transmission Characteristic |
1=1 Fiber, 2=2 Fibers |
EXP Port |
E=Yes, 0=None |
Channel |
02=2 Channels, 04=4 Channels, 08=8 Channels, 16=16 Channels, 18=18 Channels |
First Channel |
1270(1), 1290(1), …, 1590(1), 1610(1) |
Fiber Type |
1=G652D, 2=G657A |
Package Dimension |
C, …, F, K, G, H, U |
Pigtail Type |
L=900µm Loose tube, S=2.0mm, R=3.0mm, B=250µm Ribbon Fiber, 0=Adapter |
Pigtail Length |
05--20=0.5--2.0m, 0=Adapter, X=Others |
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
2.Packaging Information
1 CH |
2/4 CH |
8 CH |
16/18 CH |
C |
E/L/XG/XU |
K/L/XG/XU |
F/L/H/XG/XU |
D |
3.Package Dimensions (mm)
C |
5.5x38 steel tube |
F |
141x115x18 plastic case |
D |
90x20x9.5 plastic case |
K |
120x80x18 plastic case |
E |
100x80x10 plastic case |
L |
150x115x13 metal box |
H |
150x115x18 metal box |
XU |
19’’=1,2,3,4 U Rack Mount |
XG |
1,2,3,4 U LGX Rack Mount |
X |
Custom Specifies |
