Specifications

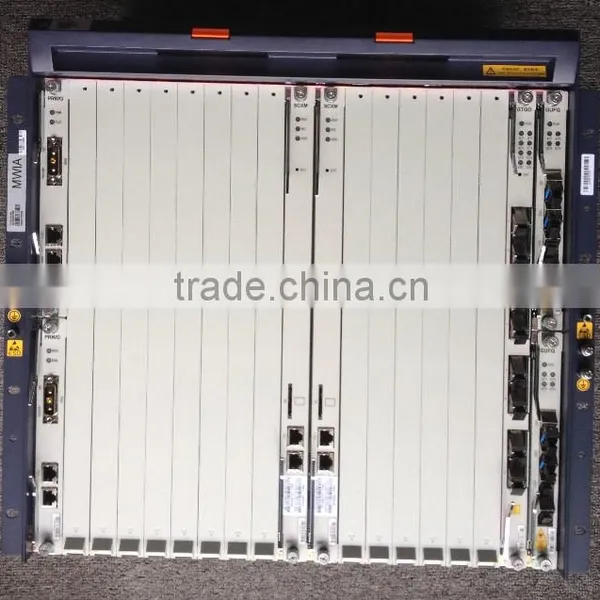

GPON OLTspecification:
1)inculding 2 power cards, the model is PRWG.
2)One uplink cards, the model is GUFQ
3)including 2pcs module .
4)Exchange control boards, 2 pieces, the model is SCXM.
5)1 piece 8-port GPON card, the model number is GTGO, including 8 modules(bidi 20KM SC Class B+).
6)Two black power cables; an RJ-45 first turn 9-pin RS-232 female network cable; one RJ-45 cable
ZXA10 C300 Datasheet
ll rights reserved
In the face of increasing demands for high bandwidth and multi-play services, operators have to make a balance between economy and mass roll-out. How to smoothly evolve from FTTC, FTTB and FTTCab to FTTH is a challenge in front of telcos nowadays. Operators are considering building a PON network that is green, futureproof and saves TCO.
Key Features Technical Specifications
All rights reserved
• Subscriber Card Density
_ GPON card: 8 ports per card
_ EPON card: 8 ports per card
_ P2P card: 16 ports per card
_ 10G EPON card: 4 ports per card
• Uplink interface card
_ 4*10GE uplink per card
_ 4*GE uplink per card
_ 1*STM-4/OC12 or 2*STM-1/OC3 TDM Uplink per card
_ 32* E1/T1 uplink card (balanced and Unbalanced)
• Environment monitoring card
_ 2 * Hz/Bit external clock interfaces
_ 5 * Environment monitoring interfaces
_ PON Features
• EPON compliant with IEEE 802.3ah
• GPON compliant with ITU G.984.x
• 10GEPON compliant with IEEE 802.3v
• Support up to 1:128 optical split ratio for GPON, 1:64 optical split ratio for EPON and 1:256 optical split ratios for 10GEPON
• Support OLS (Optical Laser Supervising)
• Physical reach: 20~60km
• Highly-efficient DBA: NSR-DBA, SR-DBA
• 1PPS+TOD, IEEE 1588V2
• Transceiver power: Class B+ or class C+
• Type B and type C optical link protection
• FEC
• AES128
• SCB
_ L2/L3 Features
• 1:1/N: 1 VLAN
• 802.1ad, SVLAN, Selective QinQ, VLAN Stacking
• Line-speed forwarding
• STP/RSTP/MSTP compliant with IEEE802.1d/802.1w/802.1s
• Link aggregation IEEE 802.3ad
• DHCP server, DHCP Relay (option 60/82), DHCP proxy
• L3 routing:
• RMON II
• Multicast – IPTV
• QoS
• Queue & scheduling mechanism: SP,DWRR, SP+DWRR
• IPv4 DSCP Diffserv
• Stream classification, rate limiting, Shaping and priority setting
ZTE Multi-Service Access SolutioConpyright ZTE. All rights reserved
• Traffic statistics
• Service based rate limit
• WRED and triple color
• SLA: CIR, PIR, EIR, MBS
• Security
_ L2- L4 ACL
_ IEEE 802.1x subscriber authentication
_ IP and MAC source guard
_ Resistance against DOS attacks
_ MAC/IP anti-spoofing (MAC binding,IP binding, DHCP snooping)
_ Anti-flooding: broadcast packet Suppression, IGMP packet,Suppression, DHCP packet Suppression
_ MAC address number limit based on VLAN or GEM-port
_ Port mirroring
_ User port identification such as PPPOE+ and DHCP Option 82
_ O&M
• Operator security, Multi-privileged operator, SSH v1/v2, FTP/TFTP, ACL
• Management protocol and interface: CLI, Telnet, SNMP V1/V2C/V3, MIBII
• Remote firmware downloads and upgrade
• Environment monitoring, control and alarm
• Performance statistics
• Over-heat protection
_ Environment
• Operating temperature: -5 ºC ~ +45 ºC
• Operating humidity: 5% ~ 95%, noncondensing
_ Dimensions
• 449.2mm (H) * 535mm (W) * 270mm (D) (21 inch shelf)
• 443.7mm (H) * 482.6mm (W) * 270mm (D) (19 inch shelf)
• 2200 mm (H) x 600 mm (W) x 300 mm ((D) (Rack)
_ Weight
• 60kg (Empty rack for 19inch and 21 inch)
• 175kg (19 inch rack)
• 183kg (21 inch Rack)
• Working voltage: -48 V (±20%) or 220V AC(±20%, 50Hz)
_ Power Consumption
• GPON
: 1400W (21 inch rack')
: 1250W (19 inch rack')
• EPON
: 750W (21 inch rack')
: 680W (19 inch rack')
• 10G EPON
: 1250W (21 inch rack')
: 1130W (19 inch rack')
