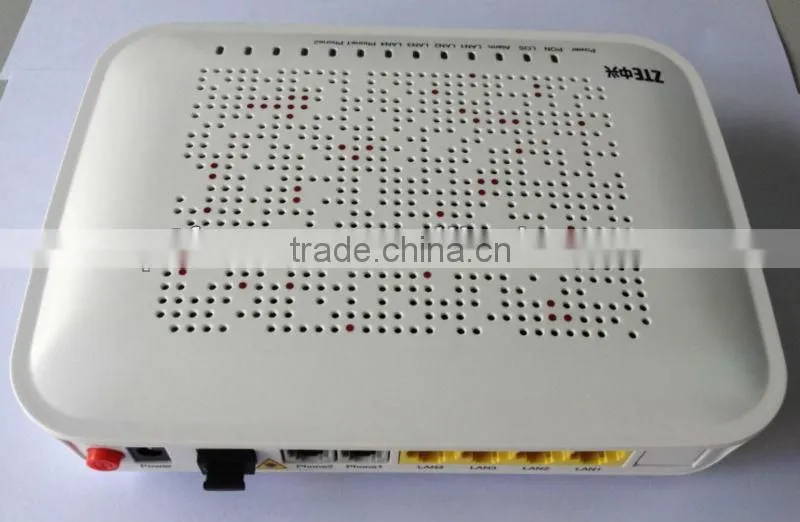

Help Center4 Port Lan and 2 Phone Port ZTE & Fiberhome EPON ONU
Related Products
-
Full Range of GPON ONU | ONT F620 Gpon OnuNegotiableMOQ: 1 Piece -
GPON Optical Network ONU With 4 Ethernet Ports and 2 Voice Ports Apply to FTTH ModeNegotiableMOQ: 1 Piece
-
ZXA10 F620 GPON Optical Network ONU With 4 Ethernet Ports and 2 Voice Ports, New White Version.US$ 55 - 65MOQ: 5 Pieces
-
GPON ONU F620 5.0VersionUS$ 53 - 60MOQ: 5 Pieces
-
GPON ONT F620US$ 52 - 60MOQ: 5 Pieces
Specifications
SpecificationsF620Original & New ZTE EPONEnglish firmware, interface
EU, UK, US,Power adapter
Specifications
Original & New EPON
English firmware, interface
EU, UK, US,Power adapter
Ready Stock
English Interface, EU, UK, US, AU, Korean, Power Adapter
Further information, please kinldy contact us!
EPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario. It provides
subscriber with rich, colorful, individualized, convenient and comfortable triple-play services including video (IPTV), voice, wireless access, convenient network storage services and high speed internet access. It has a small, smart appearance and
green, energy-saving advantage. Using TR069 and OAM protocol, O&M cost can be reduced effectively by supporting remote service provisioning, intelligent fault diagnosis and performance statistic functions.
General Specifications
Standards:
IEEE 802.3ah,IEEE 802.3,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1P,IEEE 802.3x
Network Interface:
EPON Interface: 1 * EPON interface (SC/PC), Transmission Rate: 1.25Gbps upstream and downstream
User Interface:
LAN: 4*10/100 Base-T interfaces with RJ-45 connector
Voice: 2*POTS interfaces with RJ-11 connector
WLAN: 1*WLAN Interface
USB: 2*USB 2.0 host Interfaces
Features:
1000BASE-PX20+ optical Interface
MPCP (Muti-Point Control Protocol)
OAM and extended OAM
DBA (Dynamically Bandwidth Assignment)
MAC address/LOID (Logical ONU Identifier) authentication
IGMP snooping and controllable multicast
Layer3 routing function
Loop back detection
Dying Gasp alarm
SIP,H.248 and MGCP
G.711/G.723.1/G.729A and T.30/T.38
802.11g/802.11b/Mixed work mode
WPS and Multi SSID function
Local WEB management, Remote TR069 and OAM management
Physical and Environmental Specifications:
Power Consumption: 10W
Power Supply: 12V DC
Operating Temperature: -5 ~ 45°C
Humidity: 5 ~ 95% relative humidity
Dimensions: (W×H×D) 220mm×40mm×165mm
Net Weight: 0.6kg
Installation: wall-mounting/desktop
