1GE GPON SFU SFP Module

Name: 1GE GPON SFU SFP Module
Brand: OPTFOCUS
SKU: 107910753

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

OPTFOCUS

Model Number:

OFS-U151S

Contact Supplier Request Quote Chat Now

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name OPTFOCUS

Model Number OFS-U151S

OPTFOCUS OFS-U151S

1GE GPON SFU SFP module

Description

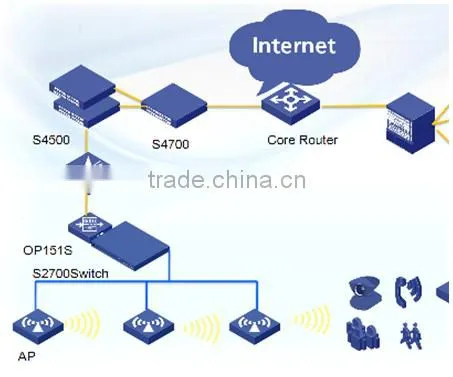

OFS-U151S GPON SFU module is a new terminal mode for GPON solution, which is a variety of FTTB FTTH FTTO accessing ONT published by ZISA for carrier-grade FTTH network applications. It can be plug into L2 Ethernet Switch SFP Slot to work as ONT or even MDU. OFS-U151S supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet carrier-grade FTTBFTTHFTTO equipment requirement. The ISP customer need not change the original FTTB Access Switch but just need OFS-U151S to replace the uplink SFP, so that the whole solution can be replace from Active Fiber Networks to GPON solution, which protect your former investment.

Specifications

l 1*GPON uplink port

l SFU Module design

l ONU/MDU uplink

Performance

Attributes	OFS-U151S
Outline dimensions (mm) (WDH)	85mm15mm12mm
Weight (in maximum configuration)	≤0.2kg
Environmental requirements	Working temperature:0ºC~50ºC Storage temperature:-40ºC~70ºC Working humidity:5%~90% Storage temperature:5%~95% no condensing
Ethernet	Standard	IEEE802.3 IEEE802.3au IEEE802.3x
	Interface	1 10/100/1000BASE-T RJ45 Auto negotiation Auto MDI/MDIX
GPON	Speed	Downlink:2.488Gbps Uplink:1.244Gbps
	Connector	SC/APC, pigtail
	Standard	ITU-T G.984.2 , Class B+
	Power level	Downlink – Wavelength:1490nm – Sensitivity:-28dBm – Saturation:-8dBm Uplink – Wavelength:1310nm – TX power:0.5 ~ 5dBm
	Fiber	G.652 Single Mode Fiber
