for 164/264 Mini Module Type PLC , Dome Fiber Optic Closure

Name: for 1*64/2*64 Mini Module Type PLC , Dome Fiber Optic Closure
Brand: Optfocus
SKU: 107910503
Availability: InStock

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Optfocus

Model Number:

OFS-FTH-513

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhn

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Optfocus

Model Number OFS-FTH-513

Specifications

Easy and fast to increase and reduce FOSTs
Lay adapters suit for FTTH and easy to operrate

Advanced internal structure design
Easy to re-enter,it never requires re-entry tool kit.
Teh closure is spacious enough for winding and storing fibers
Fiber Optic Splice Trays(FOSTs) are designed in SLIDE-IN-LOCK and its opening angle is about 90^o
The curved diameter meets with international standard
Easy and fast to increase and reduce FOSTs
Straight-through for uncutting and branching for cut
Lay adapters suit for FTTH and easy to operate

Applications

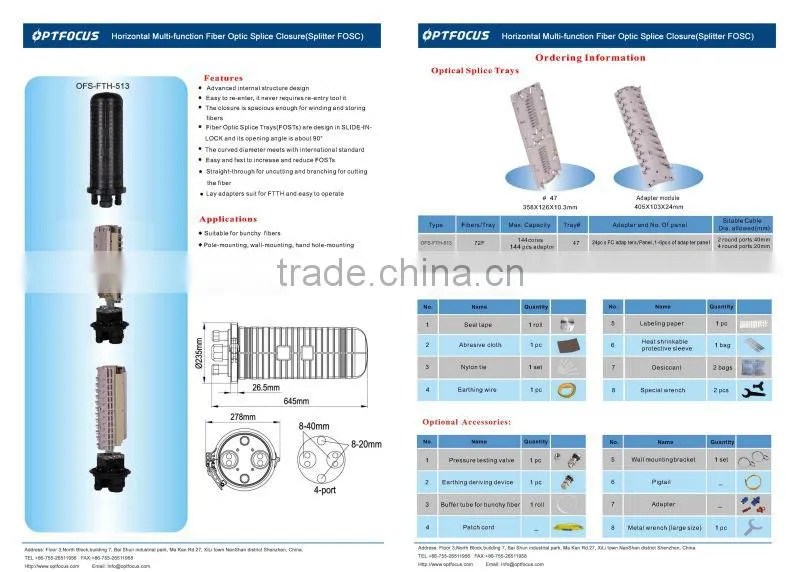

OFS-FTH-513 Fiber Optic Splice Closure Datasheet

Model No.

Size (mm) W×H

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Adapter and holes of Front Panel

OFS-FTH-513

645x Ø 278

144

2×Ø40

4×Ø20

F adapters:144PCS

Remarks:

Installation accessories provided: one set of elastic seal fitting, seal tape, insulation tape, 2 pieces of special wrenches, abrasive cloth, earthing wire, nylon ties, labeling paper, measuring paper and desiccant.
Accessories by customers’ selection: earthing device, buffer pipe for bunchy fiber, pressure testing valve, adapter panel, adapter, pigtail, patchcord, wall-mounting bracket and pole mounting bracket.
