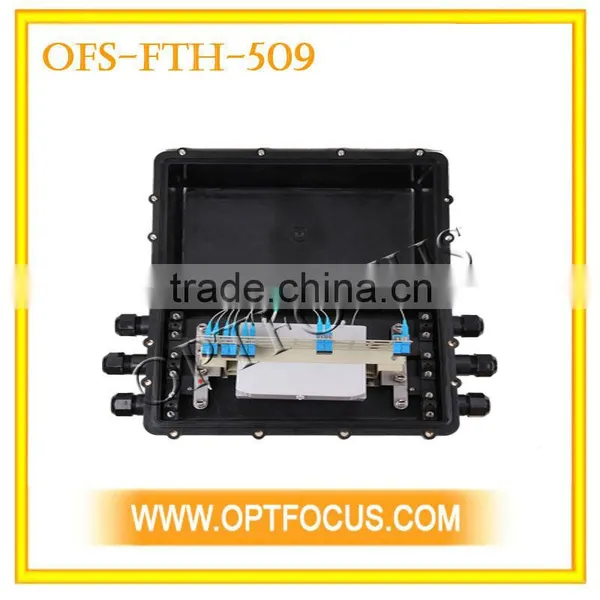

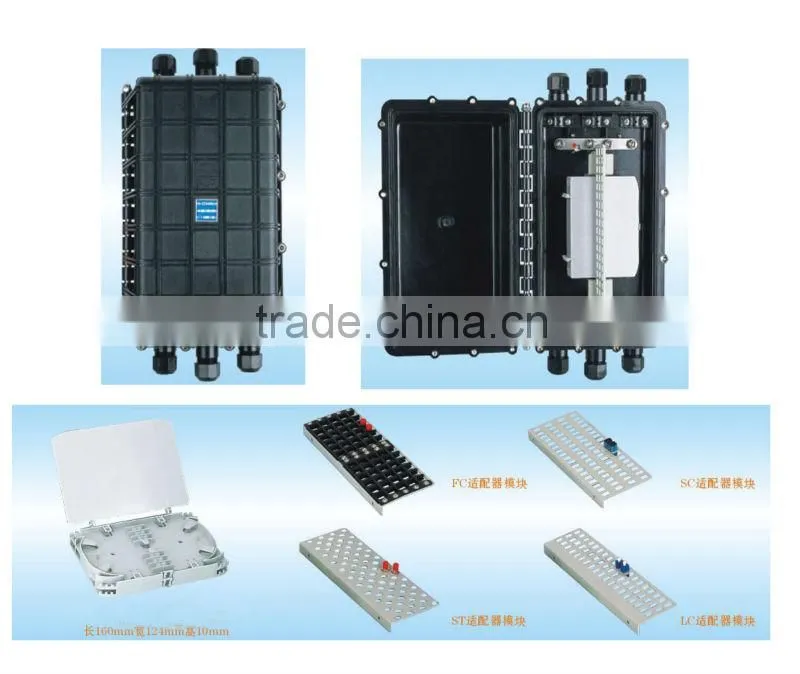

120 Core Fiber Horizontal Splice Closure.
Specifications
Easy and fast to increase and reduce FOSTsLay adapters suit for FTTH and easy to operrate
OFS-FTH-509
Features:
- Convenient to increase or reduce trays/ cassette for capacity requirement
- Improved reinforce rebar on the body of closure make excellent performance under impact, pulling, tension etc
- Spacious place for storing and maintenance
- adapter plug-in fits a variety of adapters such as SC, FC, LC (duplex).
- Can be used from 40 °C to +65°C temperature range
- Integrated seal, air tight and water proof, flame-retarded
- Suitable for aerial, wall, underground duct or direct burial applications
OFS-FTH-509 Fiber Optic Splice Closure Datasheet
Model No. |
Size (mm) L×W×H |
Core capacity |
Cable Ports (max) |
Max diameter of cable (mm) |
Adapter and holes of Front Panel |
OFS-FTH-509 |
490x252x192 |
120 |
6 |
6ר22 |
FC adapters:60PCS |
SC adapters:72PCS | |||||
ST adapters:77PCS | |||||
LC adapters:76PCS |
Remarks:
- Installation accessories provided with the FOSC: 3 pieces of special wrenches, abrasive cloth, earthing wire, nylon ties, labeling paper, desiccant,6 elastic seal rings and 6 plastic seal rings.
- Accessories by customers’ selection: adapter panel, earthing device, buffer pipe for bunchy fiber, pressure testing valve, pigtail, patchcord, aerial hook or wall-mounting fixer.
