Specifications
VGA to Cat5e/6 Extender FS-6001P1.Eliminates costly and bulky VGA cable
2.Use existing structured cabling system
Key Features of VGA to Cat5e/6 Extender
• No need power supply
• Eliminates COAX or other cabling
• Supported PC resolutions; VGA, SVGA, XGA, SXGA and WXGA
• Transmits VGA (640x480) Video up to 300ft. over a single UTP CAT5e/6 cable.
Key Benefits of VGA to Cat5e/6 Extender
• Eliminates costly and bulky VGA cable
• Ultra compact size for installation versatility.
• Carry Video from Desktop or Laptop PC or other VGA sources to remote
displays or distribution locations utilizing cost effective CAT5 cable
• Allows a simple and cost effective solution for meeting rooms,
classrooms, digital signage and other presentations
Quick Setup Guide of VGA to Cat5e/6 Extender
Plug your VGA cable coming from your PC into the Transmit Baluns HD15
connector. Secure the cables using the lock down screws. Make a similar
connection between the Receive Baluns HD15 connector and your display.
Insert the CAT5 cable into both ends of the Baluns. You may use standard
EIA 568A/B termination.
NOTE: Baluns are interchangeable for transmit or receive functions.
Technical Specifications of VGA to Cat5e/6 Extender
Signal: VGA, VESA VP&D 1.0, VIP ver 2.0
Bandwidth: DC to 60 MHz
Maximum Distance*:
VGA: (640 x 480) 600ft.
SVGA : (800 x 600) 400ft.
XGA : (1024x768) 350ft.
WXGA : (1280x768) 250ft.
SXGA : (1280x1024) 250ft.
UXGA : (1600x1200) 200ft.
WUXGA: (1920x1200) 200ft.
(*Longer distances are possible but best quality is attained at shorter distances)
Maximum Video Input Level: 1.1Vp-p
Insertion Loss per Pair of Baluns: Less than 3dB over frequency range.
Video Impedance:
Input: RGB 75Ω (HD15) Unbalanced.
Output: RGB 100Ω (RJ45 shielded) Balanced
Cable (UTP): CAT5e/6 24 Gauge or lower solid copper twisted pair.
Connectors: One (1) VGA (HD15) Female for Video, One (1) RJ45 jack
RJ45 Pinout:
Pin #1 = Blue +
Pin #2 = Blue –
Pin #3 = V Sync
Pin #4 = Green
Pin #5 = Green –
Pin #6 = H Sync
Pin #7 = Red +
Pin #8 = Red
Compatibility: Does not support VGA handshaking (DDC) information.
General of VGA to Cat5e/6 Extender
Dimensions: 65*55*25mm
Weight: 80g
Enclosure: ABS engineering plastic
Accessories: VGA cable
Operating Temperature: 0 ℃ to 55℃
Application Diagram

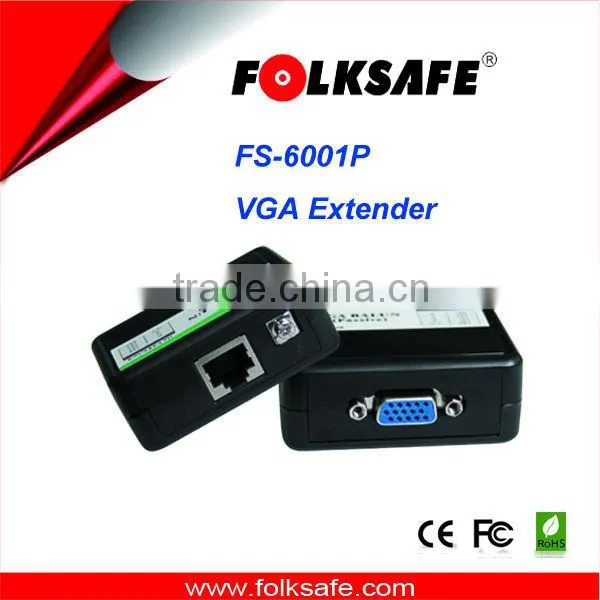

Picture of VGA to Cat5e/6 Extender
Transportation of VGA to Cat5e/6 Extender
Company and Factory show
Certification of VGA to Cat5e/6 Extender
Exhibiton of VGA to Cat5e/6 Extender
