Vertical of Hermetic Sealing Thermal Splice Closure

Vertical of Hermetic Sealing Thermal Splice Closure thumbnail-1
Vertical of Hermetic Sealing Thermal Splice Closure photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Optfocus
Model Number:
OFS-400-B8-H
Contact Supplier Request Quote Chat Now
Shenzhen Optfocus Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhn
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Optfocus
Model Number OFS-400-B8-H

Specifications

Max. Fiber Capacity:24X 6=144 fibers
Materials: closure body: PP splice tray: ABS





OFS-400-B8-H /TYCO: FOSC 400 B8



Dome Heat Shrinkable Splice Closure





Vertical of Hermetic sealing thermal Splice Closure

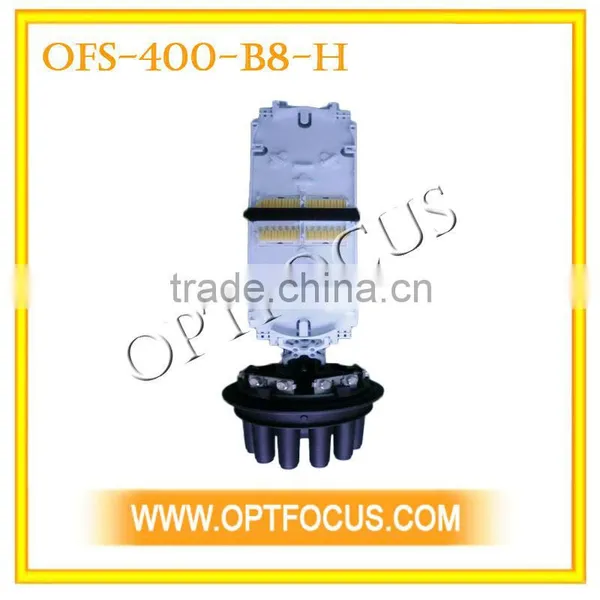

FOSC 400 B8 with tray 1

Vertical of Hermetic sealing thermal Splice Closure



tray 2

 Vertical of Hermetic sealing thermal Splice Closure









Vertical of Hermetic sealing thermal Splice Closure



Base







General description:



The B8 closure provides a compact solution for the emerging Fiber-to-the-Home(FTTH)market.The eight round ports base provides an excellent platform for single or multi-fiber drops while maintaining the proven reliability of FOSC splice closures.



Fiber Optic Splice Closure FOSC 400 B8 is designed for use with any cable construction(loose buffer tube,central core tube,loose fiber,and ribbon),in any environment(aerial,pedestal,buried,handhole,and manhole),and for numerous splice applications(express,tap-off,branch,and repair).



Standard fiber capacity:Per closure can accommodate up to 4 pieces of trays.



24X 4=96 fibers



Max. Fiber Capacity:24X 6=144 fibers (add two more trays)



Materials: closure body: PP   splice tray: ABS





OFS-400-A8-G Fiber Optic Splice Closure Datasheet



Model No.

Size (mm) HxD

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Weight (excluding outside box)

OFS-400-B8-H

Height:53cm

Base diameter:16cm

closet ring dia. 18cm

96

9

1Oval: Φ60*40mm

8 *round. Φ10mm

4KG

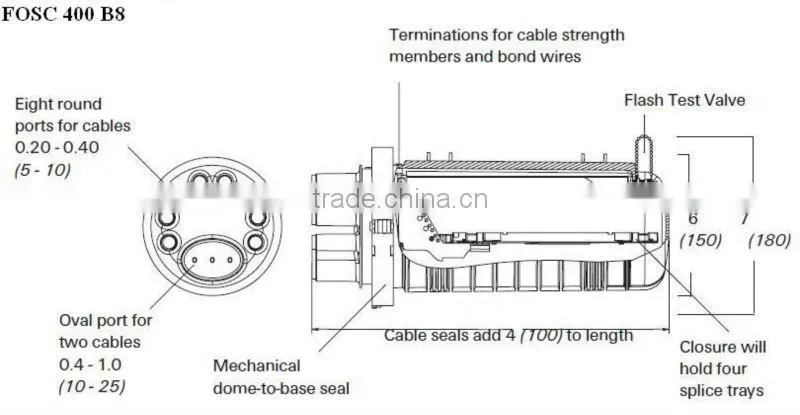

Structure Drawing







 Vertical of Hermetic sealing thermal Splice Closure



Content of fiber optic splice closure



1.Clamp

2.Dome



3.Velcro strip with one X flake



4.Base



5.Splice tray



6.Tray lid



7.Shield continuity wires

8.Valve



9Shield continuity connector



10.Sealing ring



11.Inner fixing part



12.Strength member



13.Support ring on the base



Oval outlet cable seal kit:



1.Heat shrinkable sleeve



2.Aluminum cable protection tapes



3.Abrasive strip



4.Branch off clip



Cable seal kit:



1.Aluminum cable protection tape



2.Heat shrinkable sleeve



3.Abrasive strip



Other accessories:



1.Desiccant



2.Shield continuity wires



3.Connector



4.Smouvs (splicing protection tubing)



5.transparent tubes



Tie wraps



3. Installation flow chart



Heats shrink sealing

Fix and seal the base and cover it with clamp

Install the external fixing part, and fix the closure

Splice fibers and store rest. Fix the splice tray and enlace them with strap

Choose appropriate inlet port and cut it

Take the stripped fiber into the heat shrink tube and then stripped it into the base of closure

Fix the fiber and steel core.

Insert the fiber with protective tube into splice tray, and fix it

Loose the clamp and Open the closure





Notes:1. Please align the two arrow marks(closure base and dome).



  Vertical of Hermetic sealing thermal Splice Closure

3.How to fix the splice trays

      Vertical of Hermetic sealing thermal Splice ClosureVertical of Hermetic sealing thermal Splice ClosureVertical of Hermetic sealing thermal Splice Closure

Use the plastic wedge to fix the splice trays.



Technical Parameter:



1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade



2. Atmospheric Pressure: 70~150Kpa



3. Axial Tension: >2000N/1min



4. Stretching Resistance: 2500N/10 square centimetre(1min)



5. Insulation resistance: >2*104MΩ



6. Voltage Strength: 15KV/1min, no arcover or breakdown



7. Pressure in the water: 50m/72hours



8. Splice tray with optical taking-in radius≥40mm. Low optical loss



Packing:(light goods)



4 sets in1 outer carton,

61 cm*52*46=0.15 m3 (Outer carton size)

Weight :16.2KG(4 sets)
