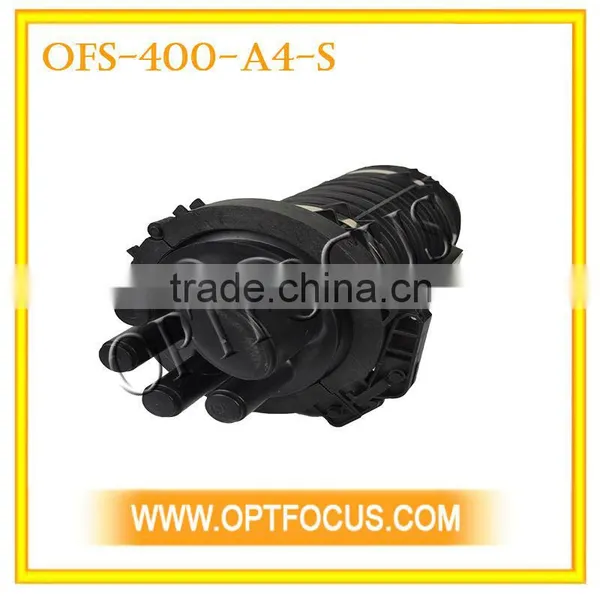

OFS-400-A4-S /TYCO: FOSC 400 A4
Dome Heat Shrinkable Splice Closure
|
FOSC 400 A4 with tray 1 |
tray 2 |
|
|
General description:
l Fiber Optic Splice Closure FOSC 400 A4 can be used in manhole, in handhole, aerial-hanger, wall-mounting, be directly buried and pedestal.
l Standard fiber capacity: Per closure can accommodate up to 6 pieces of trays. 12/24 fiber per tray
l Max. Fiber Capacity:24X 6=144 fibers
l Materials: closure body: PP splice tray: ABS
OFS-400-A4-S Fiber Optic Splice Closure Datasheet
Model No. |
Size (mm) HxD |
Core capacity |
Cable Ports (max) |
Max diameter of cable (mm) |
Weight (excluding outside box) |
OFS-400-A4-S |
Height:42cm Base diameter:16cm closet ring dia. :21cm |
96 |
5 |
1Oval: Φ60*40mm 4 *round. Φ20mm |
3.8KG |

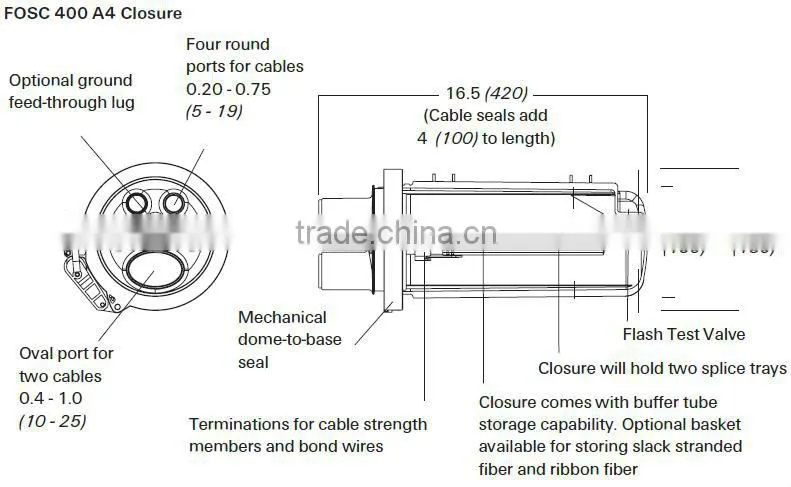

Structure Drawing
Content of fiber optic splice closure
1.Outer fixing part
2.Clamp
3.Dome
4.Base
5.Splice tray
6.Tray lid
7.Shield continuity wires
8.Valve
9Shield continuity connector
10.Sealing ring
11.Inner fixing part
12.Strength member
13.Support ring on the base
14.Velcro strip with one X flake
Oval outlet cable seal kit:
1.Heat shrinkable sleeve
2.Aluminum cable protection tapes
3.Abrasive strip
4.Branch off clip
Cable seal kit:
1.Aluminum cable protection tape
2.Heat shrinkable sleeve
3.Abrasive strip
Other accessories:
1.Desiccant
2.Shield continuity wires
3.Connector
4.Smouvs (splicing protection tubing)
5.transparent tubes
Tie wraps
3. Installation flow chart
Heats shrink sealing |
Fix and seal the base and cover it with clamp |
Install the external fixing part, and fix the closure |
Splice fibers and store rest. Fix the splice tray and enlace them with strap |
Choose appropriate inlet port and cut it |
Take the stripped fiber into the heat shrink tube and then stripped it into the base of closure |
Fix the fiber and steel core. |
Insert the fiber with protective tube into splice tray, and fix it |
Loose the clamp and Open the closure |
Notes:1. Please align the two arrow marks(closure base and dome).
3.How to fix the splice trays
Use the plastic wedge to fix the splice trays.
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥40mm. Low optical loss
Packing:(light goods)
4 sets in1 outer carton,
The outer carton size: 53 cm*48*45=0.114m3
4 sets of closures :Weight :15.2 KG
