FOSC Fiber Optic PLC Splitter

Name: FOSC Fiber Optic PLC Splitter
Brand: Optfocus
SKU: 107910241

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Optfocus

Model Number:

OFS-SCV-01Q

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Optfocus

Model Number OFS-SCV-01Q

Specifications

Suitable for bunchy fibers
Pole-mounting,wall-mounting,hand hole-mounting
underground and duct-mounting

Dome Shrinkable Seal Splice Closure

Features:

Advanced internal structure design
Easy to re-enter,it never requires re-entry tool kit.
Teh closure is spacious enough for winding and storing fibers
Fiber Optic Splice Trays(FOSTs) are designed in SLIDE-IN-LOCK and its opening angle is about 90^o
The curved diameter meets with international standard
Easy and fast to increase and reduce FOSTs
Straight-through for uncutting and branching for cut
Lay adapters suit for FTTH and easy to operate

Applications

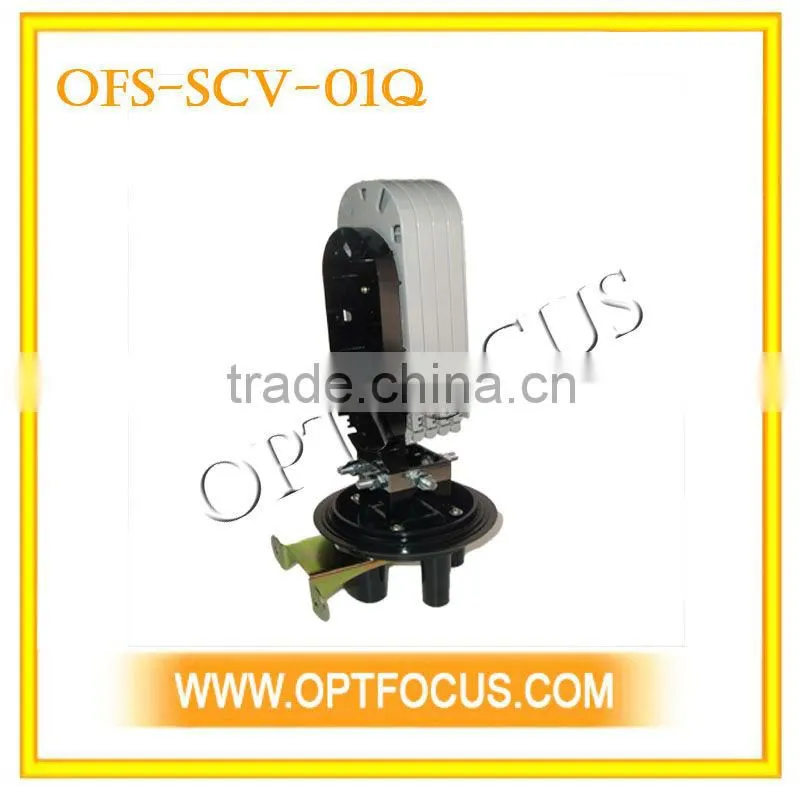

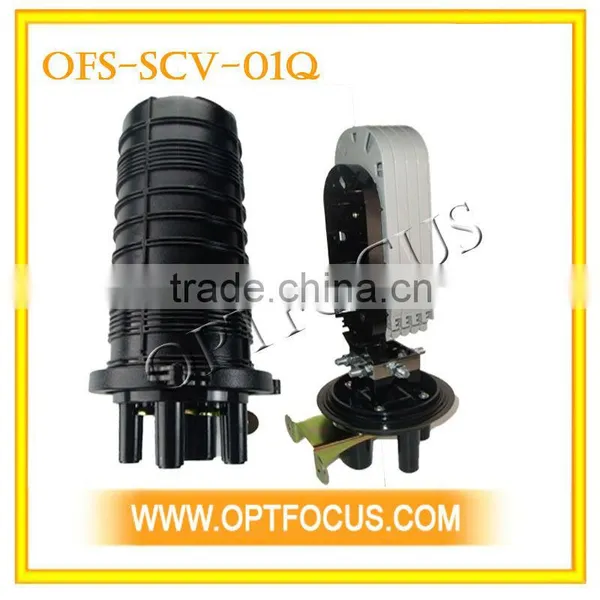

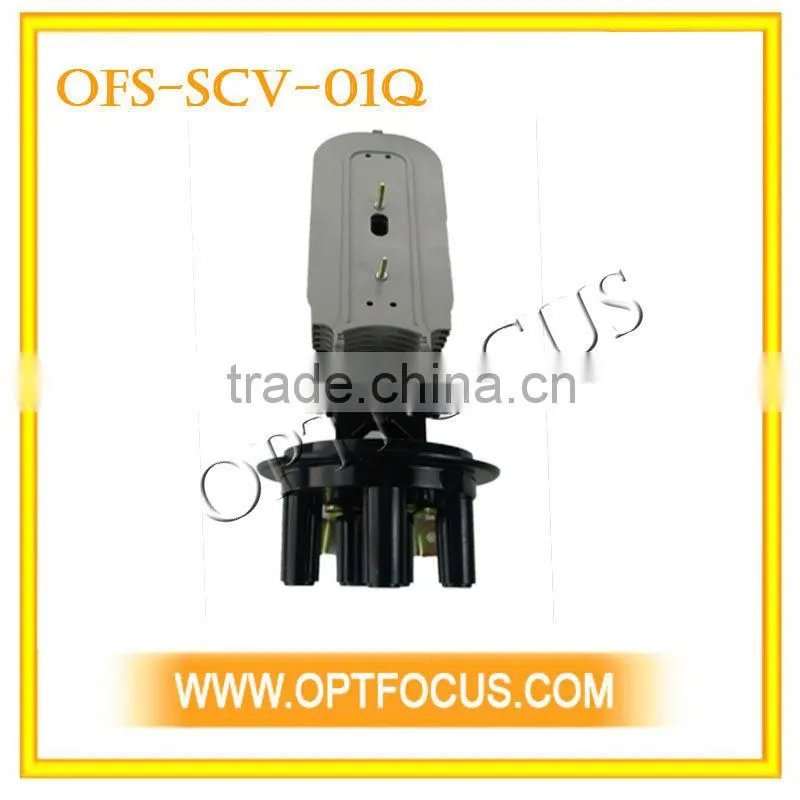

OFS-SCV-01Q Fiber Optic Splice Closure Datasheet

Model No.	Size (mm) HxD	Core capacity	Cable Ports (max)	Max diameter of cable (mm)	Weight (excluding outside box)
OFS-SCV-01Q	435*φ190	96	4	Φ8mm~Φ25 mm	2350 g— 2600g

Main components

No.	Name of components	Quantity	Usage	Remarks
1	FOSC cover	1 piece	Protecting fiber cable splices in whole	Height x Diameter 355mm x 150mm
2	Fiber optic splice tray (FOST)	Max. 6 trays (bunchy) Max. 4 trays (ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
3	Fiber holding tray	1 pcs	Holding fibers with protective coat
4	Base	1set	Fixing internal and external structure
5	Plastic hoop	1 set	Fixing between FOSC cover and base
6	Seal fitting	1 piece	Sealing between FOSC cover and base
7	Pressure testing valve	1 set	After inject air, it is used for pressure testing and sealing testing	Configuration as per requirement
8	Earthing deriving device	1 set	Deriving metal parts of fiber cables in FOSC for earthing connection	Configuration as per requirement
