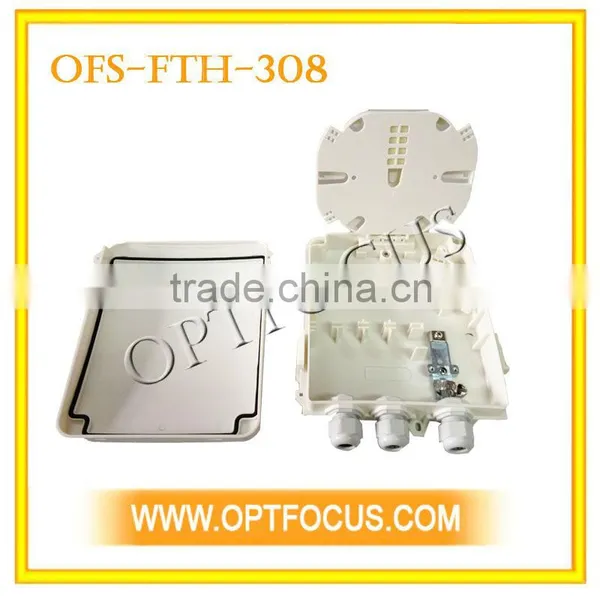

OFS-FTH-308 Fiber Optic Terminal Box
Instruction manual
to the home. The box is light and compact. It is
especially for connecting and protection for fiber cable of FTTH.
1. Features:
It is suitable for wall-mounting installation;
It is IP65;
It is suitable for SC adapters installation and usage;
It is easily to access the box by sliding shackle;
It is applicable for outdoor cables or indoor soft cables;
Size: 210×175×50mm;
The maximum capacity is 8 fibers.
2. Internal structure

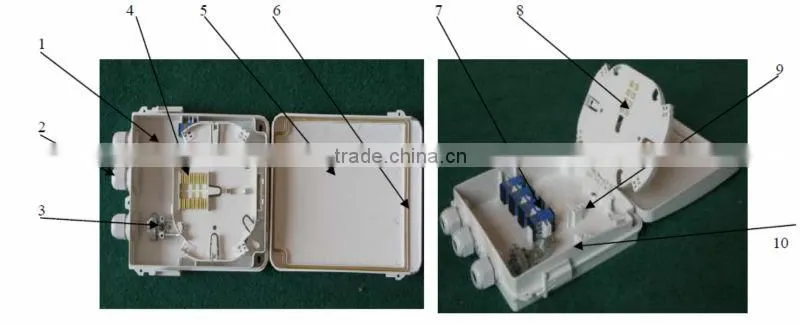

1. base 2. cable gland 3. fixing cable parts 4. splice chip 5. cover 6. sealing ring 7. for adapter
fixing 8. splice tray 9. for coiling cable 10. sliding shackle
3. Usage
3.1 Open the outer package of box;
3.2 Cut the nylon tie, sliding slider, open the box;
Nylon tie

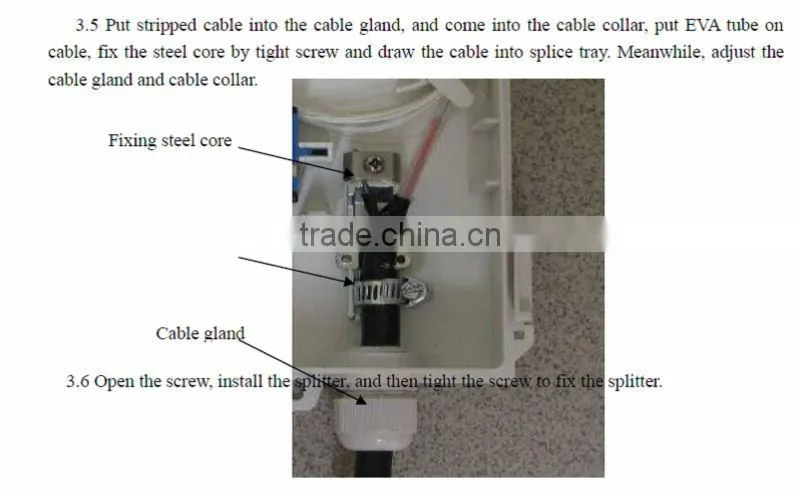

3.3 Make the fiber cable thrill through appropriate position of box, measure the length of
120cm from the end of cable and strip the protective layers. And then use EVA tube, and
wrap the insulation tape. (The below installation is the example for outdoor cable
application).

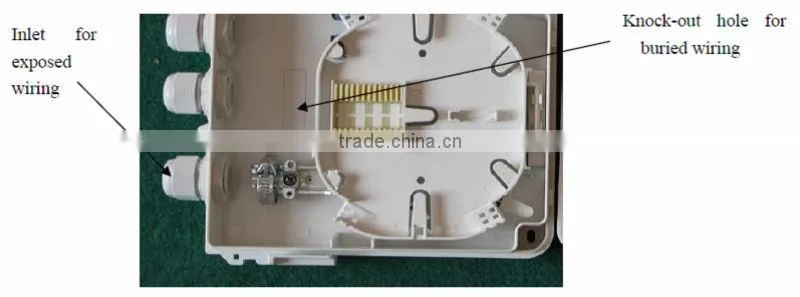

3.4 It could be used for both buried wiring and exposed wiring, please see below picture.

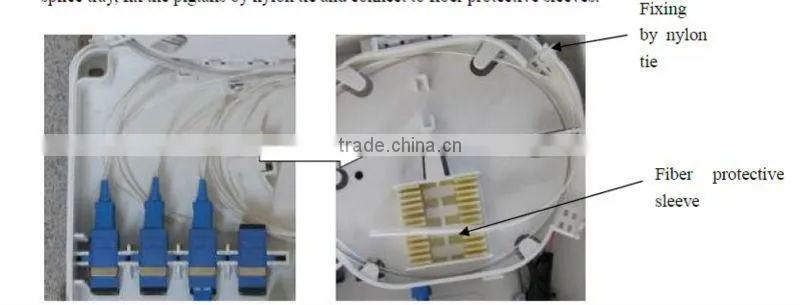

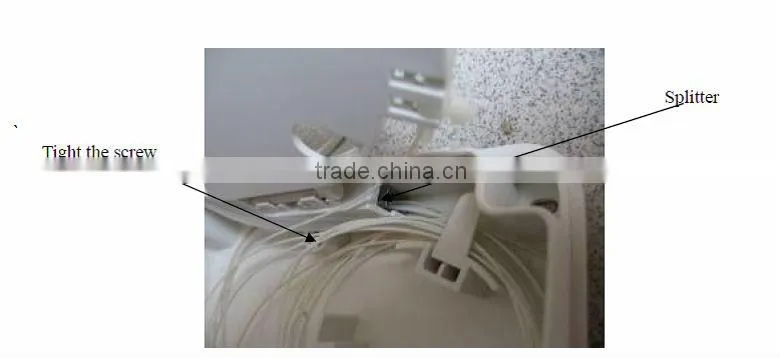

3.7 Put the adapters, insert the pigtails of splitter, then put the pigtails with EVA tube into the
splice tray, fix the pigtails by nylon tie and connect to fiber protective sleeves.
3.8 Splicing pigtails with inlet cables, then heat the fiber protective sleeve, after heat the
protective sleeve, put it into splice chip..
3.9 The fiber can be coiling in the splice tray, and the other balance pigtails can be coiling in
the bottom cable hoop.
4. Install construction
4.1 Drill the 3 holes on the wall for M4 plastic expansion screw as below pictures.
4.2 Put M4 plastic expansion screws into holes.
4.3 Mounting the box on the wall by 4×25 self-tapping screws. Cover the box, clasp sliding
shackle, fasten it by nylon tie, or by lock.
When closing the box, please take note the below points:
1.First align the holes of lid with the buckles of the bottom;
2.Then put the buckle of the lid as below picture.;
3.Buckle up the sliding shackle, tie the box with nylon tie.
