Specifications
Widely used in FTTH access networkTelecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

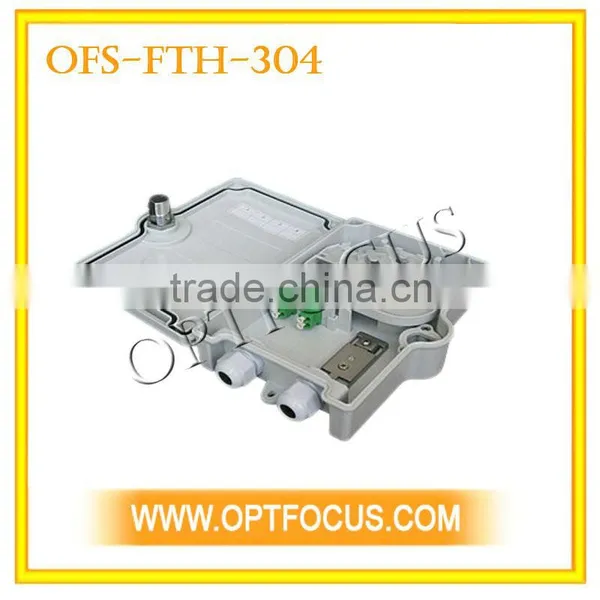

OFS-FTH-304 Fiber Optic Terminal Box
Instruction manual
it is especially for connecting and protection for fiber cable of FTTH.
1. Features::
It is suitable for wall-mounting installation;
It is IP65;
It is suitable for duplex LC/SC adapters installation and usage;
It is suitable for outdoor cable or indoor soft cable;
Size: 208×153×52mm,
The maximum capacity is 4 fibers for duplex LC, and 2 fibers for SC.
1. base;2. fixing cable parts;3. for coiling cable;4. for adapter fixing;5. splice protective sleeve;
6. splice tray;7. cover;8. for labelling; 9. lock; 10. sealing ring; 11. tunable collet; 12. ribbon
3. Usage
3.1 Open the outer package of box;
3.2 Using the key, open the box;
3.3 Make the fiber cable thrill through appropriate position of box, measure the length of
120cm from the end of cable and strip the protective layers. And then use EVA tube, and wrap
the insulation tape. (The below installation is the example for outdoor cable application). Put
stripped cable into the cable gland, and come into the cable collar, put EVA tube on cable, and
fix the steel core by tight screw. Meanwhile, adjust the ribbon and cable gland.
3.4 When maintained, the splice tray can be fixed on level to be operated easily. It is only
need to remove right the splice tray and fix it on the slot. It is very convenience, as below
pictures.
3.5. Put the adapters, insert the pigtails of splitter, then put the pigtails with EVA tube into the
splice tray, fix the pigtails by nylon tie and connect to fiber protective sleeves.(if there is optic
splitter, please operate as below pictures. Drop into the splitter through splice tray, and connect
adapter with pigtail.), Splicing pigtails with inlet cables, then heat the fiber protective sleeve,
after heating the protective sleeve, put it into splice chip. The fiber can be coiling in the splice
tray, and the other balance pigtails can be coiling in the bottom cable hoop.
3.6. Open the screw, install the splitter, and then tight the screw to fix the splitter.
3.7 Put down the cover
4. Install construction
4.1 Drill the 3 holes on the wall for M4 plastic expansion screw as below pictures.;
4.2 Put M4 plastic expansion screws into holes.
4.3 Mounting the box on the wall by 4×25 self-tapping screws. Cover the box, and lock it.
Thank you for supporting our company’s products! If there is any problem,please do not hesitate
to contact us. we will provide you with the best service in time.
