Series of Passive Optical Terminal Box

Name: Series of Passive Optical Terminal Box
Brand: Optfocus
SKU: 107909901
Availability: InStock

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Optfocus

Model Number:

OFS-FTH-324

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Optfocus

Model Number OFS-FTH-324

Specifications

1,Operating temperature: -40 oC -60 oC.
2,Environmental Humidity: 95% at 40 oC.
3,the air pressure: 62kPa-105kPa

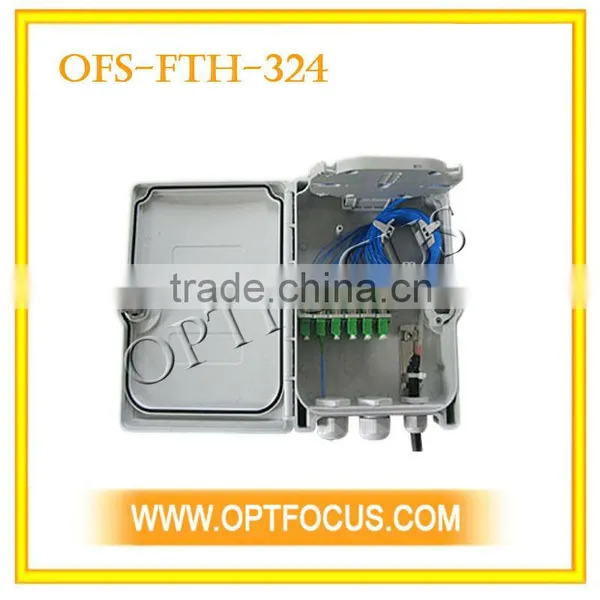

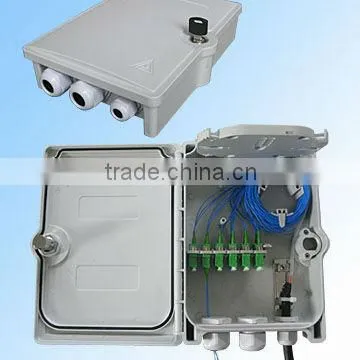

Series of passive optical terminal box OFS-FTH-324

Description:

Mechanical seal: Excellent sealing performance,reusable. Protection grade is IP 65.
Installation method: Outdoor wall-mounted
Feature:

Series of FTTH products, passive splitter, professional terminal box with many new utility model patents.
Box and key design is easy for operation with complete functions of small size.
Splitter distribution, 8-type or Φ3 cable protective consistency can be achieved less than Φ12 cable termination.
Can be installed 1:8 SC or 1:16 LC minitype splitter with SC(double core) or LC(four core) adaptor. Maximum for LC is 24 core, for SC is 12 core.

PURCHASE TIP

Item No.	Code	Name	Appearance size	Remark
OFS-FTH-324	03020801	8-channel passive fiber optical terminal box	570×415×355 (20 pcs)	SC
		16-channel passive fiber optical terminal box		LC
	03020802	12F fiber optical terminal box		SC
	03020803	24F fiber optical terminal box		LC

Function:	cable terminal,passive splitter
Splitter type:	micro splitter
Splitter installation position:	splitter fixing bracket
Adaptor type:	LC or SC
Max ratio:
Splice tray type:	15#
Splice tray quantity:	1 pcs
Cable:	outdoor cable, indoor soft cable
Standard accessory:	box one set
Optional accessory:	PLC splitter,double-core SC adapter, four-core LC adapter
