Max. Fiber Capacity(single fiber): 72*8=576 fibers
Ribbon: 864 fiber
Materials: closure body: PP splice tray: ABS



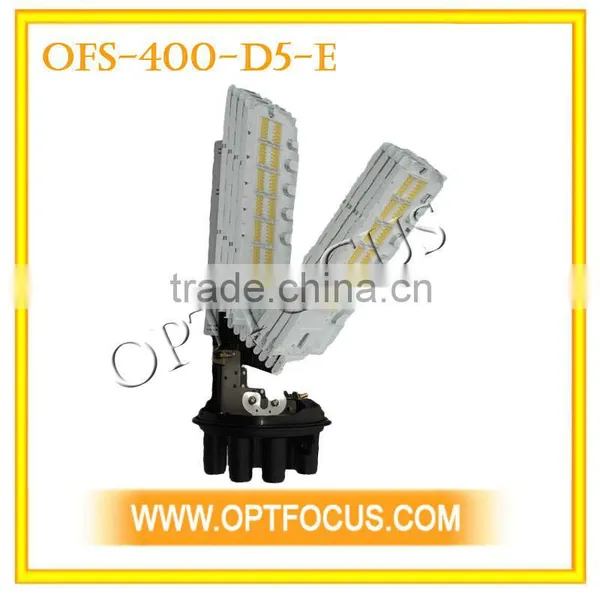

OFS-400-D5-E/ FOSC 400 D5



Dome Heat Shrinkable Splice Closure



fiber optic assembly Dome type shrinkable seal 1 Ovalport+5 small port 576 fibers



fiber optic assembly Dome type shrinkable seal 1 Ovalport+5 small port 576 fibers



 fiber optic assembly Dome type shrinkable seal 1 Ovalport+5 small port 576 fibers

















Features:



  • FOSC 400 D5 is designed for both single fiber and ribbon fiber. Excessive fibers can be stored in storage   basket behind the splice trays.
  • Per closure can accommodate up to 8 pieces of trays.
  • Max. Fiber Capacity(single fiber): 72×8=576 fibers
  • Ribbon: 864 fiber
  • Materials: closure body: PP   splice tray: ABS



General description:



Fiber Optic Splice Closure FOSC 400 D5 is designed for use with any cable construction(loose buffer tube,central core tube,loose fiber,and ribbon),in any environment(aerial,pedestal,buried,handhole,and manhole),and for numerous splice applications(express,tap-off,branch,and repair).



OFS-400-D5-E Fiber Optic Splice Closure Datasheet





Model No.



Size (mm) HxD

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Weight (excluding outside box)



OFS-400-D5-E



Height:71cm

Base diameter:28cm

closet ring dia. :30cm

576

6



1Oval: Φ60*40mm

5 *round. Φ33mm

6KG



Structure Drawing







 fiber optic assembly Dome type shrinkable seal 1 Ovalport+5 small port 576 fibers



Installation flow chart

Heats shrink sealing

Fix and seal the base and cover it with clamp

Install the external fixing part, and fix the closure

Splice fibers and store rest. Fix the splice tray and enlace them with strap

Choose appropriate inlet port and cut it

Take the stripped fiber into the heat shrink tube and then stripped it into the base of closure

Fix the fiber and steel core.

Insert the fiber with protective tube into splice tray, and fix it

Loose the clamp and Open the closure









Notes:  Please align the two arrow marks(closure base and dome).



  fiber optic assembly Dome type shrinkable seal 1 Ovalport+5 small port 576 fibers

How to fix the splice trays

      fiber optic assembly Dome type shrinkable seal 1 Ovalport+5 small port 576 fibersfiber optic assembly Dome type shrinkable seal 1 Ovalport+5 small port 576 fibersfiber optic assembly Dome type shrinkable seal 1 Ovalport+5 small port 576 fibers

Use the plastic wedge to fix the splice trays.



Content of fiber optic splice closure



1.Velcro strip with one X flake



2.Clamp



3.Dome



4.Base



5.Splice tray



6.Tray lid



7.Shield continuity wires



8.Valve



9Shield continuity connector



10.Sealing ring



11.Inner fixing part



12.Strength member



13.Support ring on the base





Oval outlet cable seal kit:



1.Heat shrinkable sleeve



2.Aluminum cable protection tapes



3.Abrasive strip



4.Branch off clip



Cable seal kit:



1.Aluminum cable protection tape



2.Heat shrinkable sleeve



3.Abrasive strip



Other accessories:



1.Desiccant



2.Shield continuity wires



3.Connector



4.Smouvs (splicing protection tubing)



5.transparent tubes



Tie wraps







Technical Parameter:



1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade



2. Atmospheric Pressure: 70~150Kpa



3. Axial Tension: >2000N/1min



4. Stretching Resistance: 2500N/10 square centimetre(1min)



5. Insulation resistance: >2*104MΩ



6. Voltage Strength: 15KV/1min, no arcover or breakdown



7. Pressure in the water: 50m/72hours



8. Splice tray with optical taking-in radius≥40mm. Low optical loss







Packing:(light goods)







Packing: (light goods)



2 sets in 1outer carton,



0.75cm*0.62*0.36



=0.17 m3



Gross weight: Total 19.4 kg/outerCTN
