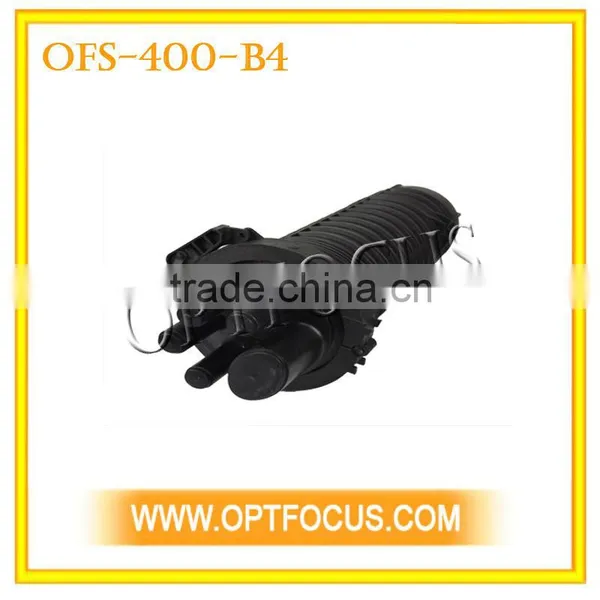

Fiberoptic Outdoor Mini-tower Thermal Shrinkage Seal Splice Closure

Fiberoptic Outdoor Mini-tower Thermal Shrinkage Seal Splice Closure thumbnail-1
Fiberoptic Outdoor Mini-tower Thermal Shrinkage Seal Splice Closure photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Optfocus
Model Number:
OFS-400-B4-B
Contact Supplier Request Quote Chat Now
Shenzhen Optfocus Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhn
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Optfocus
Model Number OFS-400-B4-B

Specifications

Max. Fiber Capacity:24X 6=144 fibers
Materials: closure body: PP splice tray: ABS





OFS-400-B4-B /TYCO: FOSC 400 B4

Dome Heat Shrinkable Splice Closure

 fiberoptic outdoor Mini-tower thermal shrinkage seal Splice Closure



FOSC 400 B4

 fiberoptic outdoor Mini-tower thermal shrinkage seal Splice Closure

  OFS-400-B4-A

Tray A

 fiberoptic outdoor Mini-tower thermal shrinkage seal Splice Closure

OFS-400-B4-B

Tray B

 fiberoptic outdoor Mini-tower thermal shrinkage seal Splice Closure



General description:



Fiber Optic Splice Closure FOSC 400 B4 can be used in manhole, in handhole, aerial-hanger, wall-mounting, be directly buried and pedestal.



l  FOSC 400 B4 is designed for both single fiber and ribbon fiber.



l  Optional closure part :Excessive fibers can be stored in storage basket behind the splice trays.



l  If you add the fiber storage basket:24×4=96 fibers(single fiber) :for ribbon: 288 fiber



l  If you don’t need the fiber storage basket: 24×6=144 fibers(single fiber)



l  For tray A: 24 fiber per splice tray/ or 16 fiber per splice tray (Optional) For Tray B:24 fiber per splice tray



l  Materials: closure body: PP   splice tray: ABS



OFS-400-B4  Fiber Optic Splice Closure Datasheet



Model No.

Size (mm) HxD

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Weight (excluding outside box)

OFS-400-B4-B



Height:54cm



Base diameter:16cm

closet ring dia. :21cm

144

5

1Oval: Φ60*40mm

4 *round. Φ20mm

3.85 KG





Structure Drawing



 fiberoptic outdoor Mini-tower thermal shrinkage seal Splice Closure

Content of fiber optic splice closure

1.Clamp

2.Dome

3.Velcro strip with one X flake

4.Base

5.Splice tray

6.Tray lid

7.Shield continuity wires

8.Valve

9.Shield continuity connector

10.Sealing ring

11.Inner fixing part

12.Strength member

13.Support ring on the base



Oval outlet cable seal kit:



1.Heat shrinkable sleeve

2.Aluminum cable protection tapes

3.Abrasive strip

4.Branch off clip



Cable seal kit:

1.Aluminum cable protection tape

2.Heat shrinkable sleeve

3.Abrasive strip



Other accessories:

1.Desiccant

2.Shield continuity wires

3.Connector

4.Smouvs (splicing protection tubing)

5.transparent tubes

Tie wraps 3. Installation flow chart

Heats shrink sealing

Fix and seal the base and cover it with clamp

Install the external fixing part, and fix the closure

Splice fibers and store rest. Fix the splice tray and enlace them with strap

Choose appropriate inlet port and cut it

Take the stripped fiber into the heat shrink tube and then stripped it into the base of closure

Fix the fiber and steel core.

Insert the fiber with protective tube into splice tray, and fix it

Loose the clamp and Open the closure



 Notes:1. Please align the two arrow marks(closure base and dome).



  fiberoptic outdoor Mini-tower thermal shrinkage seal Splice Closure

3.How to fix the splice trays

      fiberoptic outdoor Mini-tower thermal shrinkage seal Splice Closurefiberoptic outdoor Mini-tower thermal shrinkage seal Splice Closurefiberoptic outdoor Mini-tower thermal shrinkage seal Splice Closure

Use the plastic wedge to fix the splice trays.



Technical Parameter:



1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade



2. Atmospheric Pressure: 70~150Kpa



3. Axial Tension: >2000N/1min



4. Stretching Resistance: 2500N/10 square centimetre(1min)



5. Insulation resistance: >2*104MΩ



6. Voltage Strength: 15KV/1min, no arcover or breakdown



7. Pressure in the water: 50m/72hours



8. Splice tray with optical taking-in radius≥40mm. Low optical loss



Packing:(light goods)



4 sets of closures put into 1 outer carton:

61 cm*52*46=0.15 m3 (Outer carton size)

Weight :15.4KG(4 sets)
