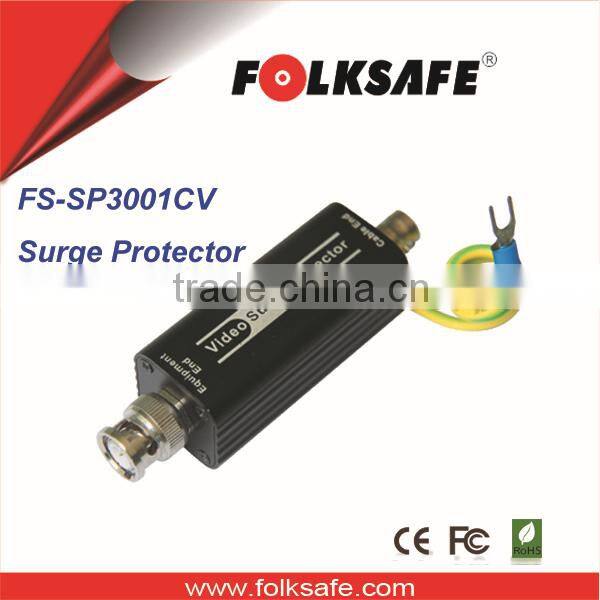

Coaxial Video 12V Surge Protector , Folksafe Model FS-SP3001CV

Coaxial Video 12V Surge Protector , Folksafe Model FS-SP3001CV photo-1
US$ 1 - 10 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Folksafe 12v surge protector
Model Number:
FS-SP3001CV 12v surge protector
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Folksafe 12v surge protector
Model Number FS-SP3001CV 12v surge protector

Model   FS-SP3001CV


Features



                          Coaxial Video Surge Protector BNC Connector



  • BNC male to BNC female, Hi Frequency for both CCTV and CATV use
  • BAND PASS: 0~1 GHZ
  • Performs a different function than grounding requirements.
  • Protects equipment from high voltage surges from nearby lightning strikes.
  • Two stage protection: under 1ns-90V, over 10ns-12V.





Overview

Video Surge Protectors are applied in coaxial communication devices of CCTV/CATV/ VOD system and so on. They play an important role

 in lighting strikes and surge protection. Video Surge protectors of coaxial communication signals are designed in accordance with IEC

and National Standard. There’re various of coaxial connectors such as F/N/ BNC.  Video Surge Protectors are easy and convenient in

installation. No need maintenance and low insertion loss.





Technical Specifications



Model

FS-SP3001CV

Product Name

Coaxial Video Surge Protector BNC connector

Function

Video Signal Surge Protection

Applied devices

CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR. VOD.etc.

Connector

BNC male and female

Surge Protection Attack

Response Time <1ns

Maximum Surge Current: 4KV

Surge Life: 300 surges of 100Amps

Max Continuous Running Voltage

80V

Nominal Discharge Current

5kA

Rated Load Current

10kA

UXX

500mA

Limited <<Voltage> <DC>>

600V

Max Transmission Rate

1Gbps

Matched Impedance

75Ω

Power Passing Capability

130V AC/DC, 65 Vrms at 10Amps

Insertion Loss: less than 0.2dB

  Return Loss (75 ohms): 16dB

Net Weight

0.08kg

Dimensions

58*25*25mm

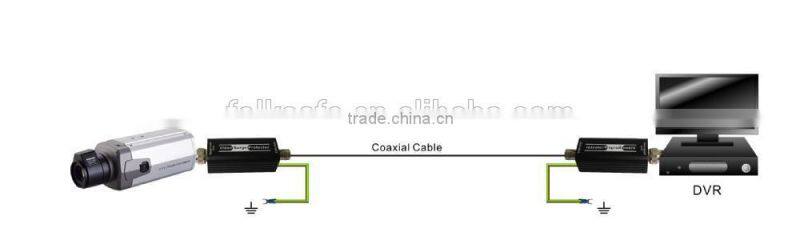

Application Diagram

 Coaxial Video 12V Surge Protector , Folksafe Model FS-SP3001CVCoaxial Video 12V Surge Protector , Folksafe Model FS-SP3001CVCoaxial Video 12V Surge Protector , Folksafe Model FS-SP3001CVCoaxial Video 12V Surge Protector , Folksafe Model FS-SP3001CVCoaxial Video 12V Surge Protector , Folksafe Model FS-SP3001CVCoaxial Video 12V Surge Protector , Folksafe Model FS-SP3001CV
