Help CenterWall-Mounted Terminal Box
Related Products
Specifications
Available for the distribution and terminal connection of various kinds of optical fiber systemFit for wall mounted
Wall-Mounted Terminal Box

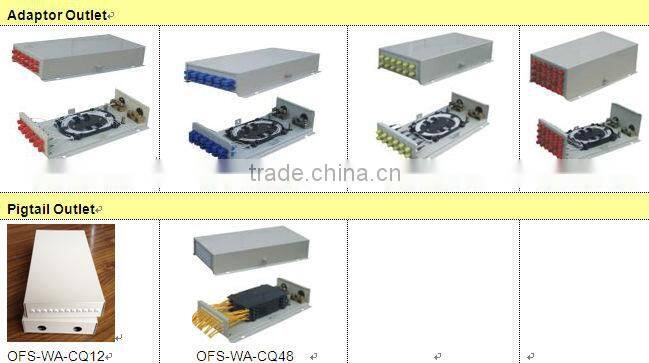

OFS-WA Series
l Applicable in the straight through or branch connection of indoor optical cable
l Available for the distribution and terminal connection of various kinds of optical fiber system
l Fit for wall mounted
Order Guide
Type |
Size(mm) |
Max capacity(core) |
Remark |
OFS-WA-FC12 |
330x183x70 |
12 |
The body is made of cold rolled steel sheet,with electrostatic spraying,12 outlets for adaptors |
OFS-WA-SC12 |
330x183x70 |
12 |
|
OFS-WA-ST12 |
330x183x70 |
12 |
|
OFS-WA-FC24 |
330x183x100 |
24 |
|
OFS-WA-CQ48 |
330x183x70 |
48 |
The body is made of cold rolled steel sheet with electrostatic spraying,fiber pigtail outlet |
OFS-WA-CQ12 |
130x265x40 |
12 |
Packing information
Type |
Net size (mm) |
Net weight(kg) |
Packing size (mm) |
Packing weight (kg) |
No./carton pcs |
OFS-WA |
360X193X85mm |
1.85 |
430x370x470mm |
20.0 |
10 |
OFS-WA-FC24 |
360X193X115mm |
2.05 |
430x370x470mm |
18.0 |
8 |
OFS-WA-CQ12 |
130x265x40mm |
0.5 |
590*300*490mm |
23.8 |
40 |

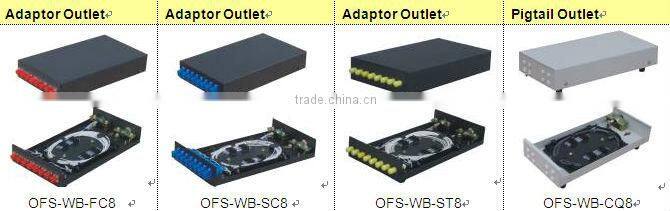

OFS-WB Series
l Applicable in the straight through or branch connection of indoor optical cable
l Available for the distribution and terminal connection of various kinds of optical fiber system
l Fit for wall mounted,especially for mini-network terminal distribution.
Order Guide
Type |
Size(mm) |
Max capacity |
REMARK |
OFS-WB-FC8 |
260X140X40 |
8 cores |
cold rolled steel sheet,with electrostatic spraying,8 outlets for adaptors |
OFS-WB-SC8 |
260X140X40 |
8 cores |
|
OFS-WB-ST8 |
300X140X40 |
8 cores |
|
OFS-WB-CQ8 |
260X120X40 |
8 cores |
8 outlets for fiber pigtail |
Packing Information
Type |
Net size (mm) |
Net weight (kg) |
Packing size (mm) |
Packing weight(kg) |
No./carton pcs |
OFS-WB |
320X150X60mm |
1.05 |
630x330x340mm |
21 |
20 |
OFS-WB-CQ |
320X150X60mm |
1.00 |
630x330x340mm |
21 |
20 |

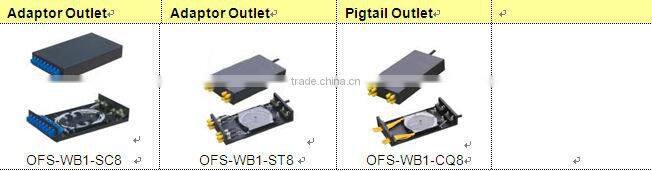

OFS-WB1Series
Applicable in the straight through or branch connection of indoor optical cable
Available for the distribution and terminal connection of various kinds of optical fiber system
Fit for wall mounted,especially for mini-network terminal distribution.
Order Guide
Type |
Size (mm) |
Max capacity (core) |
Remark |
OFS-WB1-SC8 |
220X110X40 |
8 |
cold rolled steel sheet,with electrostatic spraying,8 outlets for adaptors |
OFS-WB1-ST8 |
220X110X40 |
8 |
|
OFS-WB1-CQ12 |
220X110X40 |
12 |
12 outlets for fiber pigtail |
Packing Information
Type |
Net size |
Net weight |
Packing size |
Weight |
No./carton |
OFS-WB1 |
250X130X60mm |
0.5 kg |
550x520x32mm |
21.6kg |
40 pcs |
