Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 3 SFP + 4 RJ45 Switch

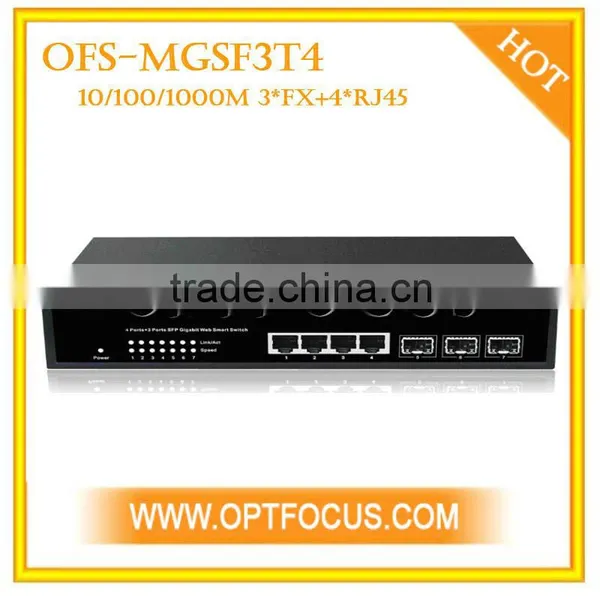

3 SFP + 4 RJ45 Switch

Name: 3 SFP + 4 RJ45 Switch
Brand: Optfocus
SKU: 107909409
Availability: InStock

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Optfocus

Model Number:

OFS-MGSF3T4

Contact Supplier Request Quote Chat Now

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Optfocus

Model Number OFS-MGSF3T4

Specifications

Complies with IEEE802.3,IEEE802.3u,IEEE802.3ab standards

OFS-MGSF3T4

Product Description:

The OFS-GSFT4F3M Gigabit Web Smart Switch fully complies with IEEE 802.3/802.3u/802.3ab Ethernet standards. It provides 4 10/100/1000Mbps Auto-Negotiation RJ45 ports and 3 SFP independence expansion slots supporting MiniGBIC . It also provides Web-based management functions including the system, port network, VLAN, Trunk, Priority and security etc.Its standard 11-inch rack-mountable steel case and intelligent management makes it is suitable for small, middle and large networks.

Product Characteristics

l Complies with IEEE802.3,IEEE802.3u,IEEE802.3ab standards;

l 4 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX and 3 SFP independent expansion slots supporting Mini GBIC module;

l Supports Web Smart and console managements ;

l Support IEEE802.3x flow control for half/full-duplex;

l Store and forward, integrated 8K MAC address table;

l Supports Port-Based /Tag VLAN Configuration;

l Supports rapid spanning tree(RSTP) Configuration;

l Supports Port Trunking;

l Supports port bandwidth control;

l Supports QoS function;

lSupports port mirror;

lSupports IGMP Snooping Configuration;

lSupports SNMP Configuration;

lSupports broadcast storm control;

l Supports HTTP software update,backup and reseting;

lSupports source IP filter through ports to block unwanted access;

l Supports dynamic flow statistics of ports;

lSupports circuit diagnoses;

lStandard 11-inch rack-mountable steel case;

l External power adapter supply;

Product Specifications

Hardware Function
Standards	IEEE802.3, 802.3u, 802.3ab, 802.3x
Basic Function	Wire-speed Performance
	MAC Address Auto-Learning and Auto-aging
	IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth	14Gbps
MAC Address Table	8k
Forwarding Rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port
Transmission Method	Store-and-Forward
Ports	4 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) and 3 SFP independence expansion slots supporting MiniGBIC modules
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators	Power, Link/Act, Speed
Dimensions (WDH)	250mm × 150mm × 44mm
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Input Consumption	Power: 100-240VAC 50-60Hz Max:13W
Detailed Management Function
General Specs
Switching fabric		store and forward
Flash		1M
Max No. of 1000Base-T/FX		4+3
Jumbo Frame		9600Bytes
IGMP Snooping		support
IGMP v1/v2/v3		V1,V2
Availability
802.1w RSTP		support
802.3ad Link (LACP)		support
Static Aggregation		support
VLAN		support
Port-based VLAN		support
802.1Q VLAN		support, VID(1-4094)
Max no. of VLAN		support 7 groups,VID(1-4094)
QoS
802.1p		support
Port based Rate Limiting		support
Broadcast Storm Control		support
Multicast Storm Control		support
Unknowable Unicast Control		support
WRR		support
COS		support
DiffServ (DSCP)		support
Security
802.1x		support
IP Filtering		support
Management
SNMP		V1,V2
Web Management		support
Console Port		support
DHCP Relay		support
TFTP		support
Port Mirroring		support

Package Contents
1 piece of OFS-GSFT4F3M Ethernet Switch
1 piece of external power adapter
1 piece of console cable
4 pieces of rubber padding
User’s manual
