Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Smart Gigabit Ethernet Switch

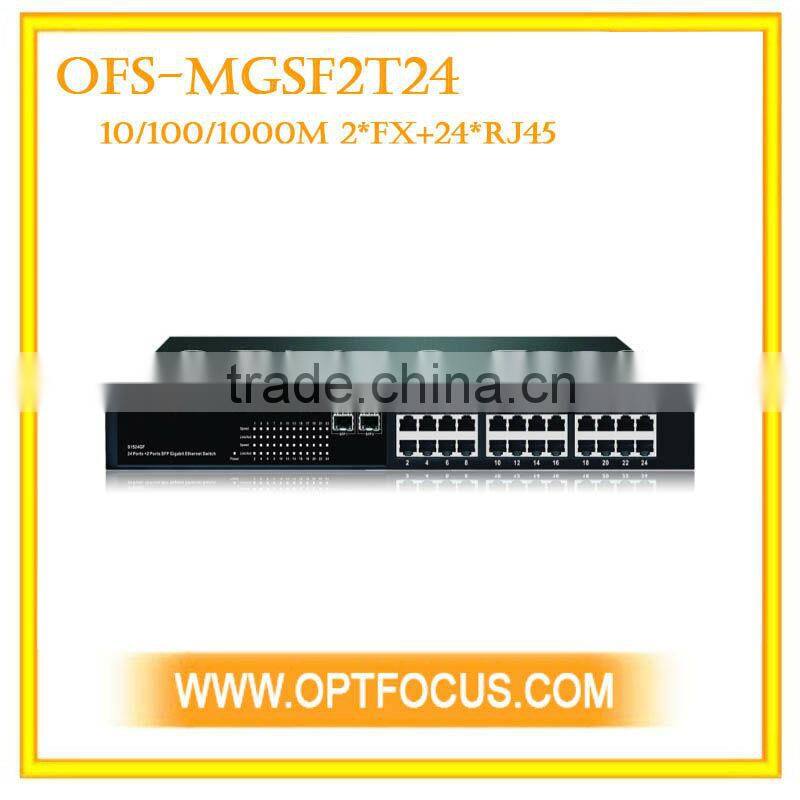

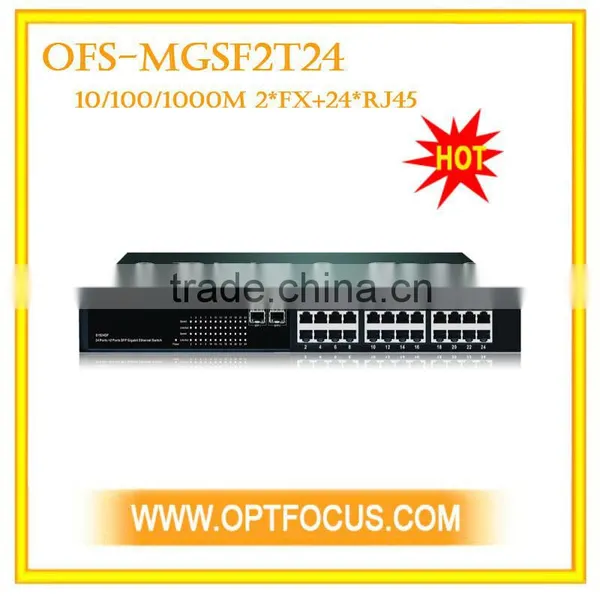

Smart Gigabit Ethernet Switch

Name: Smart Gigabit Ethernet Switch
Brand: Optfocus
SKU: 107909429
Availability: InStock

Smart Gigabit Ethernet Switch thumbnail-1

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Optfocus

Model Number:

OFS-MGSF2T24

Contact Supplier Request Quote Chat Now

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Optfocus

Model Number OFS-MGSF2T24

Specifications

Support port bandwidth control, according to different users with different business needs

OFS-MGSF2T24

Product Description

OFS-MGSF2T24 Smart ethernet switch filled in a gap between non-WEB management switch and full web management switch.

Product Features

Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad, IEEE802.1w, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1p standard

24 10/100/1000M auto-negotiation RJ45 ports, 2 gigabit SFP(mini GBIC) ports (with port 1 and port 2 multiplexing)

All ports support a half / full duplex mode auto-negotiation

Using storage-forward switch mode

Support MAC address self-learning

Support port bandwidth control and broadcast storm control

Support for link aggregation, can be configured eight aggregation groups, each group up to 24 ports, providing LACP statu display

Support RSTP (rapid spanning tree protocol) and RSTP status display

Support IGMP (V1, V2) Snooping (Multicast applications), and IGMP status display

Support Port based VLAN, 802.1Q VLAN

Support for 802.1x-RADIUS authentication and IP address filtering security strategy

Support for port-based, 802.1p and DSCP priority

Support port mirroring and port traffic statistics function

Support for Ping configuration and cable diagnostics

Support for import and export configuration files

Support Console port management

Support pure English WEB management interface

Dynamic LED indicator to show the state of equipment and provide a simple troubleshooting

19 inch standard rack-mounted steel design

Specification

Hardware Specification
Standards and Protocols			IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1p
Fixed Port			24 10/100/1000M auto-negotiation RJ45 port 2 gigabit uplink RJ45/SFP(mini GBIC) multiplex port
Cable Type			10Base-T: Category 3/4/5 UTP, support maximum transmission distance 100m 100Base-TX: CAT5 UTP, support maximum transmission distance 100m 1000Base-T: CAT5e UTP, support maximum transmission distance 100m
Fiber Type			50/125µm multimode fiber, transmission distance 550m 9/125µm single mode fiber, transmission distance 10km 9/125µm single mode fiber, transmission distance 40km 9/125µm single mode fiber, transmission distance 80km
LED Indicators			Power, Link/Act 1~24, Speed 1~24
Background Bandwidth			48Gbps
MAC Address Table			8K
Forwarding Rate			10Mbps: 14880PPS 100Mbps: 148800PPS 1000Mbps: 1488000PPS
Dimensions (W x H x D)			44018044(mm)
Input Voltage			100V~240VAC,50/60Hz
Power Consumption			< 30W
Working Temperature			0ºC~40ºC
Store Temperature			-40ºC~70ºC
Operating Humidity			10%~90% RH Non-Condensing
Storage Humidity			5%~90% RH Non-Condensing
Heat Dissipation			Fan heat dissipation
Software Specification
Port Management		Port bandwidth control		Support
		Broadcast Storm Control		Support
		Port traffic statistics		Support
		Trunk		Support maximum 8 groups, every group maximum 24 ports
		Port mirroring		Support
VLAN Setting		Port-based VLAN		Support
		Based on 802.1Q VLAN		Support (4K)
STP		RSTP		Support
Multicast Application		IGMP(V1, V2)Snooping		Support
QoS Settings		QOS settings		Port-based, 802.1p, DSCP
		Queues scheduling algorithm		Strict Priority (SP), Weighted Round Robin (WRR)
Security Settings		802.1Xd port authentication		Support
		IP address filtering		Support
System Management		WEB management		Support
		Console management		Support
		LACP status display		Support
		RSTP status display		Support
		IGMP status display		Support
		Ping allocation		Support
		Cable Diagnose		Support
		Configuration files import and export		Support
		Software Upgrade		Support
Packing
Packing List	Ÿ Power line Ÿ OFS-GSFT24F02M smart ethernet switch Ÿ User manual Ÿ Mounting bracket and screw Ÿ Rubber foot
