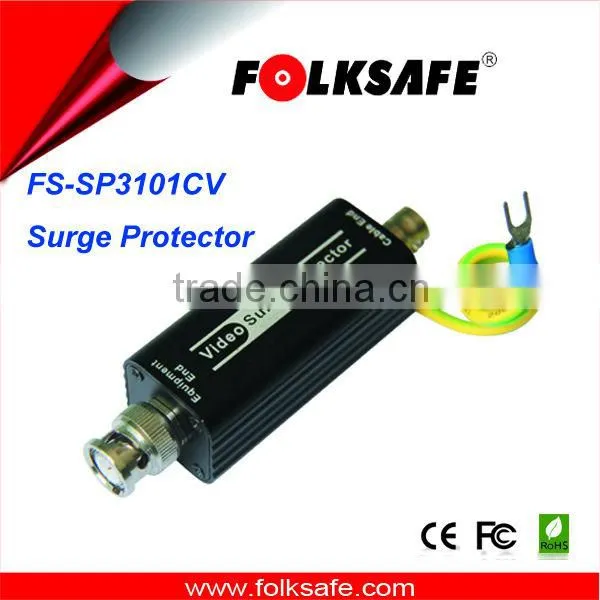

FS-SP3101CV Coaxial Video Surge Protector for FM Receivers, Video Camera

Name: FS-SP3101CV Coaxial Video Surge Protector for FM Receivers, Video Camera
Brand: FOLKSAFE
SKU: 107909317

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

FOLKSAFE

Model Number:

FS-SP3101CV

Shenzhen Folksafe Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name FOLKSAFE

Model Number FS-SP3101CV

Specifications

1.Coaxial Video Surge Protector for CCTV Camera
2.Two stage protection
3.high frequency for both CCTV and CATV use

FS-SP3101CV Coaxial Video Surge Protector for FM receivers, video camera

1.BNC male to BNC female

2.high frequency for both CCTV and CATV use

3.Band Pass:0-1GHzProtect equiement from high voltage surges from nearby lightning strikes

4.Two stage protection:under 1ns-90v.over 10ns-12v

5.Application:CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR. VOD….etc.

Feature of coaxial video surge protector

Coaxial Video Surge Protector BNC Connector

BNC male to BNC female, Hi Frequency for both CCTV and CATV use

BAND PASS: 0~ 300MHz

Performs a different function than grounding requirements.

Protects equipment from high voltage surges from nearby lightning strikes.

Two stage protection: under 1ns-90V, over 10ns-12V.

Overview of coaxial video surge protector

Video Surge Protectors are applied in coaxial communication devices of CCTV/CATV/ VOD system and so on.

They play an important role in lighting strikes and surge protection. Video Surge protectors of coaxial communication

Signals are designed in accordance with IEC and National Standard. There’re various of coaxial connectors such

as F/N/ BNC. Video Surge Protectors are easy and convenient in installation. No need maintenance and low insertion loss.

Technical and Specification of coaxial video surge protector

Model	FS-SP3101CV
Product Name	Coaxial Video Surge Protector BNC connecto
Function	Coaxial Video Signal Surge Protection
Applied devices	CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR. VOD….etc.
Connector	BNC male and female
Nominal Operating Voltage (Un)	5V
Max Continuous Running Voltage (Uc)	8V
Nominal Discharge Current In (8/20us)}	5KA
Max Discharge Current Imax (8/20us)	10KA
Rated Load Current ( IL)	500mA
Limited Voltage	15V
Response Time	≤1ns
Max Transmission Rate	10Mbps
Matched Impedance	75Ω
Insertion Loss	<0.2dB
Housing	Aluminum alloy
Net weight	0.08kg
Dimension	582525mm
