Unmanaged faster Ethernet Switch with eight 100M SFP ports and one RJ45 Port

Specifications

Cable:Multimode Fiber:50/125,62.5/125 um
Singlemode Fiber:8/125,8.7/125,9/125 um
Low power consume (10W), low heat

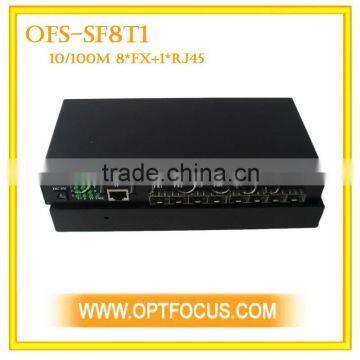

OFS-SF8T1





OFS Serier 9 ports 100M Ethernet Switch has eight 100M SFP sockets and one 10/100M UTP ports. Customer can choose different 100M SFP module according as his demand, such as Multimode or Singlemode, Single fiber or Dual fiber and Singlemode 20-100km etc. It is applicable to use in constructing of Optical Fiber Ethernet network.







Main features



     Provides 8 SFP sockets



    The SFP slot supports 100M at full duplex.



    Supports 802.3x flow control on full-duplex and Back-pressure flow control on half-duplex.



    Supports VLAN and QoS.



    Supports Trunking function.



    Support packet length up to 1600 Bytes



    Low power consume (10W), low heat, and good reliability.



    Store & forward, share memory, non-blocking architecture











Technical Specifications



    Standard compliance:IEEE802.3/u/z/ab, 1000Base-SX/LX.



    MAC address table: 8K



    Frame buffer memory:1MKb



    With 20 Gbps switch fabric



    Connector: SFP :100Mbps;



    Cable:Multimode Fiber:50/125,62.5/125μm(the max distance up to 224/550m)



Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km)



    Flow control:Full Duplex: IEEE802.3x flow control;



Half Duplex: back pressure flow control



    LED:PWR,SFP1 Link/Act, SFP2 Link/Act, SFP3 Link/Act, SFP4 Link/Act, SFP5 Link/Act, SFP6 Link/Act, SFP7 Link/Act, SFP8 Link/Act;



    Power Requirement: AC220V(100-240V),50~60Hz; DC:5V,3A



    Ambient Temperature::0 ~ +50°C;



    Storage Temperature::-20 ~ +70°C;



    Humidity:5% ~ 90%;



    Dimensions:30(high)×127(width)×210(length)mm;











Application

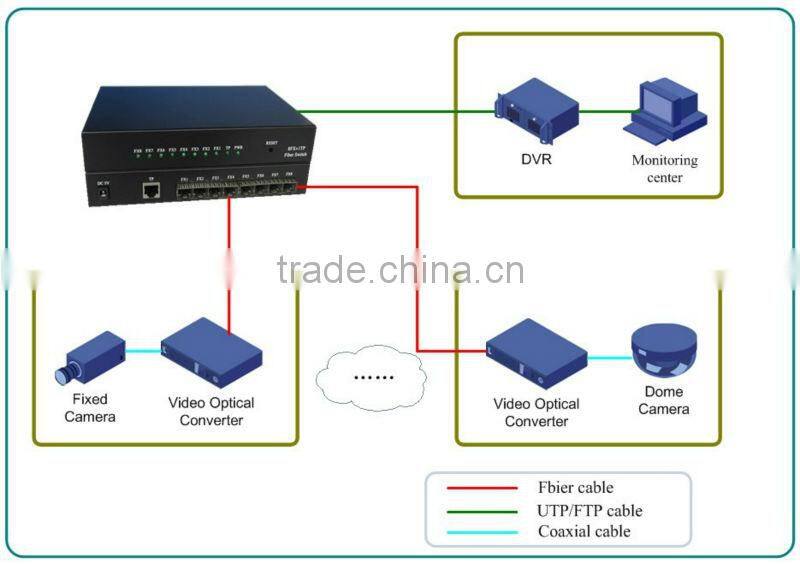

 Video monitoring application          Communications network applications
