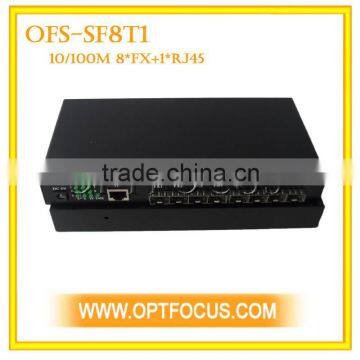

OFS-SF8T1
100M 8 SFP +1 RJ45 Ethernet Switch with eight SFP ports
OFS Serier 9 ports 100M Ethernet Switch has eight 100M SFP sockets and one 10/100M UTP ports. Customer can choose different 100M SFP module according as his demand, such as Multimode or Singlemode, Single fiber or Dual fiber and Singlemode 20-100km etc. It is applicable to use in constructing of Optical Fiber Ethernet network.
Main features
Provides 8 SFP sockets
The SFP slot supports 100M at full duplex.
Supports 802.3x flow control on full-duplex and Back-pressure flow control on half-duplex.
Supports VLAN and QoS.
Supports Trunking function.
Support packet length up to 1600 Bytes
Low power consume (10W), low heat, and good reliability.
Store & forward, share memory, non-blocking architecture
Technical Specifications
Standard compliance:IEEE802.3/u/z/ab, 1000Base-SX/LX.
MAC address table: 8K
Frame buffer memory:1MKb
With 20 Gbps switch fabric
Connector: SFP :100Mbps;
Cable:Multimode Fiber:50/125,62.5/125μm(the max distance up to 224/550m)
Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km)
Flow control:Full Duplex: IEEE802.3x flow control;
Half Duplex: back pressure flow control
LED:PWR,SFP1 Link/Act, SFP2 Link/Act, SFP3 Link/Act, SFP4 Link/Act, SFP5 Link/Act, SFP6 Link/Act, SFP7 Link/Act, SFP8 Link/Act;
Power Requirement: AC220V(100-240V),50~60Hz; DC:5V,3A
Ambient Temperature::0 ~+50℃;
Storage Temperature::-20 ~+70℃;
Humidity:5% ~90%;
Dimensions:30(high)×127(width)×210(length)mm;

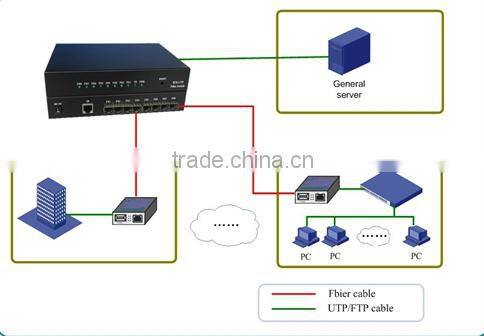

Application

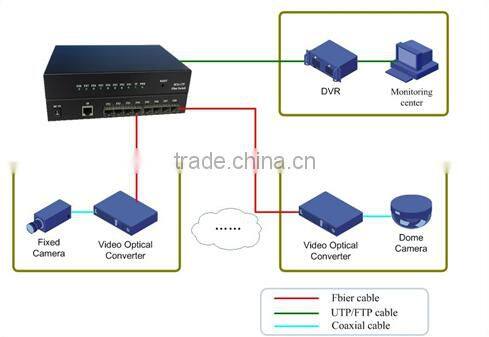

Security Control
Tele-Communication Application
Order Information
Model |
Product description |
OFS-SF8T1 |
9 ports Unmanaged faster Ethernet Switch with eight 100M SFP ports and one RJ45 Port. |
