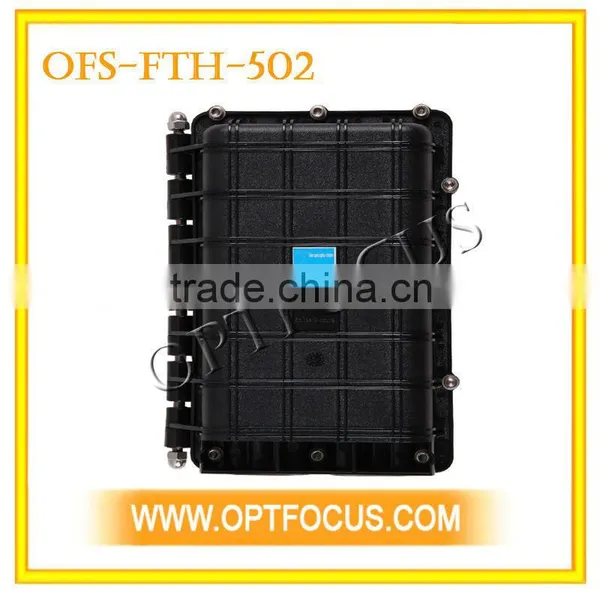

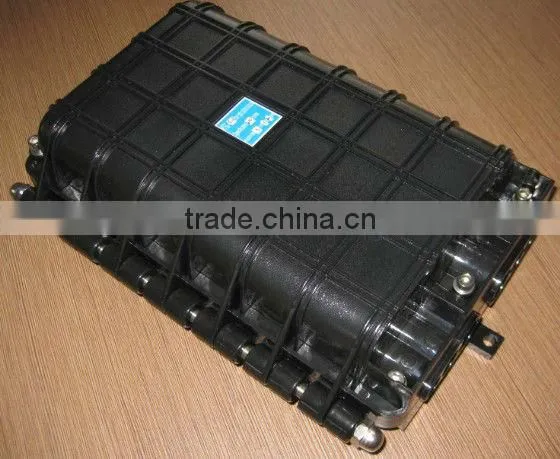

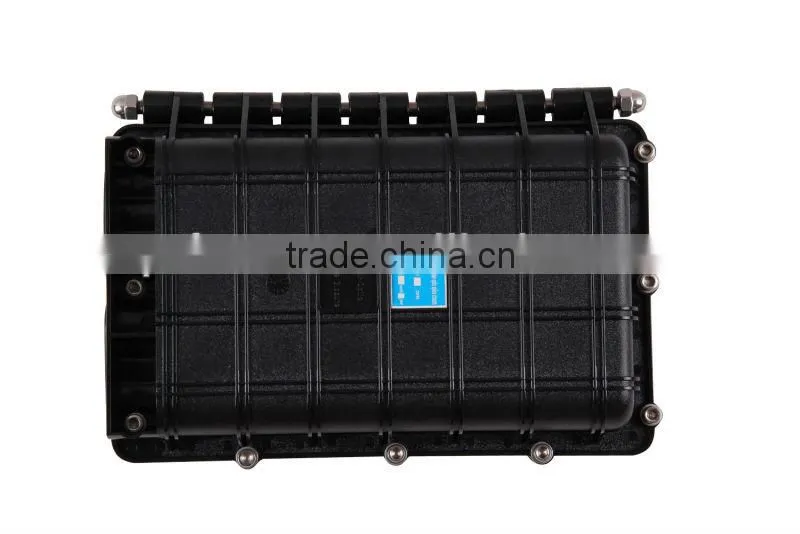

48 Cores FTTH Optical Fiber Distribution Splice Closure

Name: 48 Cores FTTH Optical Fiber Distribution Splice Closure
Brand: OPTFOCUS
SKU: 107908429
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OPTFOCUS

Model Number:

OFS-FTH-502

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fob shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OPTFOCUS

Model Number OFS-FTH-502

Specifications

Horizontal Fiber Optic Splice Closure.
The scope of application is: aerial, underground, pipeline, handhole.

Horizontal Fiber Optic Splice Closure (FOSC)

Features:

Convenient to increase or reduce trays/ cassette for capacity requirement

Improved reinforce rebar on the body of closure make excellent performance under impact, pulling, tension etc

3 fixing item/designs to prevent fiber cable from external effect

Spacious place for storing and maintenance

adapter plug-in fits a variety of adapters such as SC, FC, LC (duplex).

Can be used from 40 °C to +65°C temperature range

Integrated seal, air tight and water proof, flame-retarded

Suitable for aerial, wall, underground duct or direct burial applications

Applications

Suitable for bunchy fibers

Aerial,underground,wall-mounting,hand hole-mounting and duct-mounting

It's especially applicable to FTTH optical fiber distribution

OFS-FTH-502 Fiber Optic Splice Closure Datasheet

Model No.	Size (mm) L×W×H	Core capacity	Cable Ports (max)	Max diameter of cable (mm)	Adapter and holes of Front Panel
OFS-FTH-502	323x202x86	48 cores	6	2×Ø20 2×Ø16 2×Ø13	FC adapters:6PCS
					SC adapters:8PCS
					ST adapters:8PCS
					LC adapters:8PCS

2.2 Main components

No.		Name of components	Quantity	Usage	Remarks
1		Housing	1 set	Protecting fiber cable splices in whole	Internal diameter: 240x148x76(mm)
2		Fiber optic splice tray (FOST)	Max 8 pieces (bunchy)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy: 12,24, (cores)
3		Seal fitting	1 set	Sealing between FOSC cover and FOSC bottom
4		Port plug	6 pieces	Sealing empty ports
6	Pressure testing valve		1 set	After injecting air, it is used for pressure testing and sealing testing	Configuration as per requirement
7	Earthing deriving device		1 set	Deriving metallic components of fiber cable in FOSC for earthing connection	Configuration as per requirement

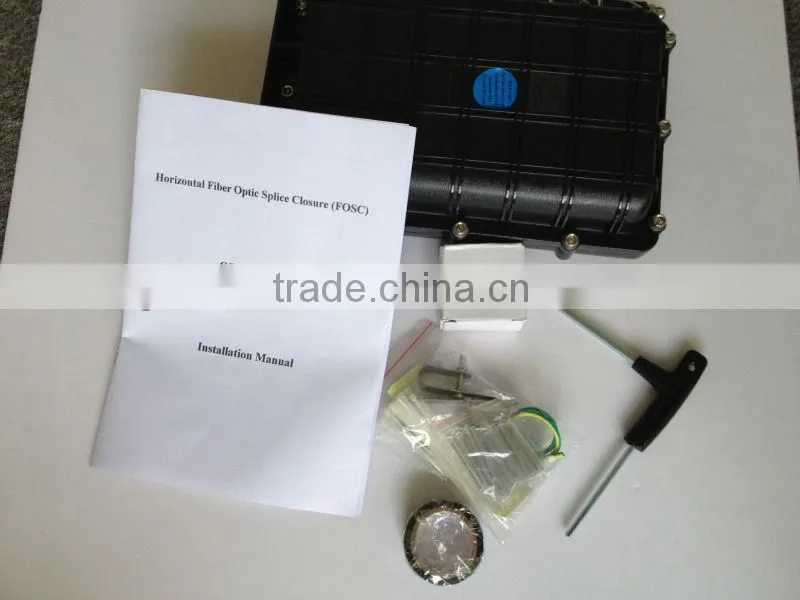

2.3 Main accessories and special tools

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Insulation tape	1 roll	Enlarging diameter of fiber cable for easy fixing
4	Desiccant	1 bag	Put into FOSC before sealing for desiccating air.
5	Seal tape	1 roll	Enlarging diameter of fiber cable which fits in with seal fitting	Configuration as per specification
6	Hanging hook	1 set	For aerial use
7	Earthing wire	1 piece	Putting through between earthing devices
8	Abrasive cloth	1 piece	Scratching fiber cable
9	Labeling paper	1 piece	Labeling fiber
10	Special wrench	2 pieces	Fixing bolts, tightening nut of reinforced core
11	Measuring paper	1 piece	To measure circle, of which its diameter is enlarged with seal tape
12	Buffer tube	To be decided by customers	Hitched to fibers and fixed with FOST, managing buffer	Configuration as per requirement
