Horizontal Seal Splitter Splice Closure

Name: Horizontal Seal Splitter Splice Closure
Brand: OPTFOCUS
SKU: 107908465
Availability: InStock

Shenzhen Optfocus Technology Co., Ltd.

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OPTFOCUS

Model Number:

OFS-FTH-502

Payment & Shipping

Payment Methods:

Port of Shipment:

Fob shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OPTFOCUS

Model Number OFS-FTH-502

Specifications

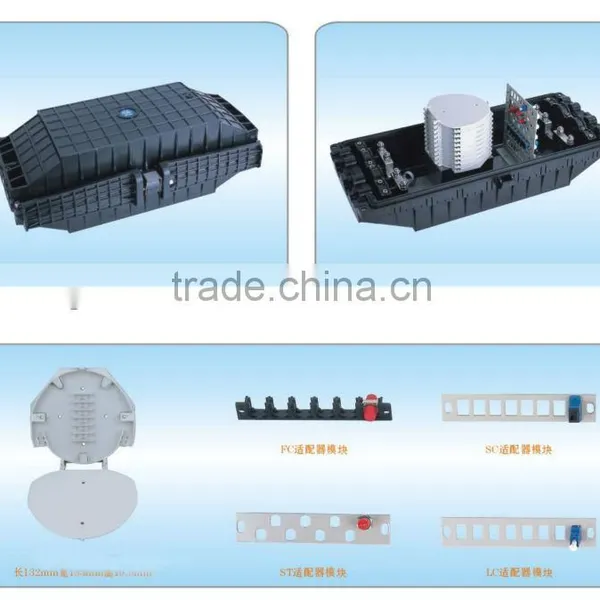

Horizontal Fiber Optic Splice Closure.
The scope of application is: aerial, underground, pipeline, handhole.

Horizontal Seal Splitter Splice Closure

Features:

Convenient to increase or reduce trays/ cassette for capacity requirement
Improved reinforce rebar on the body of closure make excellent performance under impact, pulling, tension etc
3 fixing item/designs to prevent fiber cable from external effect
Spacious place for storing and maintenance
adapter plug-in fits a variety of adapters such as SC, FC, LC (duplex).
Can be used from 40 °C to +65°C temperature range
Integrated seal, air tight and water proof, flame-retarded
Suitable for aerial, wall, underground duct or direct burial application

OFS-FTH-503 Fiber Optic Splice Closure Datasheet

Model No.	Size (mm) L×W×H	Core capacity	Cable Ports (max)	Max diameter of cable (mm)	Adapter and holes of Front Panel
OFS-FTH-503	590x320x215	240	8	4×Ø41 4×Ø20	FC adapters:48PCS
					SC adapters:96PCS
				4×Ø26 4×Ø20	ST adapters:96PCS
					LC adapters:96PCS

Remarks:

OFS-FTH-503 accommodates one set of elastic seal fitting for 8 inlet/outlet ports.
Installation accessories provided: seal tape, insulation tape,3 pieces of special wrenches, abrasive cloth, earthing wire, nylon ties, labeling paper, measuring paper and desiccant.
Accessories by customers’ selection: earthing device, buffer pipe for bunchy fiber, pressure testing valve, adapter panel, adapter, pigtail, patchcord, wall-mounting bracket and pole mounting bracket.

2 Main components

No.		Name of components	Quantity	Usage	Remarks
1		Housing	1 set	Protecting fiber cable splices in whole	Internal diameter: 500x205 (mm)
2		Insert plate	2 pairs	Fixing the housing	220x80x35(mm)
3		Fiber optic splice tray (FOST)	Max 10 pcs (bunchy Max 9 pcs (ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy:24,36,48,72(cores) Ribbon:6,12,18 (pieces)
4		Fixing bracket	1 set	Fixing fiber cable and reinforced core
5		Foundation	1 set	Fixing FOST
6		Seal fitting	1 set	Sealing between FOSC cover and FOSC bottom
7		Port plug	8 pieces	Sealing empty ports
8	Pressure testing valve		1 set	After injecting air, it is used for pressure testing and sealing testing	Configuration as per requirement
9	Earthing deriving device		1 set	Deriving metallic components of fiber cable in FOSC for earthing connection	Configuration as per requirement

2.3 Main accessories and special tools

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Insulation tape	1 roll	Enlarging diameter of fiber cable for easy fixing
4	Seal tape	1 roll	Enlarging diameter of fiber cable which fits in with seal fitting	Configuration as per specification
5	Hanging hook	1 set	For aerial use
6	Earthing wire	1 piece	Putting through between earthing devices	To put through as per actual requirement
7	Abrasive cloth	1 piece	Scratching fiber cable
8	Labeling paper	1 piece	Labeling fiber
9	Special wrench	3 pieces	Fixing bolts, tightening nut of reinforced core
10	Measuring paper	1 piece	To measure perimeter, of which the diameter is enlarged with seal tape	To measure perimeter with the corresponding measuring paper
11	Buffer tube	decided by customers	Hitched to fibers and fixed with FOST, managing buffer	Configuration as per requirement
12	Desiccant	1 bag	Put into FOSC before sealing for desiccating air.
13	Rubber hammer	1piece	Knocking in or knocking out inset plate
