Specifications
OFS-SCV03E fiber optic splice closures are used for main optical cables.It can be installed in aerial locations, direct buried.OFS-SCV03E fiber optic splice closures
Description:
OFS-SCV03E fiber optic splice closures are used for main optical cables.It can be installed in aerial locations, direct buried.
The optic fiber splice closures are widely apply for the connecting of optical cable. The dome material mixed chemical agent to resist corrosion and aging and also provide ultra-violet protection.
1. Single-ended thermoplastic closure
2. Fabricated by mixing the imported material and other chemical assistant agent(ageing resistance & ultraviolet radiation resistance), increase of service life
3. Base-to-dome seals on FOSC are mechanical and heat-shrinkable for ease of installation and reentry. No other sealing adhesive tape is needed
4. Base and dome sealed with clamp and O-ring system

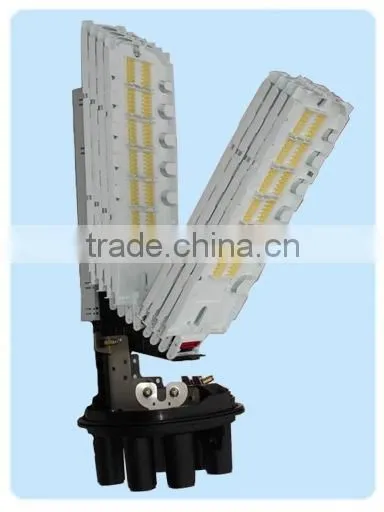

5. The splice trays are hinged for access to any splice without disturbing others trays
6. The inner parts and fixing parts are made of stainless steel
7. FOSC with a earthing device protect it from damage by lightning
8. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
9. No special tools are needed to open the closure, and it can be opened and used repeatedly
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥40mm. Low optical loss
Maximun Capacity: 288 fibers(single fiber)
Ribbon: 864fibers
