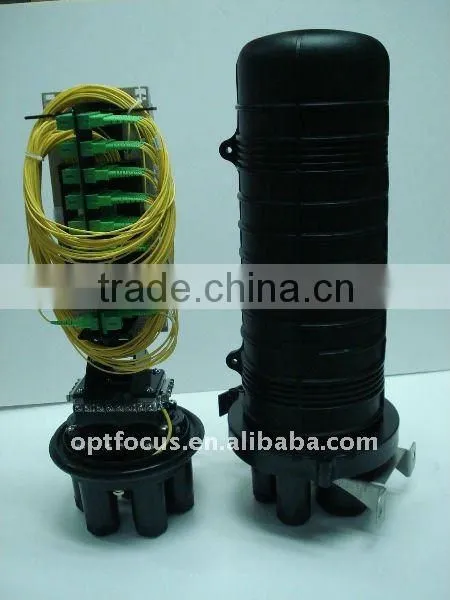

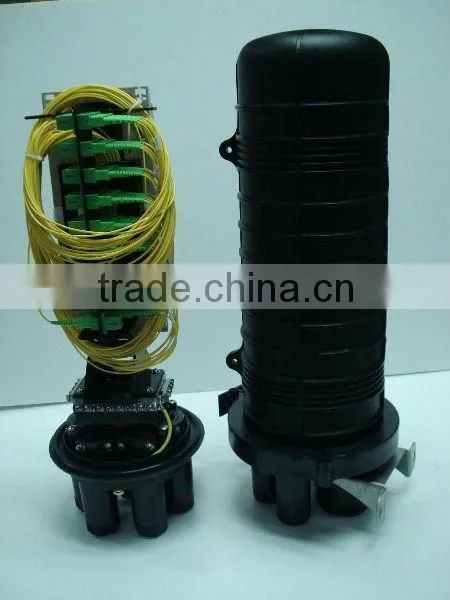

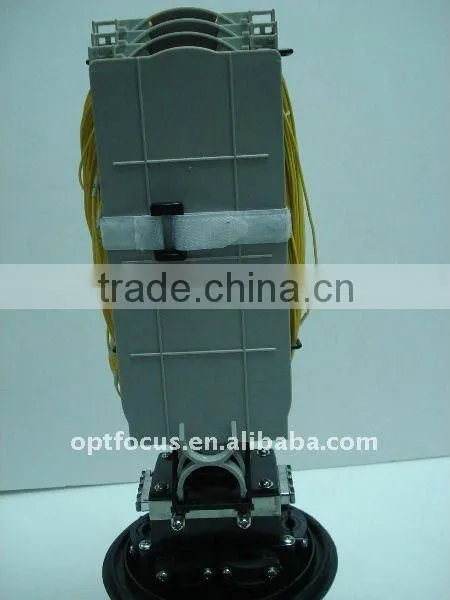

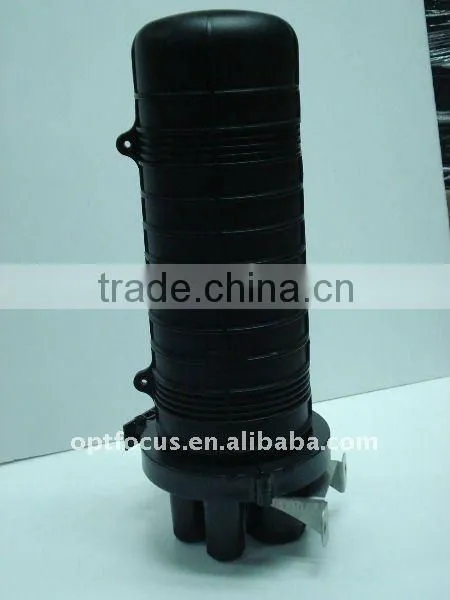

PLC Splitter Closure

Name: PLC Splitter Closure
Brand: OPTFOCUS
SKU: 107907813

US$ 45 - 60 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OPTFOCUS

Model Number:

OFS-FTH-VM5

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OPTFOCUS

Model Number OFS-FTH-VM5

Specifications

1.specialized designed for FTTx application
2.closure for splitter
3.nice appearance,good quality

1. Features

Made from engineering plastic with high strength and anti-corrosion.

·Available 2 pcs of 1x16 or 2x16 or 1 pcs of 1x32 or 2x32 splitter.

·Suitable for wall-mounting or pole mounting application

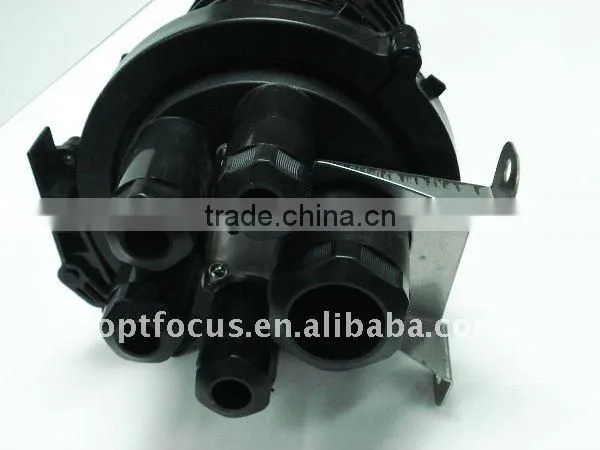

·1 pcs of large round port for uncut cable and 4 pcs of small round port

·suitable for module type of PLC splitter with SC connector or LC connector, etc

·Suitable for SC, or LC connect or customerized

·Sealing method: mechanical sealing type

·dimension (H*D): 510x230mm

2. Application

1. FTTH, FTTB, FTTC

2. Telecommunication Network

3. CATV

4. Local Area Network

3 Basic structure and configuration

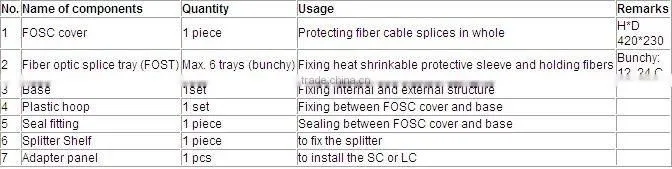

4.1 Main components

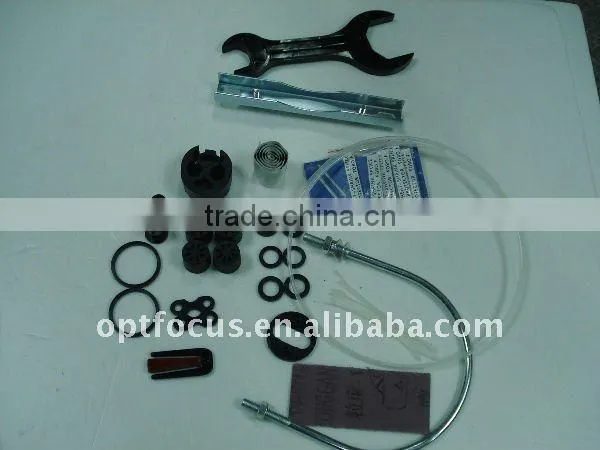

4.2 Main accessories and special tools

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Earthing wire	1 piece	Putting through between earthing devices
4	Dry agent	l bag	Put into FOSC before sealing for desiccating air
5	Labeling paper	1 piece	Labeling fibers
6	Special wrench	1 piece	Tightening nut of reinforced core
7	Emery paper	1 piece	To scratch the optical cable
8	Sealing tape	1 piece	To enlarge the optical cable
9	Installation tape	1 piece	To enlarge the optical cable
10	Metal hoop	1 set	For wall mounting and pole hugging
11	Buffer tube	decided by customers	Hitched to fibers and fixed with FOST, managing buffer.	Configuration as per requirement
12	Seal ring	Decide by customers	For small or large port on the base	As per requirement
13	pigtail	Decide by customers		As per requirement
14	splitter		PLC or FBT type
15	adapter		SC or LC
