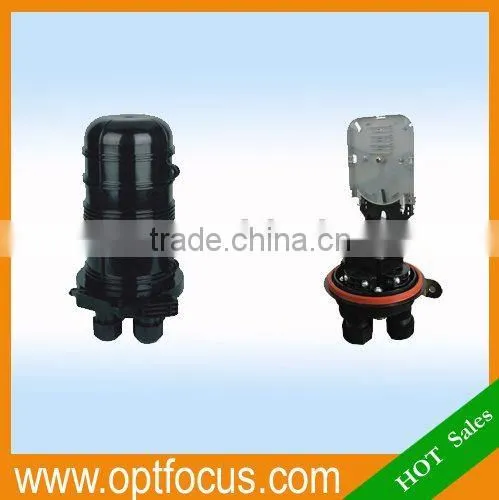

48 cores fiber splice closure

Specifications

96 cores fiber splice closure:
Holds up to 48 fibers.
Easy to re-enter

48 cores fiber splice closure

Features & Applications:

Holds up to 48 fibers.
Easy to re-enter
Cable entry/exit ports
Pressure testing valve and earth deriving device
Intergrated seal, air tight and water proof
Ideal for cable repair
RoHS compliant
Can be used in through, branch or mid span splice locations
Suitable for aerial, underground duct or direct burial applications

Specifications:

Model No.	Size(mm)D×H	Cable ports	Cable Diameter	Max. Capacity (bunchy fiber)	Core capacity per tray	Sealing structure
OPT-D013	φ178×288	4	φ15 (max.) φ7(min.)	48	12	Mechanical sealing

Remark:

1. One kinds of elastic ring provided: Ø15mm. Ø15 can be shrunk till Ø7.

2. The fittings provided: 2pcs of special wrench, earthing wire, nylon tie, labeling paper, desiccant, 4 pieces of elastic ring, 4 pieces of plastic gaskets.

3. Accessories for customers' selection: earthing deriving device, pressure testing valve, buffer tube for bunchy fiber, 1 piece metal hoop.
