Specifications
48 cores Splice closureRoHS compliant Can be used in through, branch or mid span splice locations

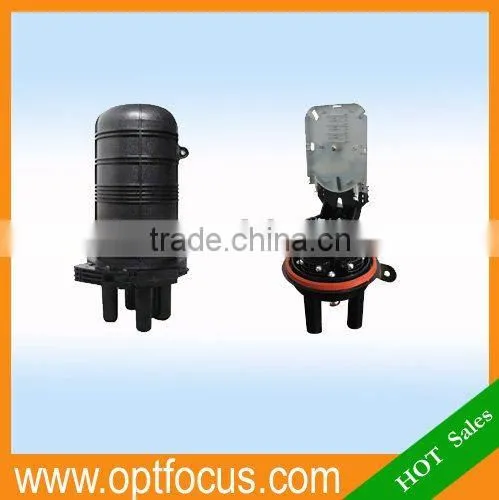

48 cores Splice closure
Holds up to 48 fibers.
Easy to re-enter
Cable entry/exit ports
Pressure testing valve and earth deriving device
Intergrated seal, air tight and water proof
Ideal for cable repair
RoHS compliant
Can be used in through, branch or mid span splice locations
Suitable for aerial, underground duct or direct burial applications
Specifications:
Model No. |
Size(mm)D×H |
Cable ports |
Cable Diameter |
Max. Capacity (bunchy fiber) |
Core capacity per tray |
Sealing structure |
OPT-D015 |
φ178×288 |
4 |
φ25 (max.) φ7 (min.) |
48 |
12 |
Heat-shrinkable sealing |
Remark:
1. 4 inlet/outlet ports provided: 3 small ports suit for single fiber cable with max Φ16mm and 1 mass port suits for 1pc fiber cable with a max Φ25 or 2pcs fiber cables with max Φ21, or many smaller fiber cables at the same time. The amount of heat shrinkable fixing sleeve is additionally ordered to the customers' actual need.
2. The fittings provided:aluminum-foil paper, earthing wire, nylon tie, labeling paper and desiccant.
3. Accessories for customers' selection: pressure testing valve, earthing deriving device, branching clip, heat shrinkable fixing sleeve, buffer tube for bunchy fiber and 1 set of metal hoop.
4. It suits for straight-through fiber cable and branching fiber cable at the same time which save installing time and also improve telecommunication quality.
