Specifications
An ODF with a standard 19' structure for rack mounting,it is available for the installation of FC, SC, ST and LC adaptors
Fixed 19' Terminal Box
1. Description:
Applicable in the branch connection of fiber termination,working as distribution box
The patchpanels is designed for the branch connection of fiber terminations.
An ODF with a standard 19” structure for rack mounting,
it is available for the installation of FC, SC, ST and LC adaptors.
With an electrostatically coated steel plate body, this comes complete with splice trays and mounting screws etc. and can be supplied fully loaded with pigtails and adapters.
12, 24, 48, 96 … capacity customized
Material: cold rolled steel plate
Insertion Loss ≤ 0.2dB
Return Loss ≥ 55dB
Order Guide
Type |
Dimension(mm) |
Max capacity cores |
Remark |
OFS-RJ01-12SC |
480*250*1U |
12 |
The body is made of cold rolled steel sheet,with electrostatic spraying.We can install adaptors for you,available for FC,ST,SC,LC .
|
OFS-RJ01-24SC |
480*250*1U |
24 |
|
OFS-RJ01-48SC |
480*250*2U |
48 |
|
OFS-RJ01-12FC |
480*250*1U |
12 |
|
OFS-RJ01-24FC |
480*250*1U |
24 |
|
OFS-RJ01-48FC |
480*250*2U |
48 |
|
OFS-RJ01-12ST |
480*250*1U |
24 |
|
OFS-RJ01-24ST |
480*250*1U |
24 |

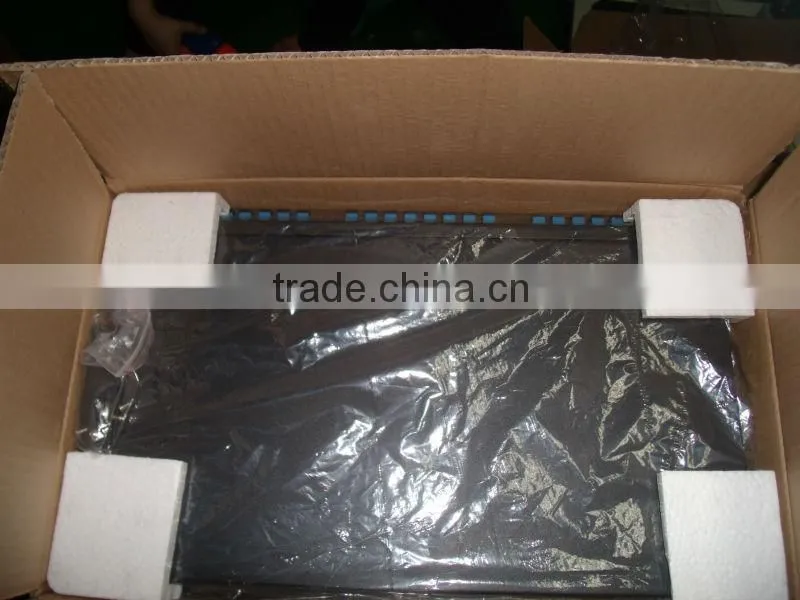

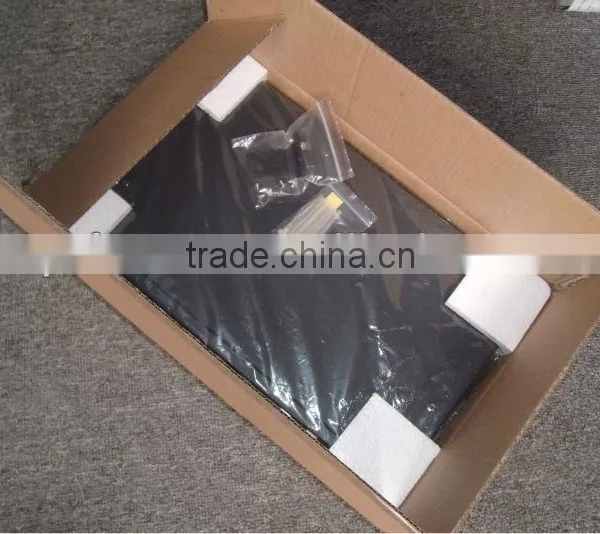

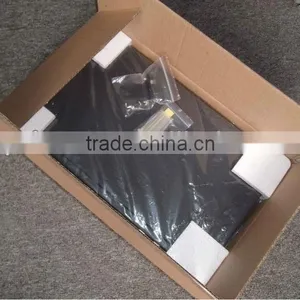

Packing information
Type |
Net size |
Net weight |
Packing size |
Packing weight |
No./carton |
OFS-RJ01-12SC |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
5 pcs |
OFS-RJ01-24SC |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
|
OFS-RJ01-48SC |
465*285*125mm |
3.8kg |
675*485*305 |
21.0kg |
|
OFS-RJ01-12FC |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
|
OFS-RJ01-24FC |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
|
OFS-RJ01-48FC |
465*285*125mm |
3.8kg |
675*485*305 |
21.0kg |
|
OFS-RJ01-12ST |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
|
OFS-RJ01-24ST |
Payment & Shipping Terms
Minimum Order Quantity: 1~2piece/pieces
Port: Shenzhen
Packaging Details:carton
Delivery Time:7 days
Payment Terms:T/T ,L/C,Western Union
Supply ability:1000piece/pieces per Week
Warranty:4 years
