Specifications
ODF1,12-144 CORES
2,Standard size 19"
3,reasonable structure
4,Change the front panel for different connectors

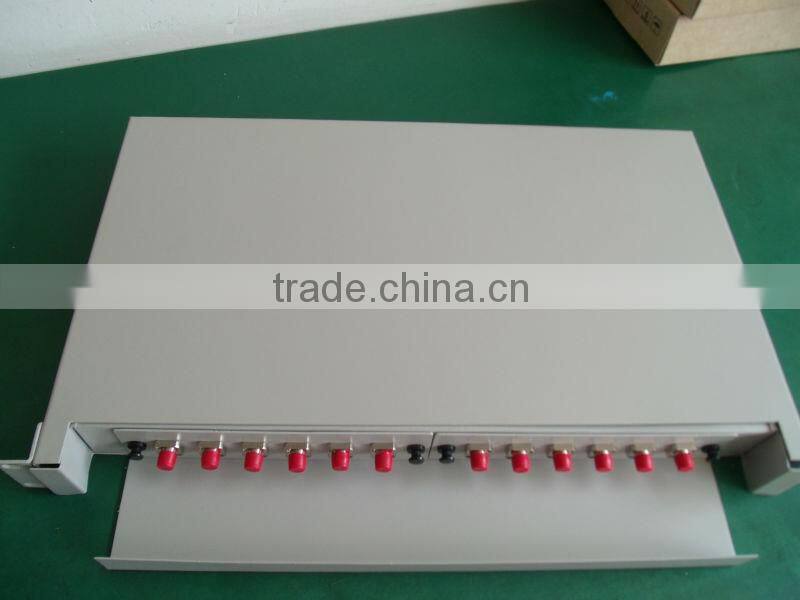

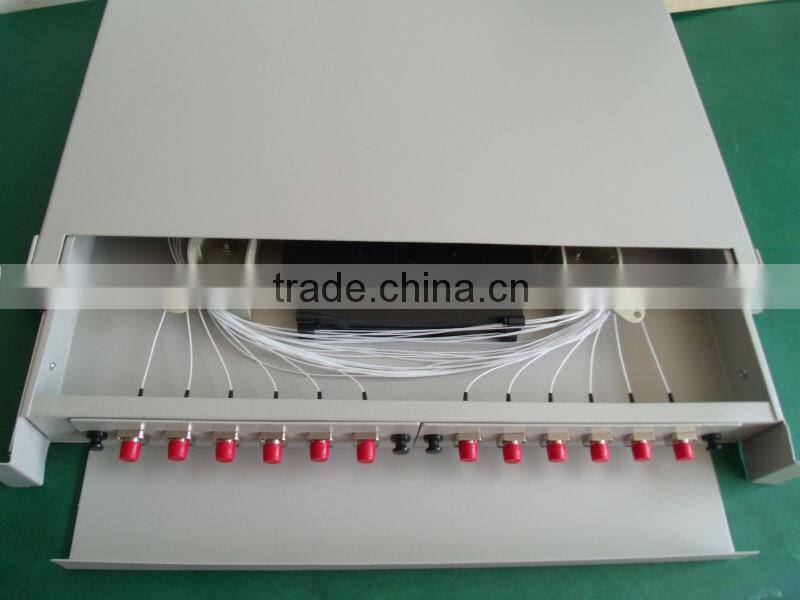

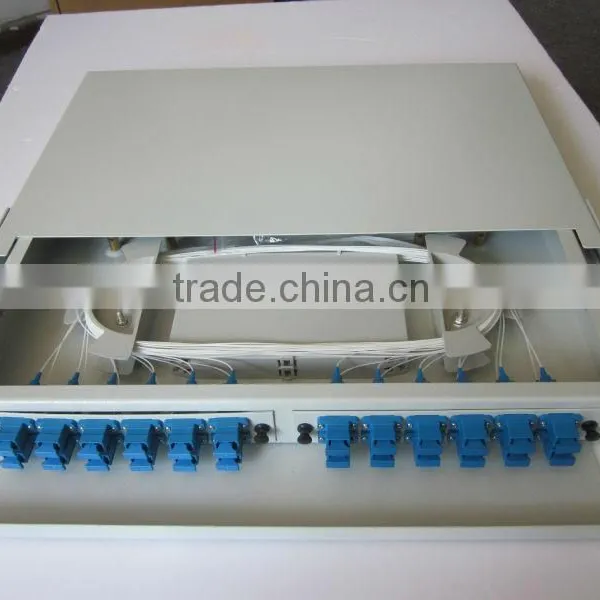

Slidable Rack-mount Fiber Optic Distribution Frame
Features
1.Standard size, light weight and reasonable structure
2.Slide out drawer for easy cable management
3. Suitable for ribbon and single fiber
4.Compact design for space saving
5.Various panel plate to fit different adapter interface
6.Front mark on the plate is easy for identification and operation
7.Easy for management and operation
Application
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Type in total
Model |
Dimension(mm) |
Max capacity cores |
Connector |
Weight/remark |
OFS-RS01-24 |
430*300*44.5 |
48(2U) |
FC,ST,SC/LC(duplex) |
5.5 |
OFS-RS02-24 |
465*425*44.5 |
48(2U) |
FC,ST,SC,LC(duplex) |
3.9 |
OFS-RS03-24 |
485×305 ×46 |
96(4U) |
FC,ST,SC,LC(duplex) |
5.3 |
OFS-RS04-24 |
450x 320x44.5 |
96(4U) |
FC,ST,SC,LC(duplex) |
4.2 |
OFS-RS05-24 |
465*330*75 |
48(1U) |
FC,ST,SC,LC(duplex) |
6.5 |
OFS-RS06 -24 |
1U |
24 |
FC,ST,SC,LC(duplex) |
3.9 |
Payment & Shipping Terms
Minimum Order Quantity: 1~2piece/pieces
Port: Shenzhen
Packaging Details:carton
Delivery Time:7 days
Payment Terms:T/T ,L/C,Western Union
Supply ability:1000piece/pieces per Week
Warranty:2years
