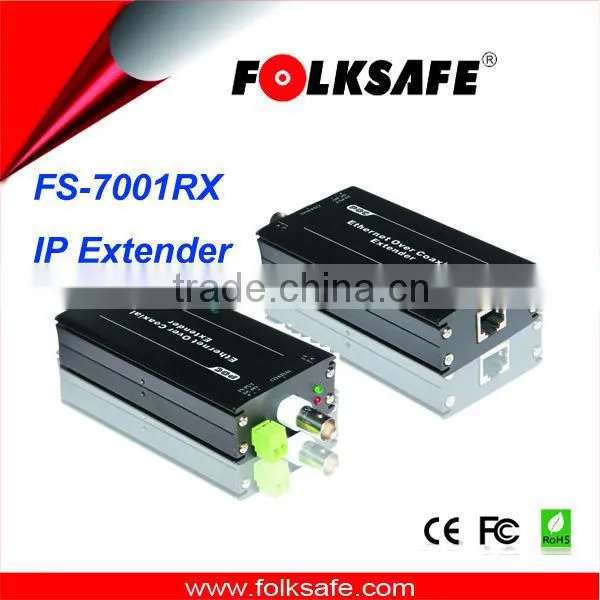

1 single channel Ethernet and power receiver over coax cable, Folksafe FS-7001RX, IP extender, receiver

Specifications

1- CH Ethernet and power receiver
Over coax
DC output: support 40W
Ethernet transmission distance 2000m
Power distance 500m



  1 single channel Ethernet and power receiver over coax cable, Folksafe FS-7001RX, IP extender, receiver



 Features:

• Single Channel Ethernet signal and power Receiver

• Using coaxial cable transmits Ethernet signal and power. Maximum transmission distance of Ethernet signal

  can be 2000 meters and 500 meters of power with max 12V2A power supply.

• Accord with standards of EEE802.3 10BASE-T,IEEE802.3u 100BASE-TX.

• With high speed modem technology, the physical broadband can up to 200Mbps.

• Built-in multi-stage surge and lightning protection design.

• Low power consumption, automatic error-correction coding technology.

• Easy installation, good presentation, fast network connection.

Overview:

Ethernet signal and power transmitter FS-7001RX can transmit high speed Ethernet signal and power via

coaxial cable. Its maximum transmission distance for Ethernet signal is 2000 meters and 500 meters for power.

By adopting advanced OFDM technology to process the data, FS-E7001RX has high capacity of anti-jamming in real operating environment and its physical broadband can up to 200Mbps. With built-in multi-stage surge and lightning protection design, FS-E7001RX avoids devices from lightning damage.

This product can be widely used in fields such as network expanding system, network security system, networkinformation distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations etc.



Applications:

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses



Installation:

1.Connect FS-7001TX remote LAN port to network device RJ45 output; Connect 12VDC power output port

with network device power interface; Fix BNC connector on both end of coaxial cable and connect one end

with FS-7001TX BNC interface.



2. Connect FS-E7001RX LAN port to network device RJ45 input; connect the other end of coaxial cable to

FS-7001RX BNC interface; Plug 48VDC power into the power interface of the transmitter. Check and ensure

all connections are right, then connect power supply.



3. With internet connected, device tries connection automatically. Link indicator (yellow light) turns on and

indicates coaxial cable is well connected; green light quick shining means internet signal transmission is in

normal.





  1 single channel Ethernet and power receiver over coax cable, Folksafe FS-7001RX, IP extender, receiver







 Technical  Specifications:



Description		Ethernet & power coaxial transmitter
Model		Receiver
Power supply	Power adapter	Input:100-240VAC Output:48VDC/1.5A
	No Load Consumption	1.8W(max)
RJ45 interface and specification	Ethernet Interface	RJ45 Interface
	transmitting distance	100m(max)
	Standards	IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
	Physical speed	200Mbps(max)
Coaxial cable interface and specification	Coaxial cable interface	BNC connector
	characteristic impedance	75 Ohm
	Maximum Distance	2000m
Transmission rates	Distance	Broadband
	300m	91Mbps
	500m	86Mbps
	800m	82Mbps
	2000m	35Mbps
State  Indicators	Green Light	Coaxial cable connecting indicator
	Red Light	Internet signal running indicator
Lightning protection grade	transmission ports	Differential Mode:2KV   Common Mode:4KV Execution standard: IEC61000-4-5
	Device	1a contact discharge 3 grade   1b aerial discharge 3 grade Executive Standard: IEC61000-4-2
Working Circumstance	Working Temperature	0~55℃
	Storing Temperature	-25℃~85℃
	Dampness(no condensing)	0~95%
Mechanical	Size	103*54*26mm
	Housing material	Aluminum
	Color	Black
	Weight	145g



Application Diagram:
