Specifications
Video balun for cctvFolksafe IP extender over coax cable,
model FS-7001P
Transmit IP camera signal over existing coaxial
Video balun for cctv, Folksafe IP extender over coax cable, model FS-7001P
Features
• Transmit IP camera signal over existing coaxial cable
• Transmission distance max up to 200m• Passive device, no power required
• Transmission Rate/Bandwidth: 10Mbps• Full duplexer Transmissions
• Built-in Surge Protection
• High quality and performance
• Fast and easy to install
Overview
FS-7001P is designed to extend IP camera signal over existing coaxial cable, used in pairs with RG59 cable to exceed the IEEE 802.3 10BaseT NEX specification. Transmission distance reaches max up to 200meters at 10Mbps speed. FS-7001P is low cost and easy, simple and speedy migration from Analog to IP camera's using existing coax cable.
Applications
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
>Fast and easy to install
Technical Specifications
Model |
FS-7001P |
Product Name |
Single Channel Passive IP Transmitter / Receiver |
Applied devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
Video Format |
PAL, NTSC, SECAM |
Standard |
IEEE802.3 10Base-T |
Bandwidth |
10Mbps |
Impedance |
50Ω to dual 100Ω or 75Ω to dual 100Ω or 93Ω to dual 100Ω |
Max Distance |
200m/650ft |
Crosstalk |
> 30 dB |
Connector |
Female / Male BNC, RJ45 jack |
Cable |
Coax Cable (RG59) |
Power |
No external power required |
Housing |
ABS engineering plastic |
Body Color |
Black |
Dimensions(L*W*H) |
60.4*29*20.4mm (BNC connector & cable excluded) |
Net Weight |
60g |
Operating Temperature |
-20º ~ 70º C |
Relative Humidity |
0~95% (non-condensing) |
Storage Temperature |
-40º ~ 150º C |

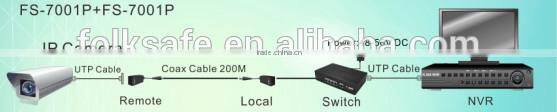

Video balun for cctv, Folksafe IP extender over coax cable, model FS-7001P Application Diagram:
Choose us not only because of our good product,
good quality; but also because of your wisdom! : )
Warmly welcome your inquiry about our products!
