Feature

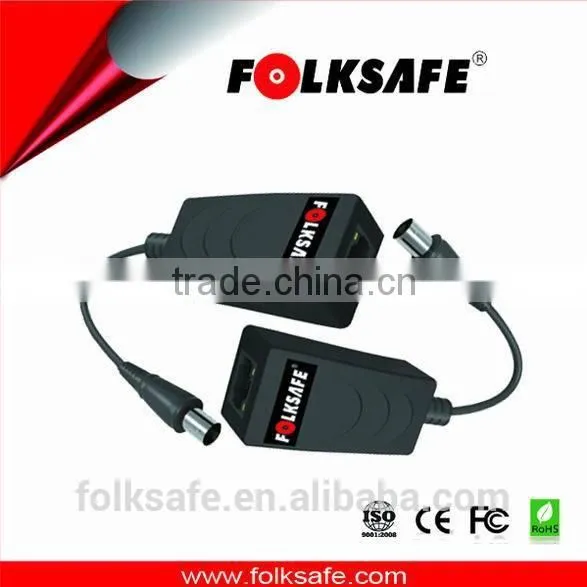

Ethernet Extender over Coax cable
• Transmit IP camera signal over coaxial cable
• Transmission distance max up to 200m
• Passive device, no power required
• Transmission Rate/Bandwidth: 10Mbps
• Full duplexer Transmissions
• Built-in Surge Protection
• High quality and performance
• Fast and easy to install
Applications
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses>Fast and easy to install
Model |
FS-7001P |
Product Name |
Single Channel Passive IP Transmitter / Receiver |
Applied devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
Video Format |
PAL, NTSC, SECAM |
Standard |
IEEE802.3 10Base-T |
Bandwidth |
10Mbps |
Impedance |
50Ω to dual 100Ω or 75Ω to dual 100Ω or 93Ω to dual 100Ω |
Max Distance |
200m/650ft |
Crosstalk |
> 30 dB |
Connector |
Female / Male BNC, RJ45 jack |
Cable |
Coax Cable (RG59) |
Power |
No external power required |
Housing |
ABS engineering plastic |
Body Color |
Black |
Dimensions(L*W*H) |
60.4*29*20.4mm (BNC connector & cable excluded) |
Net Weight |
60g |
Operating Temperature |
-20º ~ 70º C |
Relative Humidity |
0~95% (non-condensing) |
Storage Temperature |
-40º ~ 150º C |
Certification
Exhibition
Company and Factory show
