Help CenterSC Duplex Fiber Optic Cable
Related Products
Specifications
1.OPTFOCUS-SC Duplex fiber optic cable is low Insertion Loss and high Return Loss.2.In line with international standards
.

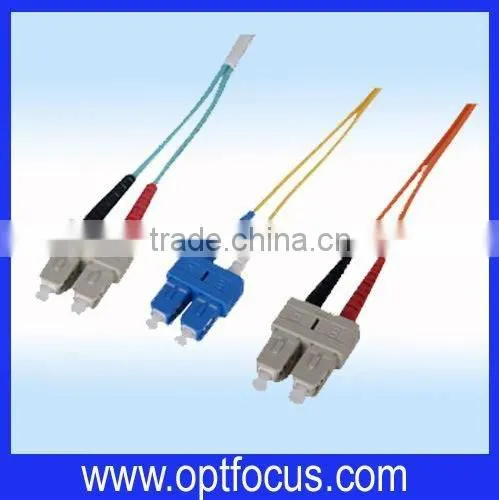

SC Duplex patch cords
Fiber to fiber interconnection patchcord is one of the most popular type used for telecommunication networks, cable networks and computor networks etc.
The main specific including SM/MM, SX/DX, PC/APC etc.
Click the picture on the right to check details.
Features&Availabilities
1.Plug-pull, key-oriented coupling mechanism
2.Simplex and Duplex Singlemode and multimode
3.PC and APC polishing
4.Interferential parameters
5.Hybrid patch-cords are available upon request
6.Fan-out available
7.Pigtail available
8.Compliant with Telcordia GR-326-CORE specification
Applications
1.Connection of optical transmission equipment
2.ODF of optical transmission system
3.CATV
4.High quality graphic transmission network
5.High speed data transmission network
6.Computer networks
7.Telecommunication networks
SC/PC Specifications
Type |
Singlemode (typical) |
Singlemode (maximum) |
Multmode (maximum) |
Insertion Loss |
≤0.15dB |
≤0.3dB |
≤0.3dB |
Return Loss |
≥55 dB |
≥50 dB |
≥25 dB |
Operating Temperature |
-40oC to +80oC |
-40oC to +80oC |
-40oC to +80oC |
SC/APC Specifications
Type |
Singlemode (maximum) |
Insertion Loss |
≤0.3dB |
Return Loss |
≥65 dB |
Operating Temperature |
-40oC to +80oC |
Payment & Shipping Terms
Minimum Order Quantity: 20piece/pieces
Port: Shenzhen
Packaging Details:1pcs /plastic bag400pcs/carton
Delivery Time:7 days
Payment Terms:T/T ,L/C,Western Union
Supply ability:10000 Piece/Pieces per Week
Warranty:1 year
