Help CenterHigh Quality Zirconia Ferrules FC Fiber Optical Patch Cord
Related Products
Specifications
1.Low insertion loss and high return loss Materials meet RoHS requiremen Riser, Plenum, and LSZH cables available2.good price
Product Name: FC FIBER OPTIC PATCH CORDS
Description
The FC* connectors used in our patch cordsare designed to NTT-FC* standards with high quality zirconia ferrules and nonoptical disconnect performance. They are fully compatible with existing FC hardware.
In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality. For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all
patch cords to meet these GR-326 requirements.
Other than standard single mode and multimode fibers, G655, OM2, and OM3 fibers are also available upon
request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as
standard. LSZH and Plenum can be provided upon request. Description
Features Applications
Non-optical disconnect performance Telecommunication
High quality zirconia ferrules Computer networks
Low insertion loss and high return loss CATV networks
Materials meet RoHS requirements Active device termination
Riser, Plenum, and LSZH cables Instrumentation
available

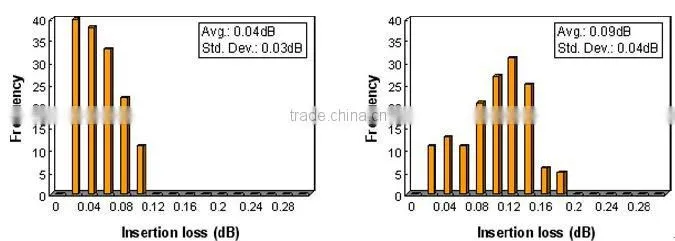

Optical Performance Distribution
Insertion Loss, MM 62.5/125um Insertion Loss, SM 9/125um PC
Typical performance charts and actual data may vary from lot to lot.
Dimensional Drawing
