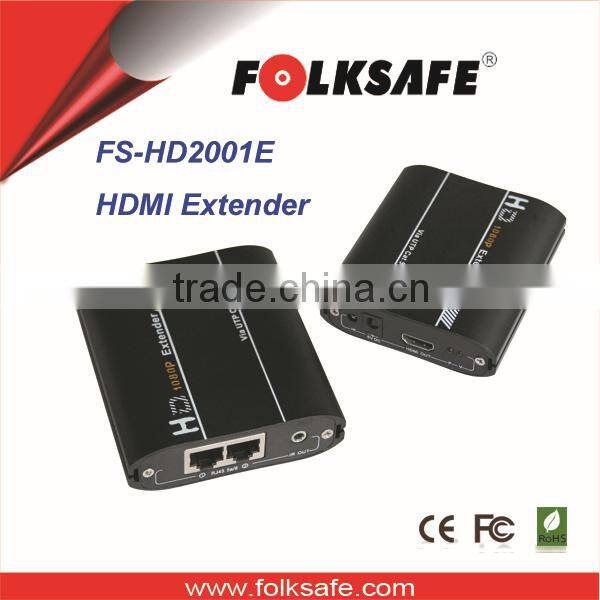

mini hdmi wireless transmitter, Remote control DVD player, Folksafe FS-HD2001E
• Transmits or Receives HDMI signal via 2 standard UTP cat5e/6
• HDTV resolution reaches up to 100m (480P ); up to 40m(1080p)
• Support HDMI 1.3, DDC and HDCP 1.2
• LED status to indicate HDMI activity
• Support audio format DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
• Support video input/output 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Fully Automatic Equalization;No system control required
• Remote control DVD player
• Anti-static Protection
• Built in TVS(Transient Voltage Suppressors) for surge protection
• Hardware installation, Software not required
• Black galvanized housing

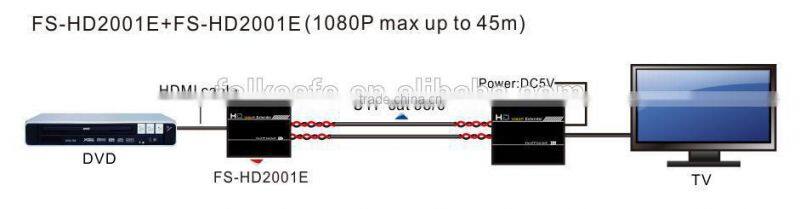

FS-HD2001E HDMI EXTENDER is a device that allows the transmission of real-time HDMI video and audio signal via cost-effective Unshielded Twisted Paired(UTP) cables. FS-HD2001E includes one Transmitter Unit placed beside computer, STB or DVD player and one Receiver Unit placed beside HD display. RJ 45 allows easy connection of UTP cable input.FS-HD2001E transmits and receives HDMI signal up to 100m via two UTP cat5e/6. It breaks the transmission limit of HDMI Cable. UTP cable is more flexible and convenient during cable installation.
Product Model |
FS-HD2001E (TX) |
FS-HD2001E (RX) |
Input port |
HDMI Connector Type A 19 pin Female |
2*RJ-45 Female |
Output port |
2* RJ-45 Female |
HDMI Connector Type A 19 pin Female |
LED Indicator |
Red: power |
Red: power |
Yellow: Remote control sends signal |
Green: HDMI activity |
|
Protection |
Lightning Protection |
15KV IEC61000-4-5 1995(GB/T 17626.5) 1000V, 10/700us IEC61000-4-5 1995(GB/T17626.5) |
Anti-static Protection |
Contact Discharge:+-8KV Air Discharge:15KV IEC6100-4-5 1995(GB/T 17626.5)IEC61000-4-2 |
|
Signal input/output |
Video input |
0.5 -1.0 volts p-p |
Video output |
1.0 volts p-p |
|
Max transmission speed rate |
10.2Gbps |
|
Input DDC signal |
5 volts p-p (TTL) |
|
HDMI Max input/output |
1920X1200, 1080Pand 36 digits colorific 1080p HDTV resolution 1920X1200, 1080Pand 366 digit colorific 1080p HDTV resolution |
|
Video Format |
HDMI input/output |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support HDTV |
Interlaced Scanning (50&60Hz) |
480i,576i,1080i |
progressive-scan(50&60Hz) |
480p,576p,720p,1080p |
|
PC |
VGA,SVGA,XGA,SXGA,UXGA and WUXGA |
|
Transmission Distance |
100m (480p) via UTP cat5e/6 40m(1080p) via UTP cat5e/6 |
|
Power Supply |
Power Adaptor |
5VDC output; 500mA , |
Operating Current |
400mA(Max) |
|
Power consumption |
2Watts (Max) |
|
Mechanical |
Housing |
Galvanized |
Body Color |
Black |
|
Dimensions(L*W*H) |
91*61.5*23.5cm |
|
Net Weight |
200g |
|
Environmental |
Operating Temperature |
0℃to +70℃ |
Relative Humidity |
0~95% (non-condensing) |
|
Storage Temperature |
-40º ~ 150º C |
|
FOLKSAFE has more than 10 years' experience in manufacturing and marketing of transmission products. All our products are certified with CE,FCC & RoHS.
