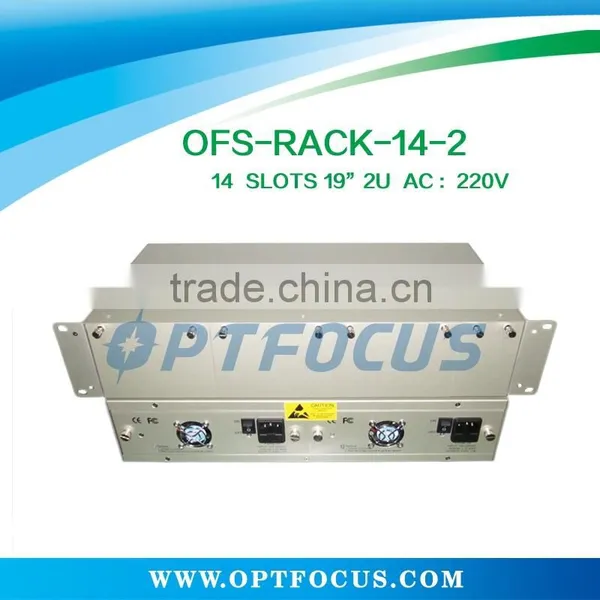

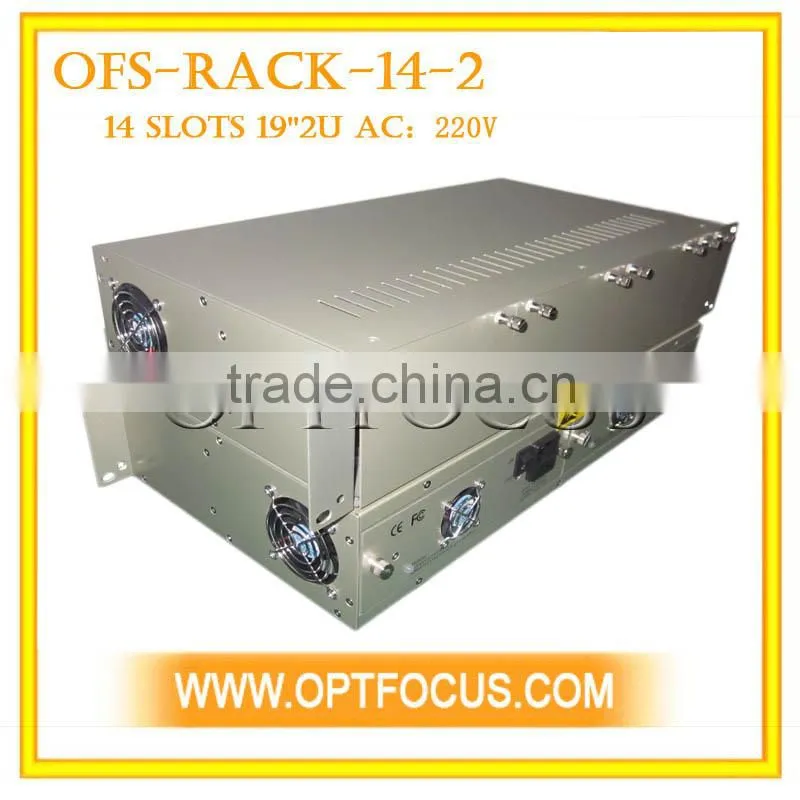

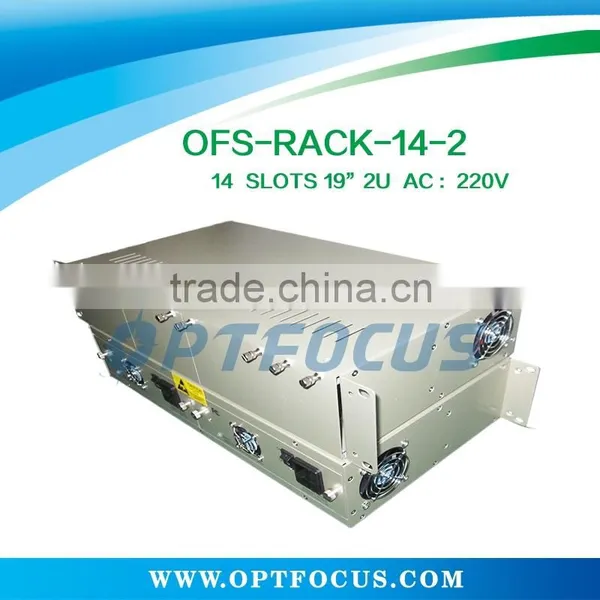

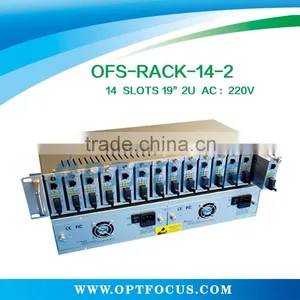

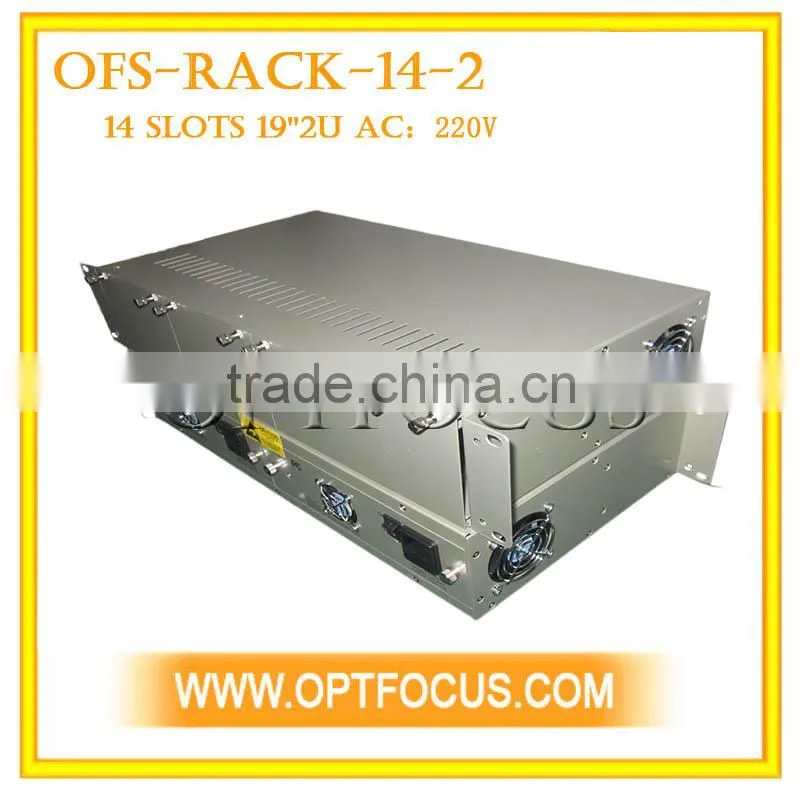

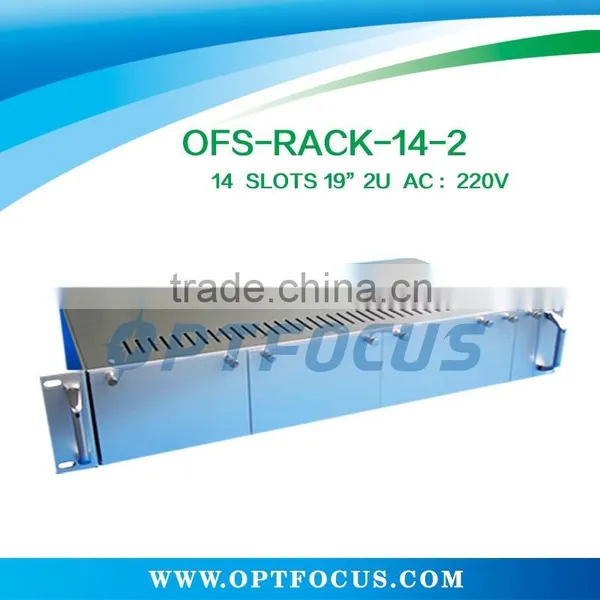

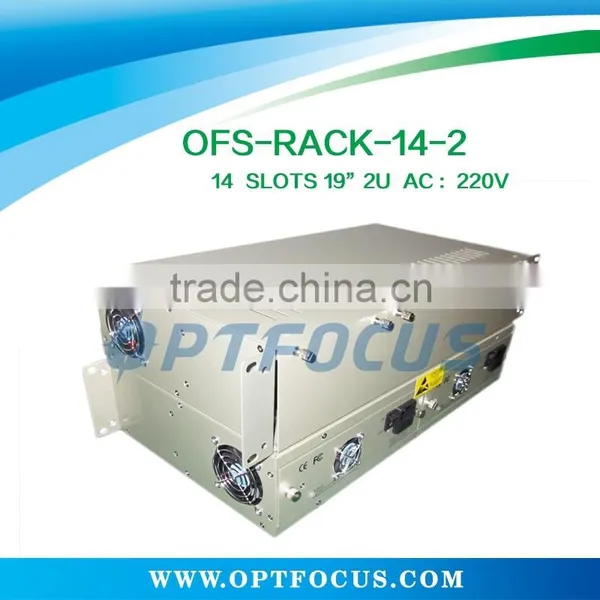

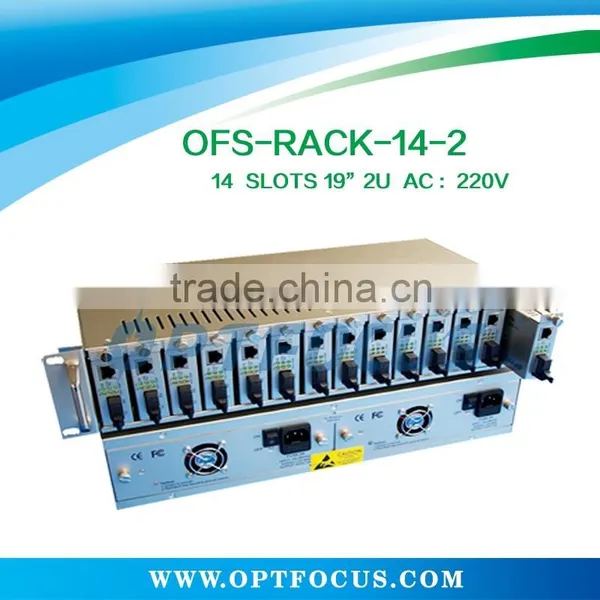

14 Slots Media Converters Rack
It is acceptable for the most 14 sets of 10M, 10/100M 10/1001000MMedia Converters within a rack-mountable chassis which is supplied with unified power. Installing at the center of network, the Rack not only reduce the links, simplify the structure, but also ease for management and maintenance.
Main features
The power of the Rack can be supplied by the type of single power or dual power. Adopting dual power supply, the load of each power can be reduced and the life of the power would extend. When one power supply is at fault, the other one can still work independently. It would enhance the reliability of the RACK.
Supplying the Converters or Powers to be plugged and played.
It is possessed of stable performance, large capacity of power supply, and ease for management and maintenance
2U high: 19-inch standard design
Technical Specifications
Capacity : 14 slots available
Power: Input: AC 100 ~ 260V, 50~60HZ
Output: DC +5V 12A
Power protection: protection from over voltage, over current and short circuit
Working temperature:0~50°C
Storage temperature:-20°C~70°C
Relative Humidity:5%~95%
Dimensions: 485 (wide) × 245 (length) × 90 (high) mm
Order Information
Model |
Product description |
OFS-RACK-14 |
14 Slots Media Converter Rack with two types of power supply by one or two powers. |
