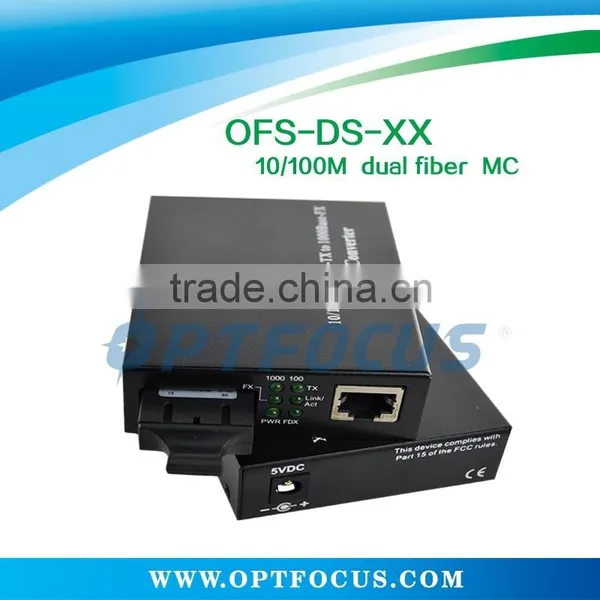

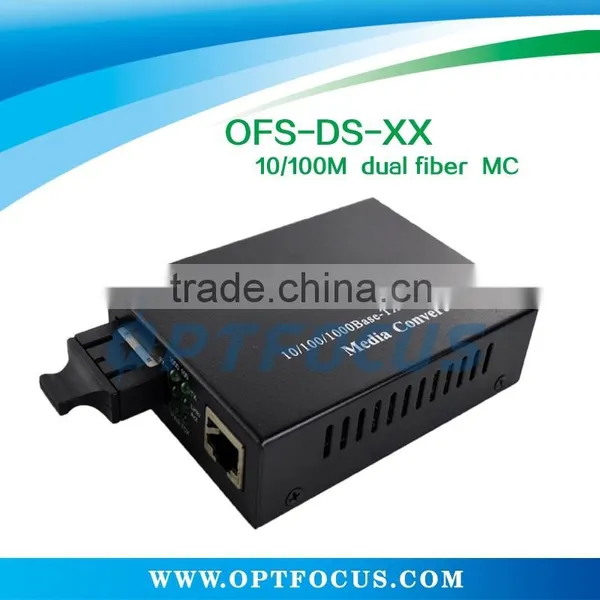

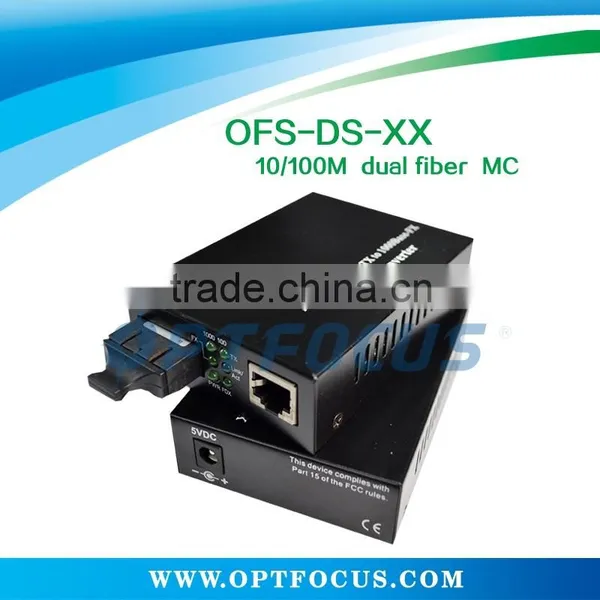

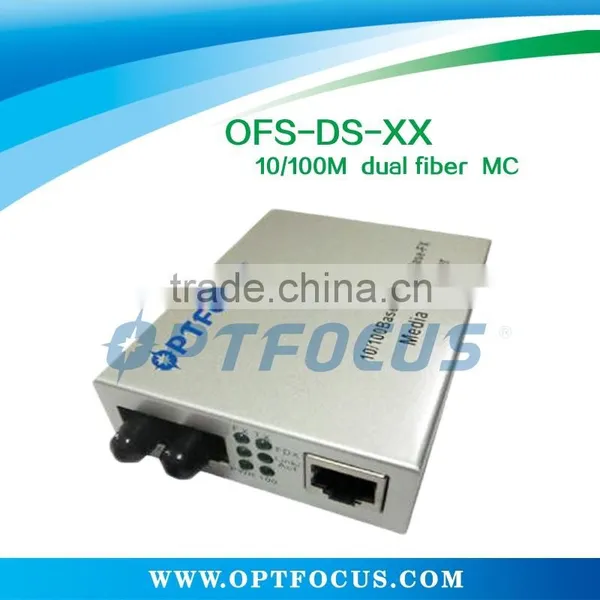

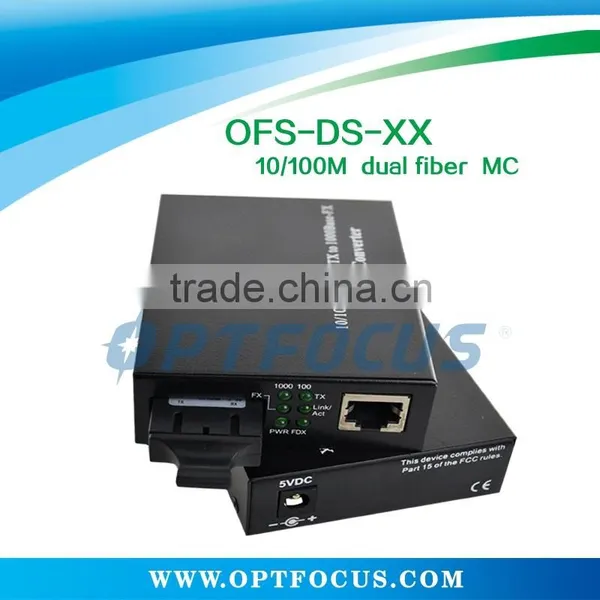

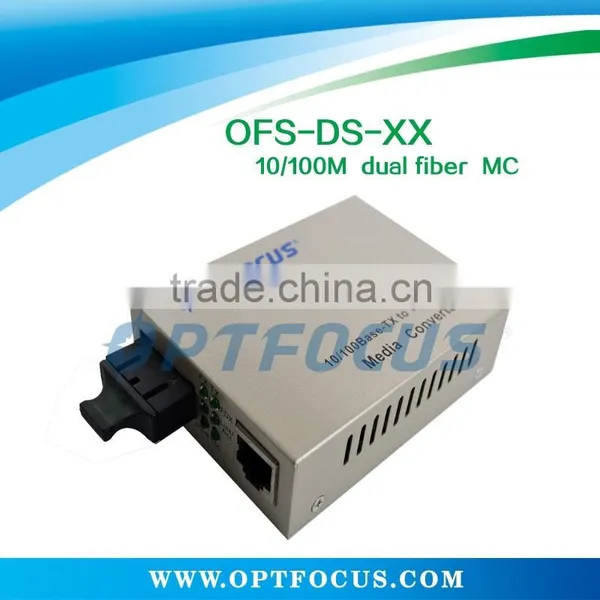

Help Center10/100M 20KM Dual Fiber Media Converter
Related Products
-
Gigabit Dual Fiber Multimode 15.4W 550M POE(PSE) Media ConverterNegotiableMOQ: 5 Pieces -
Gigabit Dual Fiber Multimode 15.4W 550M PSE Media ConverterNegotiableMOQ: 5 Pieces
-
10/1000M Singlemode Single Fiber Media ConverterNegotiableMOQ: 5 Pairs
-
14 Slot Media Converter RackNegotiableMOQ: 1 Piece
-
10/1000M Singlemode WDM 20KM Media ConverterNegotiableMOQ: 5 Pairs
OFS Series 10/100M Ethernet Fiber Media Converter
OPTFOCUS Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.OPTFOCUS Series Converters could be used alone;
The converters can be used as a stand-alone unit or as a slide in module to the OPTFODUS Media Converter Chassis, OFS-RACK-14. As the other OPTOFUS OFS-Series media converters, they're hot swappable in MC-Chassis.
Main features
- Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard
- Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
- UTP port supports MDI / MDI-X auto crossover.
- Supporting flow control
- Supporting 1552 bytes packet
- Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
-
Data Transfer Rate: - TP: 10/100Mbps
- FX: 100Mbps
- Duplex mode support: - Full or half-duplex mode by Auto-Negotiation (TP) - Full or half-duplex mode by DIP-switch (FX)
- LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act
- Supports link fault pass through function.
- Design of internal or external power supply for selection by end-users
- Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt inductio.
Application
Standalone and Centralized Management Media Converter Installation
Affording the current network grows and expanding, the OFSDM/DS provide advanced Media conversion technology to fill this kind of demand. The OFSDM/DS series Media COnverter provide the diverse fiber connecting types of options to meet different network applications. It is very flexible for OFSDM/DS to work as a standalone device or install into the central Standard Media converter chassis for centralized power provide. The OFSDM/DS is ideal solution for building a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) and FTTB (Fiber to the Building) for ISPs, campuses and enterprises.
Technical Specifications
- Operating standard: IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-TX/FX Fast-Ethernet IEEE802.3x
- MAC address table: 1K
- Data Buffer :128Kb RAM
- Connector: UTP: RJ-45,10/100Mbps; Fiber: SC,100Mbps
- Cable: UTP: Cat. 5 UTP (the max distance up to100m) Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
- Flow control : Full Duplex:IEEE802.3x Half Duplex:back pressure
- LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
- Power :Input:AC 110~265V or DC:-36V~-72V Output:DC 5V 1A
- Conversion mode: Medium conversion
- MTBF: 80,000 hours
- Ambient temperature:0 ~ +50℃
- Storage temperature:-20 ~ +70℃
- Humidity:5% ~ 95%
- Dimensions: Power external: 26 (high) x 70 (width) x 94 (length) mm Power internal : 30 (high) x 110 (width) x 140 (length) mm
- Weight: Power external: 0.3kg Power internal: 0.6kg
Fiber Optic Information
Type |
Connector |
Fiber type |
Wavelength |
Max. distance |
TX power |
Sensitivity |
Link Budget |
OFS-DS-25 |
SC |
singlemode |
1310nm |
25km |
-14~-8dBm |
-32dBm |
18dBm |
OFS-DS-40 |
SC |
singlemode |
1310nm |
40km |
-8~-3dBm |
-33dBm |
25dBm |
OFS-DS-60 |
SC |
singlemode |
1310nm |
60km |
-3~0dBm |
-36dBm |
33dBm |
OFS-DS-80 |
SC |
singlemode |
1550nm |
80km |
-10~-5dBm |
-35dBm |
25dBm |
OFS-DS-100 |
SC |
singlemode |
1550nm |
100km |
-5~0dBm |
-36dBm |
31dBm |
OFS-DS-120 |
SC |
singlemode |
1550nm |
100km |
-1~3dBm |
-36dBm |
35dBm |
Order Information
Model |
Product description |
OFS-DS-XX |
10/100M singlemode Converter, max optical fiber distance from 20 to 120 km, xx for the amount of distance. |
