Specifications
10/100/1000M sfp media converter 20km1.SFP port
2.ROHS,CE
3.strict quality control and fast delivery time (1-3working days
10/100/1000MEthernet Fiber Media Converters

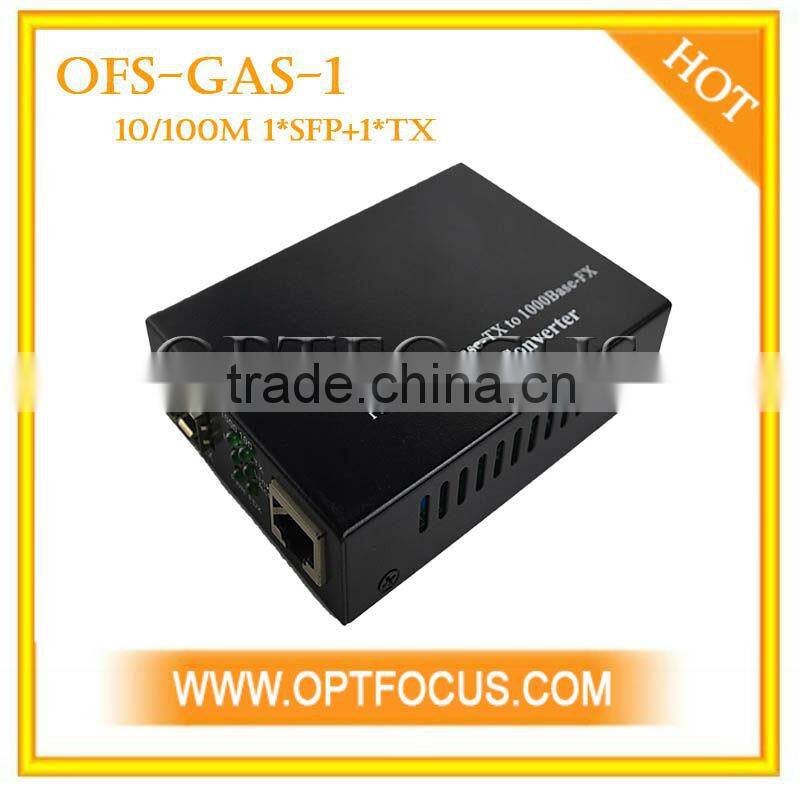

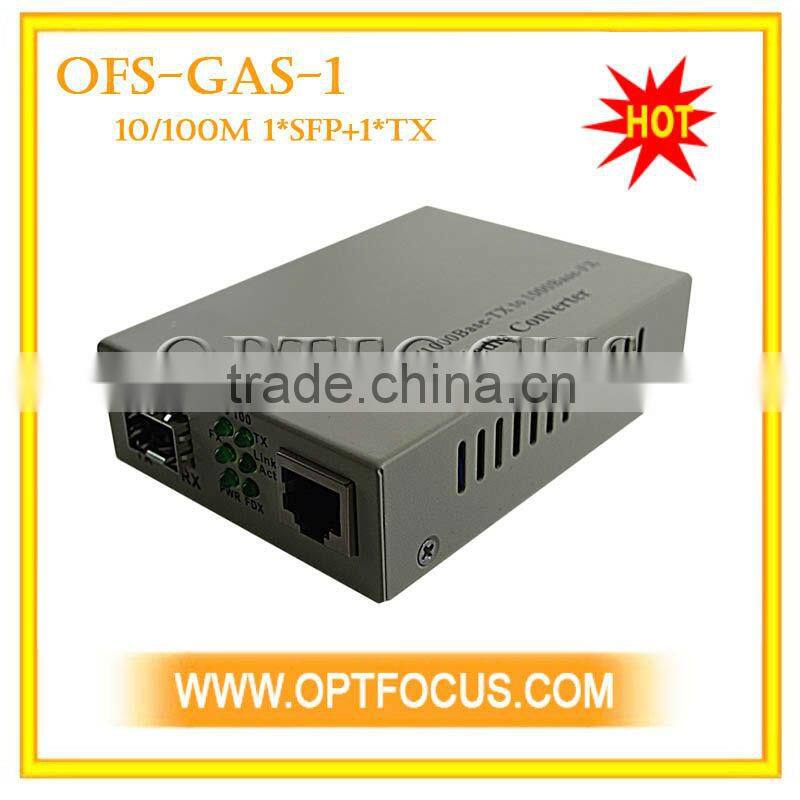

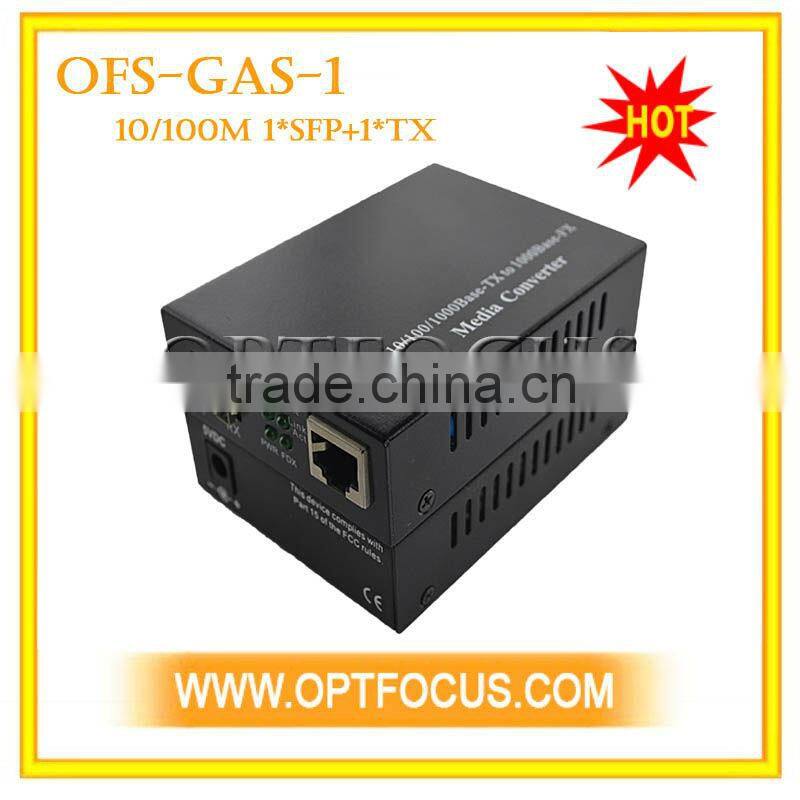

OFS-GAS-1 Gigabit Fiber Media Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX).
OFS-GAS-1 Gigabit Fiber Media Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link. The performance and quality of the products are excellent because of adopting latest Gigabit IC from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters. OFS-GAS-1 Gigabit Converters could be used alone; Converter Standalone should be inserted to 14 slots RACK supplied by OFS. Crop. which is suitable for the use of Network Centre.
10/100/1000M SFP Slots Media Converter(Without SFP Module)
Main features
Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
The UTP port supports the connection of MDI/MDI-X auto crossover.
Multimode Fiber: the max distance up to 224m/ 550m
Singlemode Fiber: the max distance up to 100km
Supporting the max 1536 byte Ethernet packet
Supporting flow control
Adopting internal power supply
Technical Specifications
Operating standards: IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX/HX
MAC address table: 4K
Data Buffer: 256K
Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: LC,1000Mbps
Cable :
UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 550/224m)
singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km)
Flow control
Full Duplex: IEEE802.3x
Half Duplex: back pressure.
Power: AC 220V(170-260V) 50Hz; DC 5V,1A
Ambient temperature:0 ~ +50°C
Storage temperature:-20 ~ +70°C
Humidity:5% ~ 90%
Dimensions:Internal Power:40 (high) x 110 (width) x 140 (length) mm
External Power:26 (high) x 70 (width) x 93 (length) mm
Fiber Information
Model |
Connector |
Fiber type |
Max distance |
Wavelength |
TX power |
Sensitivity |
Link Budget |
1000Base-SX |
LC |
Multimode |
224/ 550m |
850nm |
-11~-6dBm |
-18dBm |
7dBm |
1000Base-LX-10 |
LC |
Singlemode |
10km |
1310nm |
-12~-5dBm |
-21dBm |
9dBm |
1000Base-LX-30 |
LC |
Singlemode |
30km |
1310nm |
-8~0dBm |
-25dBm |
17dBm |
1000Baee-HX |
LC |
Singlemode |
70km |
1550nm |
-5~0dBm |
-25dBm |
20dBm |
Order Information
Model |
Product description |
OFS-GAS-1 |
10/100/1000M SFP Slots Media Converter, without SFP module |
SFP Module |
1.25G SFP module, multimode or singlemode or singlemode single fiber, 850nm, 1310nm, 1550nm |
