Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Internal Power 10/100M Media Converter

Internal Power 10/100M Media Converter

Name: Internal Power 10/100M Media Converter
Brand: Optfocus
SKU: 107904625
Availability: InStock

Internal Power 10/100M Media Converter thumbnail-1

Internal Power 10/100M Media Converter photo-1

Negotiable MOQ: 1 Pair (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Optfocus

Contact Supplier Request Quote Chat Now

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Optfocus

Specifications

Name : Internal Power Media Converter
Fiber type: Multimoede , singlemode
Connector: ST,SC. FC, SFP

Internal Power Media Converter

Specifications

1.10/100M + 1 100M Base-FX Media Converter
2. WDM and Dual Fiber available
3. 20-100KM
4. Internal Power supply

BI-DI 10/100M Media Converter

Features

Complies with IEEE802.3 and IEEE802.3u 10/100Base-TX and 100Base-FX
MTU size supported 1600 bytes maximum
Supports pure converter mode data forwarding for extreme low latency
Built in 128Kb RAM for data buffer
Supports modified cut-through frame forwarding for low latency
Optional forward fragments
10/100Mbps and full/half duplex automatically configure in TP port
Supports end fault function (optional)

MDI/MDI-X Auto Negotiation
Support EEPROM configuration
LED Indicators: POWER, FX LINK/ACT, 100, TP LINK/ACT, FDX/COL.
FCC Class A & CE approved
LLR, LFP - Link Loss Return (LLR), Link Failure Pass (LFP) features supported
RoHs compliant
Only 1 fiber used instead of 2 - WDM BiDi technology
Stainless steel parts (value added feature)
Standalone, Wallmount or Hotpluggable in 19' chassis - universal design

Introduction

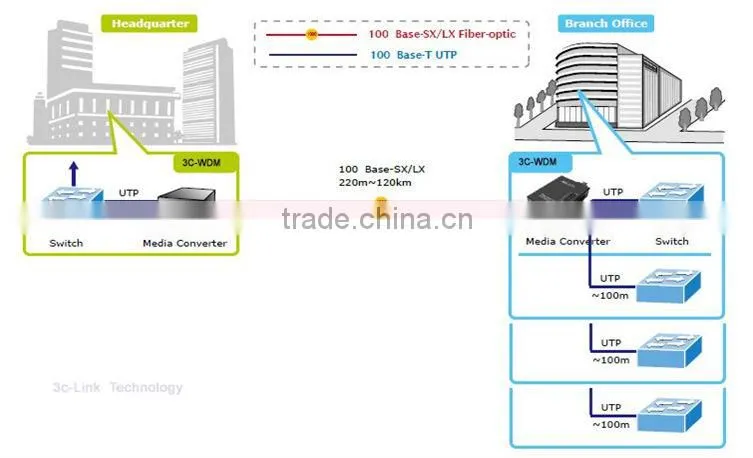

The 3C-WDM-100-35-20 &3C-WDM-100-53-20 converter complies with IEEE 802.3 standards. It is designed to convert data signal between 10/100 Base-TX and 100 Base Fx Fast Ethernet. The media converter is connected between Fiber cable and twisted cable segments with network operating smoothly.

This converter can be used as a standard alone unit or a slide-in module to fit the 19 converter rack.
Adopting WDM technology, 3C-WDM-400-35-20 &3C-WDM-400-53-20 takes only one fiber cable to transmit and receive data, which will save half cabling cost for you.

BiDi WDM - Wave Division Multiplexing Technology allows you use just a 1 fiber cable instead of 2, because transmit and receive channels are separated by different wavelenghts.
Also, it does not matters, what type of TX/RX are you using at central side or remote side, they will always operate smooth
