OFS-WS01/02 Series

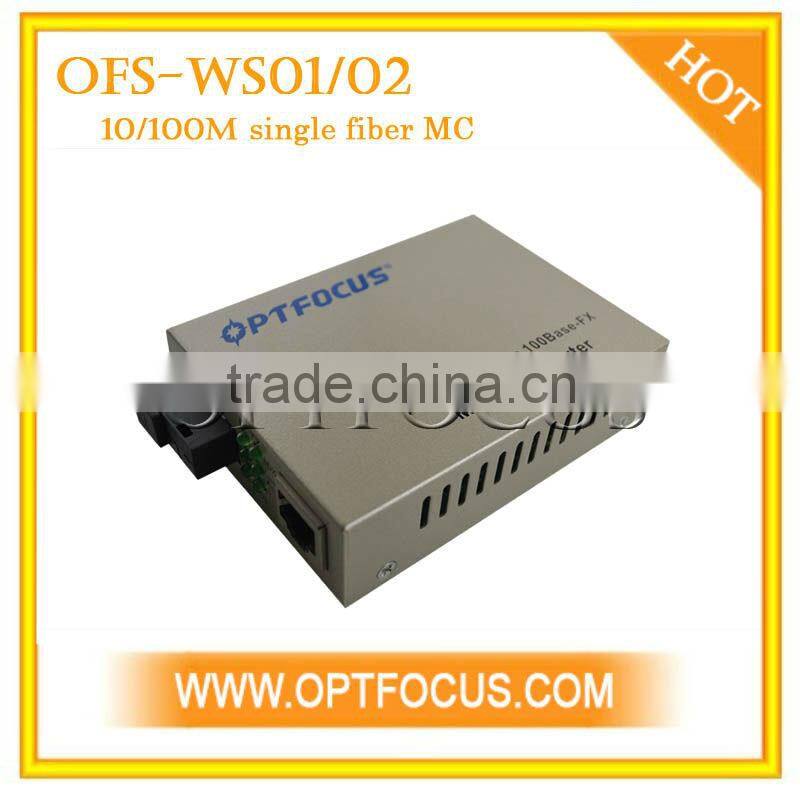

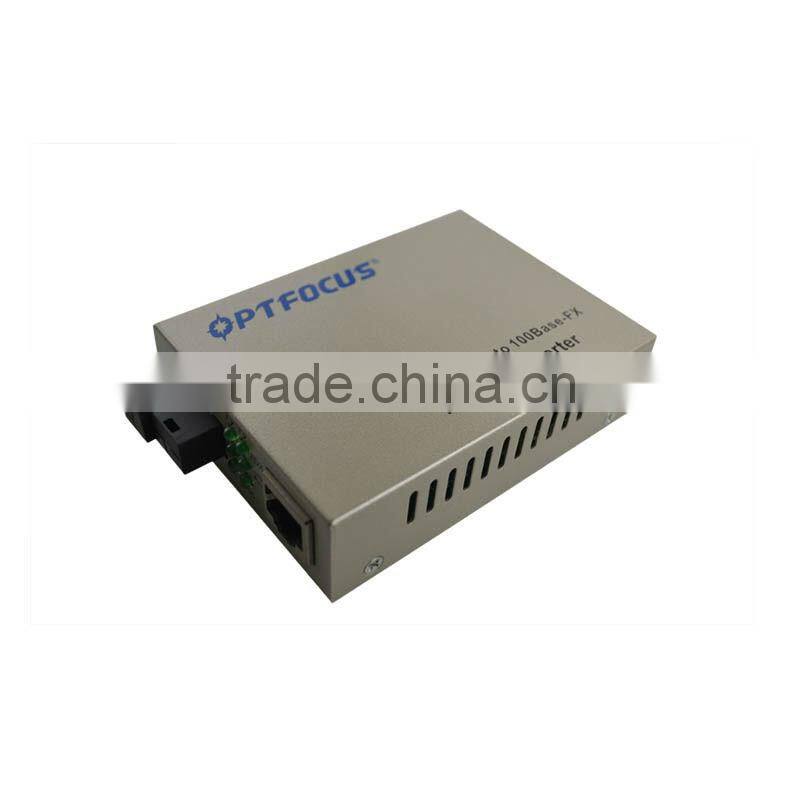

10/100M Singlemode Single Fiber Media Converter
OFS-WS01/02 series 10/100M Singlemode Single Fiber Medi



  OFS-WS01/02 Series

Main features

    The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

  Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex

   The UTP port supports MDI/MDI-X auto crossover.

   Supporting 1600 bytes packet for management.

    Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.

    Indicator function of link fault (LFP): When optical fiber is at fault, the converter could stop all the link.

    Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.

Technical Specifications

   Operating standards:IEEE802.3u,10/100Base-TX and 100Base-FX;

   MAC addresses table: 1K

   Data buffer: 128K.

   Connectors: UTP Connector: RJ-45, 10/100Mbps;  Fiber Connector: SC, 100Mbps

   Cable:

UTP: Cat. 5 UTP cable (the max distance up to100m)

Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)

  Flow Control

  Full Duplex: IEEE802.3x

  Half Duplex: back pressure

Fiber Optic Information

Type	connector	Max distance	Wavelength	TX power	Sensitivity	Link Budget
OFS-WS01/02-20	SC/FC/ST	20km	1310/1550nm	-14~-6dBm	-32dBm	18dBm
OFS-WS01/02-40	SC/FC/ST	40km	1310/1550nm	-8/-9~-3dBm	-35dBm	27/26dBm
OFS-WS01/02-60	SC/FC/ST	60km	1310/1550nm	-5/-7~0dBm	-37dBm	32/30dBm
OFS-WS01/02-80	SC/FC/ST	80km	1310/1550nm	-3/-5~2dBm	-37dBm	34/32dBm

Order Information

Model

Product description

OFS-WS01/02 -xx

10/100M Singlemode Single Fiber Converters must be used and orderd in couples. One set of WS01 must be connected with another set of WS02 for using. WS01 transmitted optical wavelength 1310nm, receive optical wavelength 1550nm; WS02 transmitted optical wavelength 1550nm, receive optical wavelength 1310nm.  The max distance of fiber is up to 20, 40, 60, 80 ,100,120km.  XX is the amount of distance.
