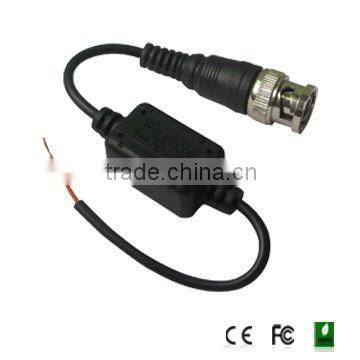

folksafe waterproof video balun via UTP cat5e/6, Model FS-4200SR
•Full-motion color video signal up to 1300ft(400m) and
monochrome (B&W) up to1950ft(600m) via UTP cat5e/6
•NTSC, PAL & SECAM video format compatible
•Real-time transmission
•No power required
•Exceptional interference rejection
•Built-in TVS(Transient Voltage Suppressors) for surge protection
•Lightning protection design Grade:Ⅲ
•50 dB crosstalk and noise immunity
•Compact size and easy installation
•ABS engineering plastic housing
The FS-4200SR video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired(UTP) cable. Baseband (composite) signals of any type are supported.

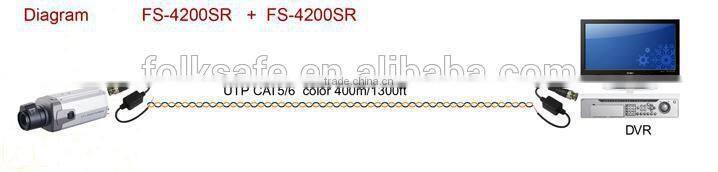

The FS-4200SR video balun is waterproof and able to be used outside. Because of ultra miniature size, FS-4200SR greatly save space during installation. Worked in pairs, FS-4200SR eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 1300ft (400m).
The superial interference rejection and low emissions of the FS-4200SR allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. FS-4200SR has built-in surge suppression to protect video equipment against
damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
Product Name |
Single Channel Passive Video Transceiver (FS-4200SR ) |
|
Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
|
Video |
Video Format |
PAL, NTSC, SECAM |
|
Operating Frequency |
DC to 5MHz |
|
Max Distance |
UTP Category 5e (24AWG) Color: 1300ft(400m) B&W: 1950ft(600m) |
|
Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
|
Impedance |
Coax, Male BNC 75Ω unbalanced |
|
|
UTP, two coax pigtail 100Ω balanced |
|
Attenuation |
1.5 dB typ Max |
Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
|
Category Type |
2 or better |
|
Impedance |
100 ± 20 ohms |
|
DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
|
Differential Capacitance |
19 pF/ft max (62 pF/m max) |
Power |
No external power required |
|
Connector |
Video input/output |
Male BNC connector |
|
Video input/output |
Two coax pigtail to be soldered |
Protection |
Surge Protection |
renewable solid state surge protection |
|
Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
Mechanical
|
Housing |
ABS engineering plastic |
|
Body Color |
Black |
|
Dimensions(L*W*H) |
14.5*28.5mm (BNC connector & cable excluded) |
|
Net Weight |
20g |
|
Environmental
|
Operating Temperature |
-20º ~ 70º C |
|
Relative Humidity |
0~95% (non-condensing) |
|
Storage Temperature |
-40º ~ 150º C |
FOLKSAFE has more than 10 years' experience in manufacturing and marketing of transmission products. All our products are certified with CE,FCC & RoHS.
