Specifications
The FS-2416R video balun hub is a active (amplified) device that allows the transmission of real-time CCTV video signal via cost16-Channel Active Video Receiver Hub Features of 16-Channel Active Video Receiver Hub
16-Channel Active Video Receiver Hub
•Color video up to 7872ft(2400m) with active transmitter via UTP cat5e/6 cable
•Color video up to 5904ft(1800m) with passive transmitter via UTP cat5e/6 cable
•Automatic G16-Channel Active Video Receiver Hubain Control; Automatically adjust the distance
•Automatically adjust brightness,sharpness & saturation to reach optimum effect
•Power Polarity Automatic Identification; positive/negative pole able to be reversal
•Video Polarity Automatic Identification; positive /negative pole able to be reversal
•100-240V power supply, 50~60Hz
•Female BNC connector
•RJ45 and detachable terminal blocks for UTP cat5e/6
•Video Present LED indicators for each channel
•Compatible with qualified UTP camera
•Exceptional interference rejection •70 dB crosstalk and noise immunity
•Full ground-loop immunity •Built in TVS(Transient Voltage Suppressors) for surge protection
•Lightning protection design Grade: V
•Compact size and easy installation •High-Density 19", 1U rack mount, wall mountable and desk installation via 4 rubber feet •Black galvanized housing
Overview of 16-Channel Active Video Receiver Hub
The FS-2416R video balun hub is a active (amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired(UTP) cable. Baseband (composite) signals of any type are supported.
The FS-2416R is a compact unit. RJ45 and pluggable screw terminal blocks of FS-2416R allows easy connection of UTP cable input. It receives 16 channel live CCTV video signal from camera end via 4 UTP cable at distance up to 7872ft(2400m) when used with active video transmitter. The transmission distance
reaches to 5904ft(1800m) when used with passive transmitter.
The FS-2416R has AGC function, which means the brightness,sharpness & saturation can be automatically adjusted as per the transmission distance. It is built-in surge suppression to protect video equipment against damaging voltage spikes. Its Integrated Ground Loop Isolation prevents annoying "hum-bars" common with long distance installations and its excellent crosstalk and noise immunity and provides quality video up to the maximum distance.The superior interference rejection and low emissions of the FS-2416R allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared
or existing cable plant.
Applications of 16-Channel Active Video Receiver Hub
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
Wire and Cable Recommendations of 16-Channel Active Video Receiver Hub
FS-2416R is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG..Individually shielded pairs should be avoided, as they reduce the operating range of the systems drastically. Multi-pair cable (25-pair or more) with an overall shield are acceptable. Video signals can coexist in the same wire bundle as telephone, datacom, or low-voltages power circuits. While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair.
For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.
Technical Specifications 16-Channel Active Video Receiver Hub
Model |
FS-2416R |
|
Product Name |
16-Channel Active Video Receiver Hub |
|
Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
|
Video |
Video Format |
PAL, NTSC, SECAM |
|
Operating Frequency |
Signal Band: 250MHz(-3db) Balance Band: DC to 6MHz |
|
Max Distance |
UTP Category 5e (24AWG) color: 7872ft(2400m)) with active transmitter;5904ft(1800m)) with passive transmitter |
|
Common-mode/Differential-mode rejection |
75 dB typ |
|
Attenuation |
1.5 dB Max |
|
Impedance |
Coax, female BNC 75Ω unbalanced UTP, screw terminal block or RJ45 100Ω balanced |
|
Video Distance Adjustment |
Automatic Gain Control (AGC) |
LED Indicators |
Red: Power-On Yellow : “Active” signal present |
|
Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
|
Category Type |
2 or better |
|
Impedance |
100 ± 20 ohms |
|
DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
|
Differential Capacitance |
19 pF/ft max (62 pF/m max) |
Power |
Adaptive Voltage Arrange |
AC100-250V, 50~60Hz |
|
Power Consumption |
<1500mW |
Connector |
Video Input |
pluggable screw terminal block and RJ45 for UTP ( select one connection) |
|
Video Output |
Female BNC Connector; dual video output |
Protection |
Surge Protection |
renewable solid state surge protection |
|
Ground Isolation |
Ground connection available for STP or Ground loop removal |
|
Video Output |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
Video Input |
2KV(different mode), 4KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
Video Input Protection for Over Current |
Protection for over 100mA current Max |
Mechanical |
Housing |
Galvanized |
|
Body Color |
Black |
|
Dimensions(L*W*H) |
430*82.5*44.5mm (BNC connector & mounting bracket excluded) |
|
Net Weight |
1260g |
|
Environmental
|
Operating Temperature |
-20º ~ 70º C |
|
Relative Humidity |
0~95% (non-condensing) |
|
Storage Temperature |
-40º ~ 150º C |

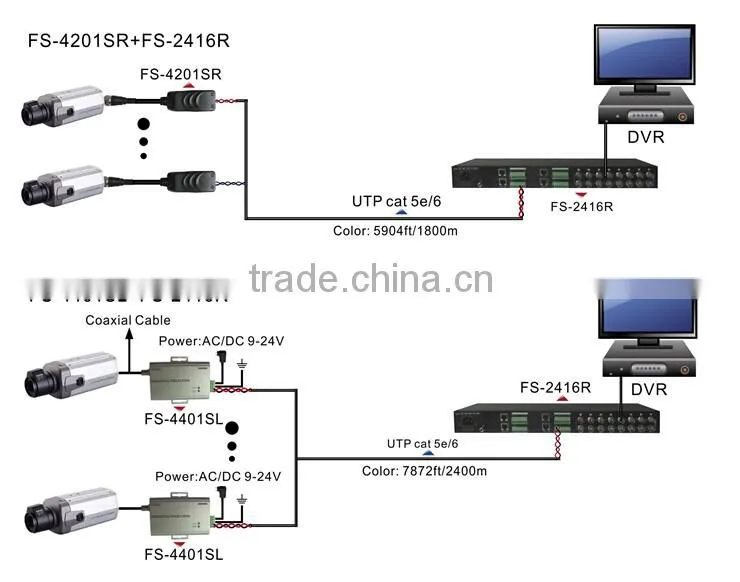

Application Diagram of 16-Channel Active Video Receiver Hub

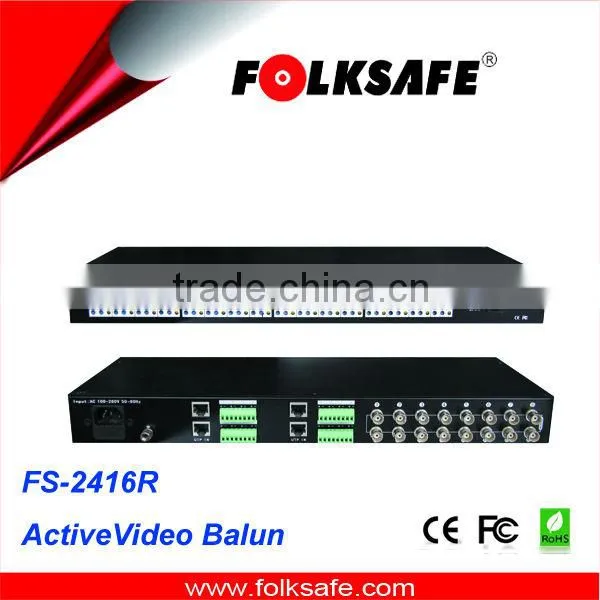

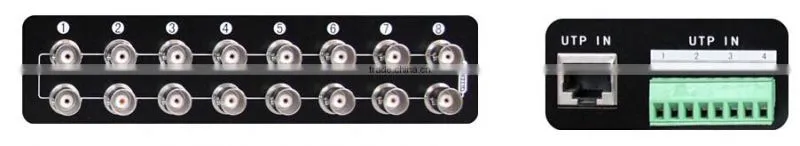

Picture of 16-Channel Active Video Receiver Hub
