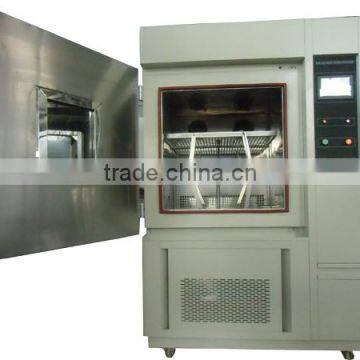

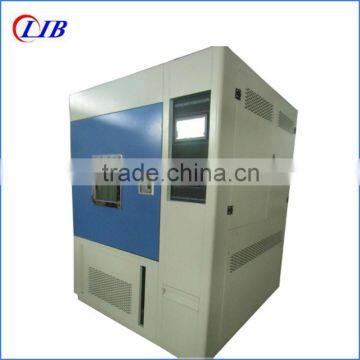

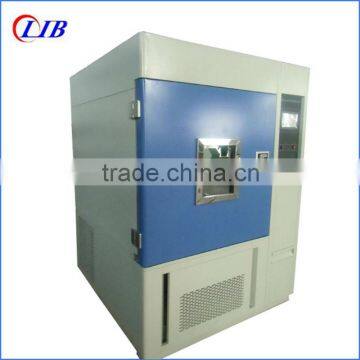

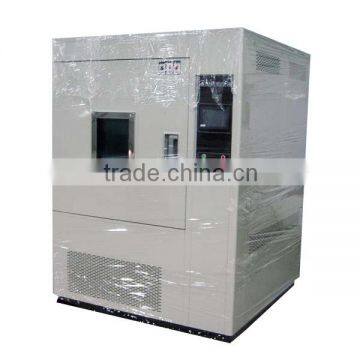

Simulated Solar Radiation Environmental Test Chamber/xenon lamp price/sun xenon test chambers
| Model | XL-500 | XL-750 |
| Internal dimensions (mm) | 500*760*500 | 950*950*850 |
| Overall dimensions (mm) | 1200*1150*1480 | 1280*1320*1980 |
| Specimen Capacity | 28 | 34 |
| Holder size (mm) | 80*150 | 80*150 |
| Technical structure | ||
| Distance between sample and lamp | Approx. 350mm | Approx. 450mm |
| Irradiance Ranges W/m2 | 100~1200 W/m2@ 280nm~800nm | |
| Xenon lamp power | 4500W(Lamp life time: 1600 hours) | |
| Xenon Arc Lamp | 1 Water Cooled xenon arc lamp with inner quartz and outer borosilicate filter. | |
| Temperature range | Ambient ~100℃ | |
| Relative Humidity range | 50~98% R.H | |
| BPT Temperature | 35 ~85℃ | |
| Water spray time | 1~9999H59M, settable | |
| Water spray cycle | 1~240 minute, interval settable | |
| Control system | ||
| Controller | programmable color display touch screen controller | |
| PC Link with software, R-232 interface | ||
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Humidity Sensor | Dry and wet bulb sensor | |
| Humidity Resolution | ± 1%RH | |
| Radiometer | Tolerance: ±5% | |
| Heating system | Independent Nichrome electronic heating system | |
| Cooling system | French TECUMSEH compressor | |
| Humidification system | External isolation, stainless steel surface evaporation humidifier | |
| Water supply system | Automatic water supply, Water purification system, Water save | |
| Circulatory system | Cold resistance and low noise centrifugal fan | |
| Material | ||
| Exterior material | Steel Plate with protective coating | |
| Interior material | SUS304 stainless steel | |
| Insulation window | Double thermo stability silicone rubber sealing | |
| Environmental conditional | 5℃~+30 ℃ ≤85% RH | |
| Nominal power | 8000W | 10600W |
| Power Supply | AC380V 50HZ | AC380V 50HZ |
Design and Construction
Test area and Sample Holder
Test area is made of stainless-steel
360°Rotative Sample Holder
Have Black Thermometer.

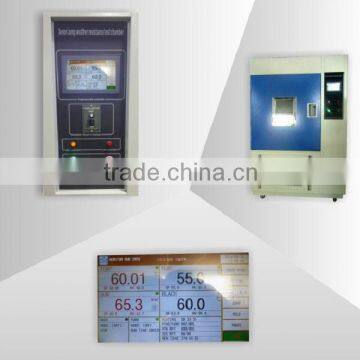

Control Panel
5.7" programmable color touch display controller
Setting mode: touching type
Program: 100 groups in 999 sections
R-232 interface
PC Link with software

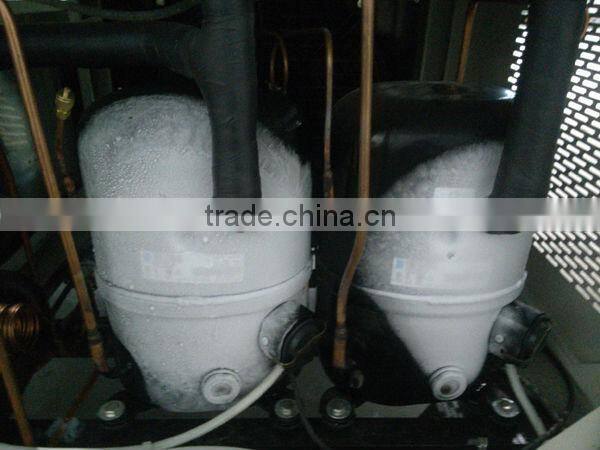

Cooling system
TECUMSEH from France
Environment friendly Refrigerant R404A & R23
Humidity system
External isolation, stainless steel surface evaporation humidifier

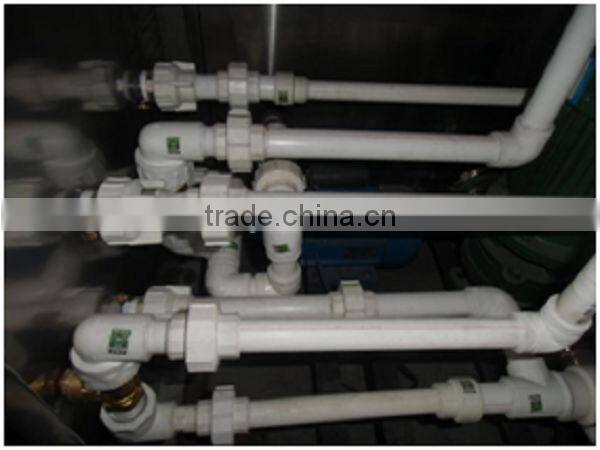

Water supply
Automatic water supply, Water purification system, Water saving
Water tank size is about 50 Liter.
Radiometer & Sensors
Temperature sensor PT-100 A class
Resolution: ± 0.001 ℃
Humidity sensor Dry and wet bulb
Resolution: ± 1%RH
Irradiance Radiometer
Tolerance: ±5%
Xenon arc Lamp
Chamber equipped with 1pc of Xenon lamp, which is water cooling.
Xenon Lamp Power is 6000W.
Xenon lamp service life is 1600hours.
Over 1600 hours, must change new lamp.
Air cooling lamp (option).
Safety protection
Humidifier dry-combustion protection
Independent over-temperature protection,
water shortage protection
Over-current protection
Refrigerant high-pressure protection switch
Over-current circuit breaker
Earth leakage protection and so on

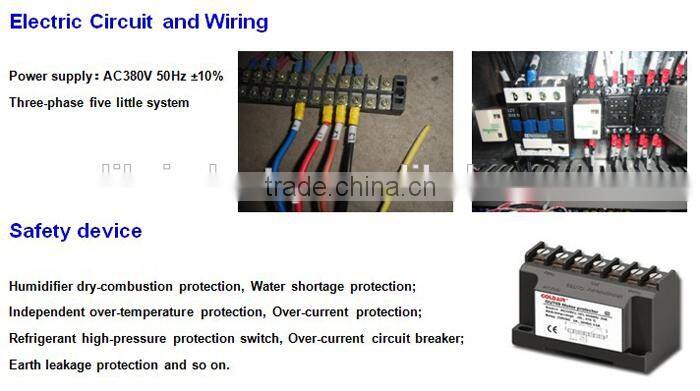

Power supply and Wiring
380V, 50 Hz 10% +/-
Three-phase five little system
Export Standard Wooden Package
Packed in standard export packing material.
Can be used for Sea, Air,Railway, Truck transportation.
Model |
Packing Dimension |
Gross Weight |
XL-500 |
1800*1500*2100 mm |
650kg |
XL-750 |
1850*1900*2200 mm |
780kg |
Three years Warranty ; Lifelong Service
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 25 days , if you need in urgent , we can speed up the production ,will short to 15 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
