Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Cathodic Protection Cable Kynar/HMWPE Cable
Cathodic Protection Cable Kynar/HMWPE Cable
US$ 0.53 - 20.7
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Hengfei
Model Number:
KYNAR/HMWPE
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or according to your requirement
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1X25mm2 HMWPE Cable for Cathodic ProtectionUS$ 0.45 - 19.6MOQ: 500 Meters -
1X35mm2 HMWPE Cable for Cathodic ProtectionUS$ 0.45 - 19.6MOQ: 500 Meters
-
1X50mm2 HMWPE Cable for Cathodic ProtectionUS$ 0.45 - 19.6MOQ: 500 Meters
-
1X70mm2 HMWPE Cable for Cathodic ProtectionUS$ 0.45 - 19.6MOQ: 500 Meters
-
1X10mm2 HMWPE Cable for Cathodic ProtectionUS$ 0.45 - 19.6MOQ: 500 Meters
Place of Origin
Hunan, China
Brand Name
Hengfei
Model Number
KYNAR/HMWPE
Conductor Material
Copper
Insulation Material
Other, polyvinylidene fluoride(KYNAR)
Jacket
Other, high molecular weight polyethylene
Number of Conductors
Single core
Application
deep anode groundbed installations
Specifications
1.StandardConductor:ASTM Specification B-8,insulation: ASTM D-1248
2.Certificate:CQC ,3C
3.Strict QC

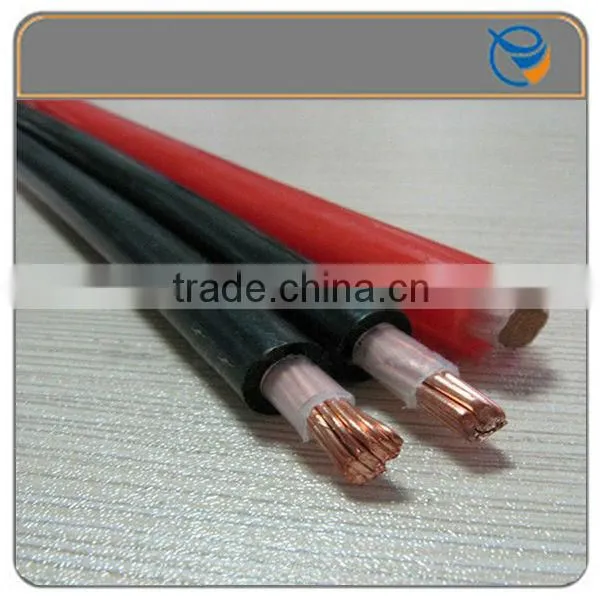

Cathodic protection cable Kynar/HMWPE cable
Application
A direct earth burial, DC lead, cathodic protection cable for use in deep anode groundbed installations, designed to withstand corrosive gases.
Standards
1.Conductor
Stranded bare copper conductor conforms to ASTM Specification B-8.
2.Insulation
A homogeneous wall of natural PVDF fluoropolymer (Kynar) shall be extruded over the conductor
3.Jacket
Insulation is high molecular weight polyethylene conforming to ASTM-D-1248, Type 1, Class A, Category 5, Grades E4 and E5. Tensile Strengths Jl, J3. Available with high density polyethylene (Types II, III, IV) Class B and C (all colors). Surface printed. Custom printing available.

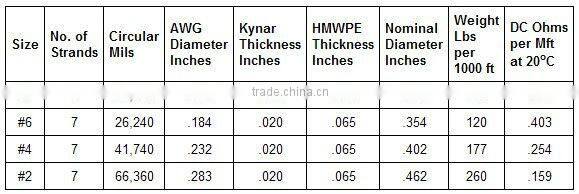

Tecnical Data
