XLPE Insulated Steel Tape Armored Power Cable
Application
Being used for power transmission and distribution line with voltage rated at 6/10kv,8.7/10kv,8.7/15kv,12/20kv 21/35kv,26/35kv.

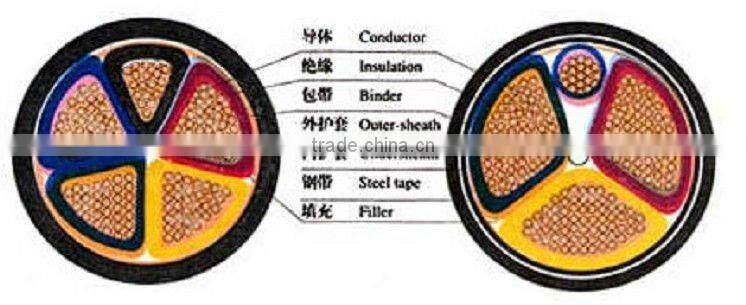

Construction
Operating Features
1)The maximum conductor operating temperature: 90°C
2)During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C;
3)Environment temperature should be no lower than 0°C for laying the cable.
Type ,Description and Main Application
Type |
Description |
Main applications |
|
YJV22 YJLV22 ZR-YJV22 ZRYJLV22 |
Flame retardant and non-flame retardant Cu or AL conductor XLPE insulated PVC sheathed power cable |
For laying in ground,able to bear externalme-chanical fores,but unable to bear large pulling force |
Rated Voltage, Core Numbers & Nominal Cross-Section Area
|
Uo Um Area(mm²) |
6.0/6 |
8.7/10 |
12.0/20 |
18/20 |
21/35 |
26/35 |
|
6.0/10 |
8.7/15 |
18/30 |
|||||
Core |
1 |
25-500 |
35-500 |
35-500 |
50-500 |
50-500 |
50-500 |
3 |
25-300 |
35-300 |
35-300 |
50-300 |
50-300 |
50-300 |
|
