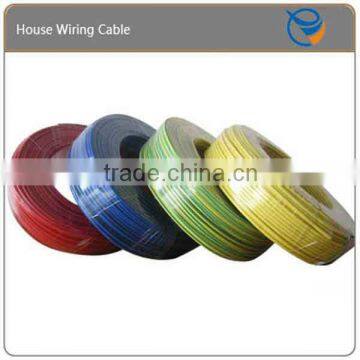

House Wiring Electric Wire 1.5mm
USD $0.15 - $25.9
/ Meter
100 Meters(Min.Order)
- Guangzhou or according to your requirement
- T/T
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Hengfei | |
| Model Number | BV,BVR | Type | Insulated | |
| Application | Other, Building,housing | Conductor Material | Copper | |
| Conductor Type | Other, Solid or stranded | Insulation Material | PVC |
Product Description
Specifications
1.Standard:IEC602272.Certificate:CQC,3C
3.Strict QC
4. 99.95% purity copper conductor
5.Free sample
House Wiring Electric Wire 1.5mm
Application
The product is applied to AC rated voltage 450/750V and below power plant laid(fixed)wiring. It's widely used in low voltage power lines,normal electrical equipment, instrumentation and telecommunication equipments.
Technical data
Rated voltage: 300/500V,450/750V
Highest working temperature of conductor: 90°C
Laying temperature:above 0°C
Minimum bending radius:6D
Product description
| Type | Description | Rated Voltage |
| 602271EC01(BV) | General purpose single-core hard conductor non-sheath cable | 450/720V |
| 602271EC05(BV) | Internal wifing conductor temperature 70oC single-core solid conductor non-sheath calbe | 300/500V |
| 6002271EC07(BV-90) | Internal wifing conductor temperature 90oC single-core solid conductor non-sheath calbe | 300/500V |
| 600271EC10(BVV) | Light-type PVC sheath cable | 300/500V |
| BLV | Aluminum core PVC insulation cable | 450/750V |
| BVR | Copper core PVC insulation flexible cable | 450/750V |
| BLVV | Aluminum core PVC insulation PVC sheath round cable | 300/500V |
| BVVB | Copper core PVC insulation PVC sheath flat cable | 300/500V |
| BLVVB | Aluminum core PVC insulation PVC sheath flat cable | 300/500V |
| 602271EC02(RV) | General purpose single-core flexible conductor non-sheath cable | 450/750V |
| 602271EC06(RV) | internal wiring conductor temperature 70oC flexible conductor non-sheath cable | 300/500V |
| 602271EC08(RV-90) | Internal wiring conductor temperature 90oC flexible conductor non-sheath cable | 300/500V |
| 602271EC52(RVV) | Light-type PVC sheath flexible cable | 300/300V |
| 6002271EC53(RVV) | Normal PVC sheath flexible wire | 300/500V |
| 602271EC56(RVV-90) | Conductor temperature 90oC of heat-resistance light-type PVC sheath flexible wire | 300/300V |
| RVVP | PVC insulation shield PVC sheath flexible cable | 300/300V |
| RVS | PVC insulation stranded connection flexible wire | 300/300V |
